Example 2 (PAGE 2, COMP):

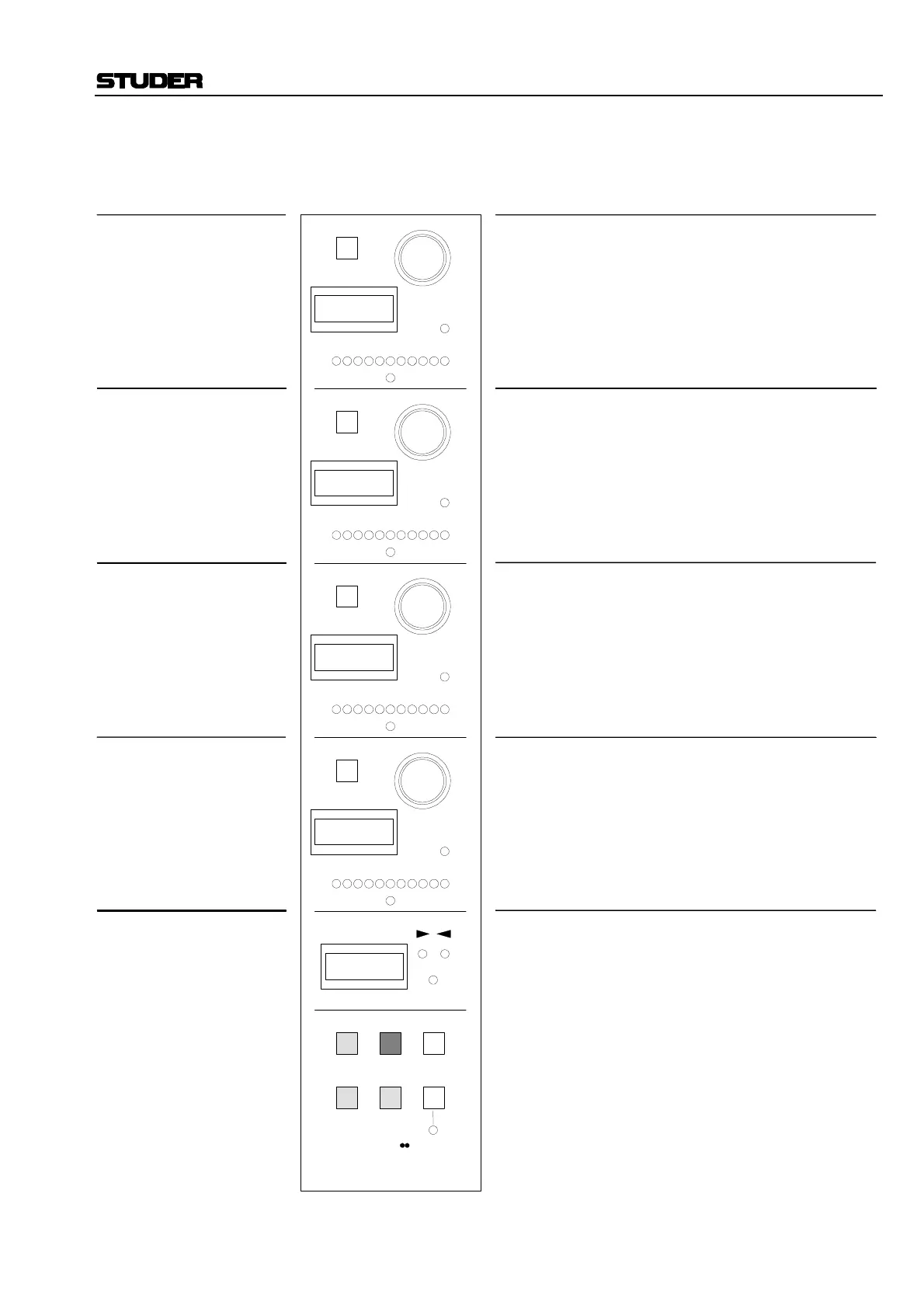

Available operating elements and their function
Display
=
Indication of Limiter/Compressor selection
LIM; limiter parameters (page 1)
COMP; compressor parameters (page 2)
CLVL; level/gain parameters (page 3)
KEY; common parameters for limiter and
compressor (page 4)
Dynamics control parameter (Limiter/Compressor)
RELEASE TIME/HOLD
ATTACK TIME
THRESHOLD
RATIO
SW key
Rotary encoder
LED bar
Center LED
Display
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
=
=
=
=
=
HOLD function ON/OFF; ON=150 ms/OFF=0 ms
Release time adjustment; 100 ms to 10 s
Dot display, indicates adjusted release time
no function
RLSE; label of control parameter
100m; release time 100 ms
Compressor ON/OFF
Ratio adjustment; 1:1 to 1:20
Bar display for ratio; empty bar: 1:1, full bar: 1:20
ON if ratio 1:1 is set
RTIO; label of control parameter
1/3; ratio 1:3
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
2
1
LAST MODE
4
3
PAGE
FREEZE
COMP
RTIO
THRS
ATCK
RLSE
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
Attack time adjustment; 0.2 to 20 ms
Dot display, indicates adjusted attack time
no function
ATCK; label of control parameter
0.2; attack time 0.2 ms
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
Threshold adjustment; 0 to –96 dBFS in 1 dB steps
Bar display, indicates adjusted threshold
ON if 0 dBFS is adjusted
THRS; label of control parameter
–13; indicates threshold
value –13 dBFS
