3-54 Desk Operation SW V3.3 Date printed: 03.09.03

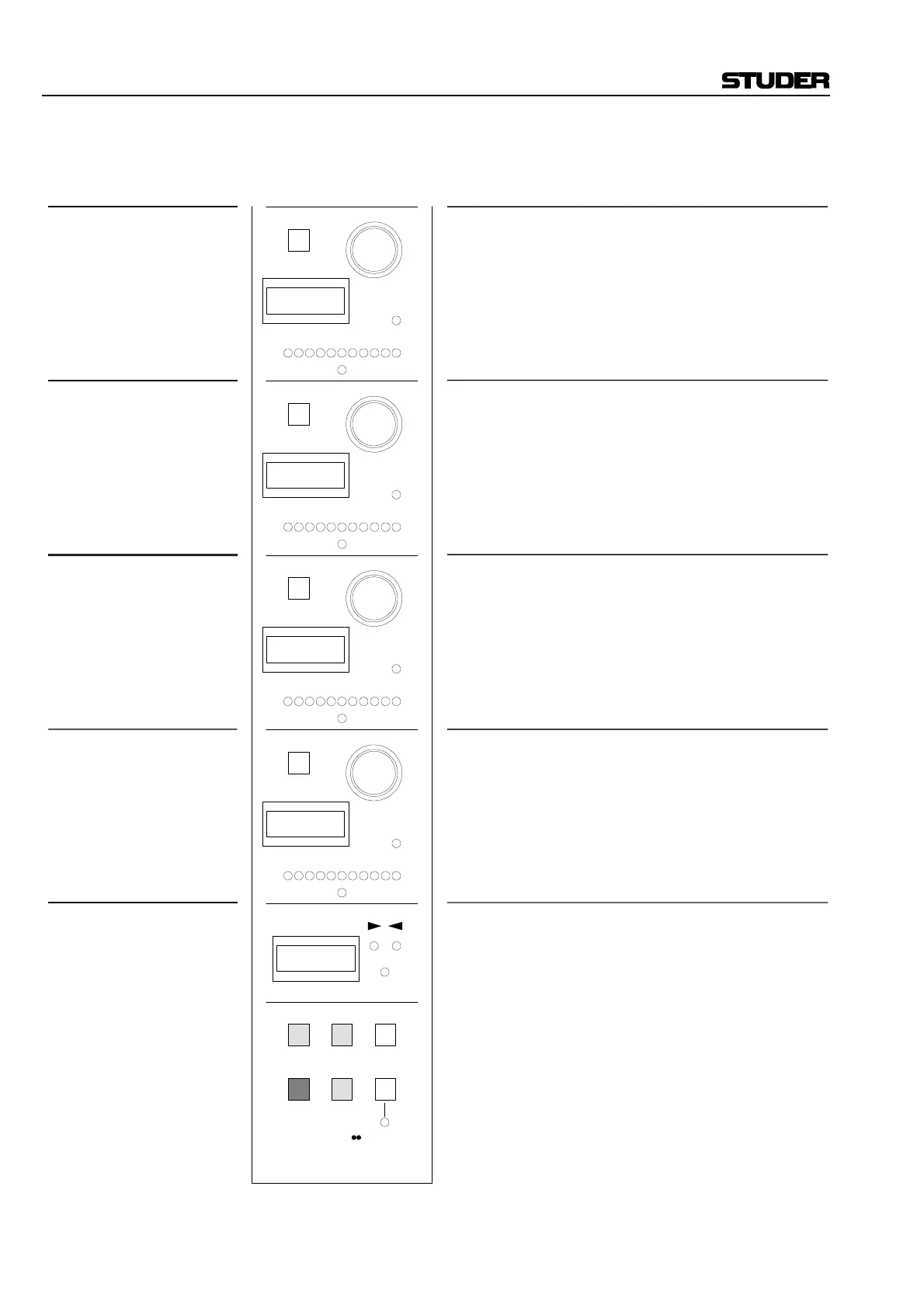

Example 3 (PAGE 3, CLVL):
Available operating elements and their function
Display
= Indication of Limiter/Compressor selection
LIM; limiter parameters (page 1)
COMP; compressor parameters (page 2)
CLVL; level/gain parameters (page 3)
KEY; common parameters for limiter and
compressor (page 4)
Dynamics control parameter (Limiter/Compressor)
not used
LOOK FORWARD
DYNAMICS GAIN
AUTO MAKE-UP GAIN
not used
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Auto function ON/OFF
If touched, the display indicates ON or OFF
no function
no function
AUTO; label of control parameter
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK21
LAST MODE43
PAGE
FREEZE
CLVL
AUTO
GAIN
LFWD
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
LFWD function ON/OFF
Look forward time adjustment; 0 to 25 ms
Bar display, indicates adjusted look forward time
On for 0 (zero) look forward time
LFWD; label of control parameter
0; look forward time 0 ms
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
Gain level adjustment
Bar display, indicates adjusted gain
ON if 0 dB gain is adjusted
GAIN; label of control parameter
+ 15; 15 dB gain
