Example 4 (PAGE 4, KEY):

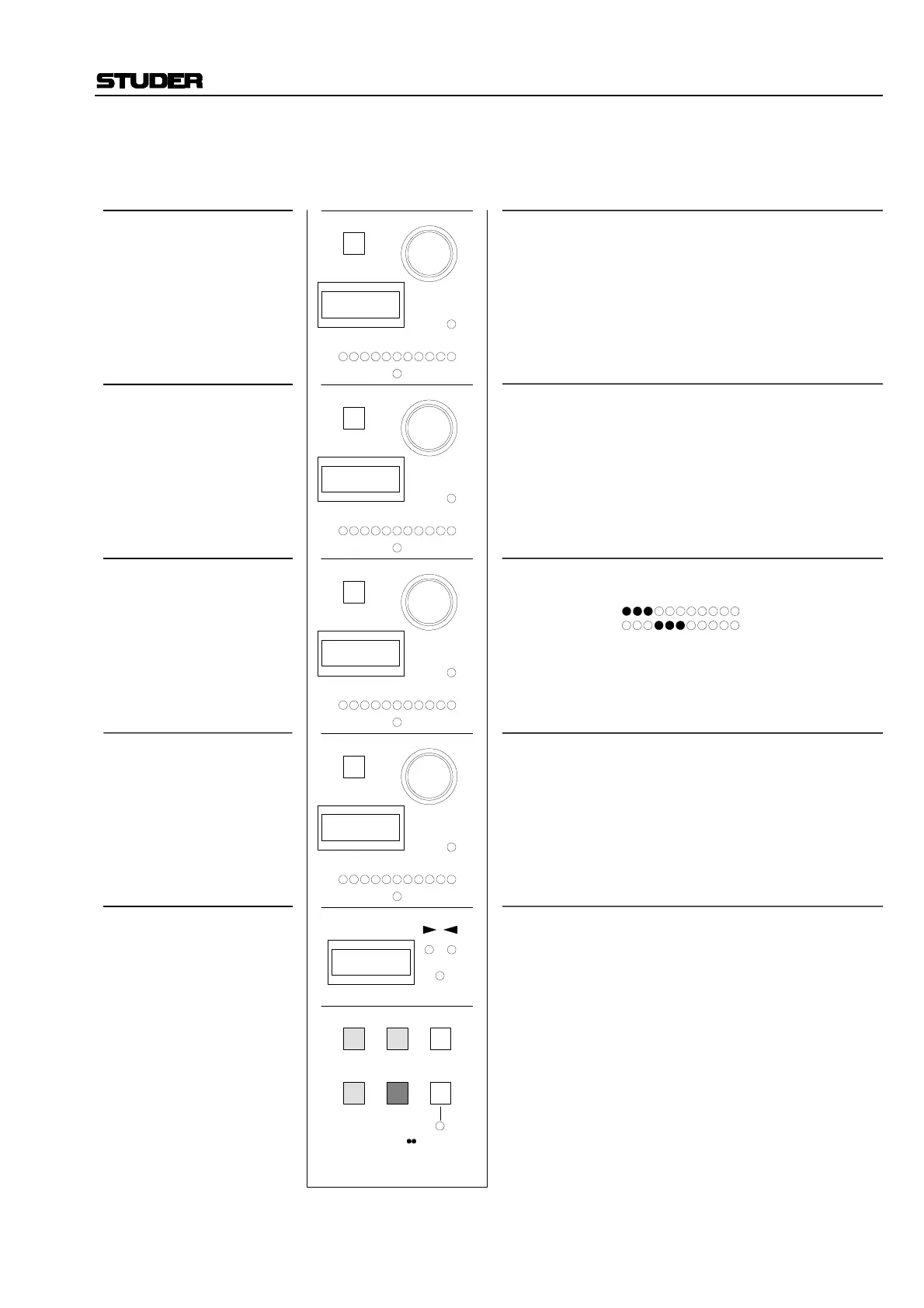

Available operating elements and their function
Display
=
Indication of Limiter/Compressor selection
LIM; limiter parameters (page 1)
COMP; compressor parameters (page 2)
CLVL; level/gain parameters (page 3)
KEY; common parameters for limiter and
compressor (page 4)
Dynamics control parameter (Limiter/Compressor)
SIDECHAIN LINK
HIGH-PASS FILTER SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
High-pass filter ON/OFF
Frequency adjustment
Frequency display
no function
HPF; label of control parameter
20; frequency 20 Hz
20k; frequency 20 kHz
SCL
KEY
HPF
LPF
KINP
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK21
LAST MODE43
PAGE
FREEZE
LOW-PASS FILTER
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Low-pass filter ON/OFF
Frequency adjustment
Frequency display
no function
LPF; label of control parameter
20; frequency 20 Hz
20k; frequency 20 kHz
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Link ON/OFF
If touched, the display indicates ON or OFF
no function
no function
SCL; label of control parameter
KEY INPUT SELECTION
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Toggles KEY input
Selects KEY input
CHAN
PTCH
no function
KINP; label of control parameter
CHAN; key taken from own signal
PTCH; key taken from the patch
