Studer D950 User Manual

D950 Digital Mixing System
8-10 Technical Specs SW V3.3 Date printed: 03.09.03
8.4.2 D19m Series DEMUX
For analog line or digital AES/EBU outputs, the D19m series converters
are used. The D19m DEMUX frame can be used in the demultiplexer
mode with a MADI input containing all the individual converter inputs, or
in the individual mode with AES/EBU inputs to the converters. The MADI
optical connections to the D19m frame are done on the front of the rack
directly onto the MADI card, and the optical cables are guided through a
suitable cable duct to the back of the frame. The analog outputs and the
AES/EBU inputs are all located at the back of the D19m frame on a
selection of connector panels:
• 1 Siemens 39 pin connector per panel (standard for analog signals).
• 1 D-type 15 pin connector per panel (standard for AES/EBU signals).
• 4 XLR connectors per panel (on request).
• 4 BNC connectors per panel (on request).
The exact number and type of the connector panels depends on actual
project specification. For more details on D19m cards and information on
optional connector panels, refer to the Studer D19m brochure (english:
10.26.3441, german 10.26.3430).
ON
POWER SUPPLY +5V
5V
ON
+15V
-15V
POWER SUPPLY ±15V
MADI
SUPPLY
MADIOK
I
N
T
H
R
U
SYNC SLAVE
MADI
MADI
SUPPLY
MADIOK
I
N
T
H
R
U
SYNC SLAVE
MADI
R
N
I
U
H
T
SUPPLY SUPPLY SUPPLY SUPPLY SUPPLY SUPPLY SUPPLY
AESO AESO AESO AESO C4DA
AES2
AES1
EXT
SYNC
C4DA
AES2
AES1
EXT
SYNC
C4DA
AES2
AES1
EXT
SYNC
Siem
39p
m
m
15p
D
m
15p
D
m
15p
D
m
15p
D
0
STATUS
200-240V~
POWER
SYNC IN
POWER LINK
100-120V~
SYNC OUT
RS 422
9p D f
f

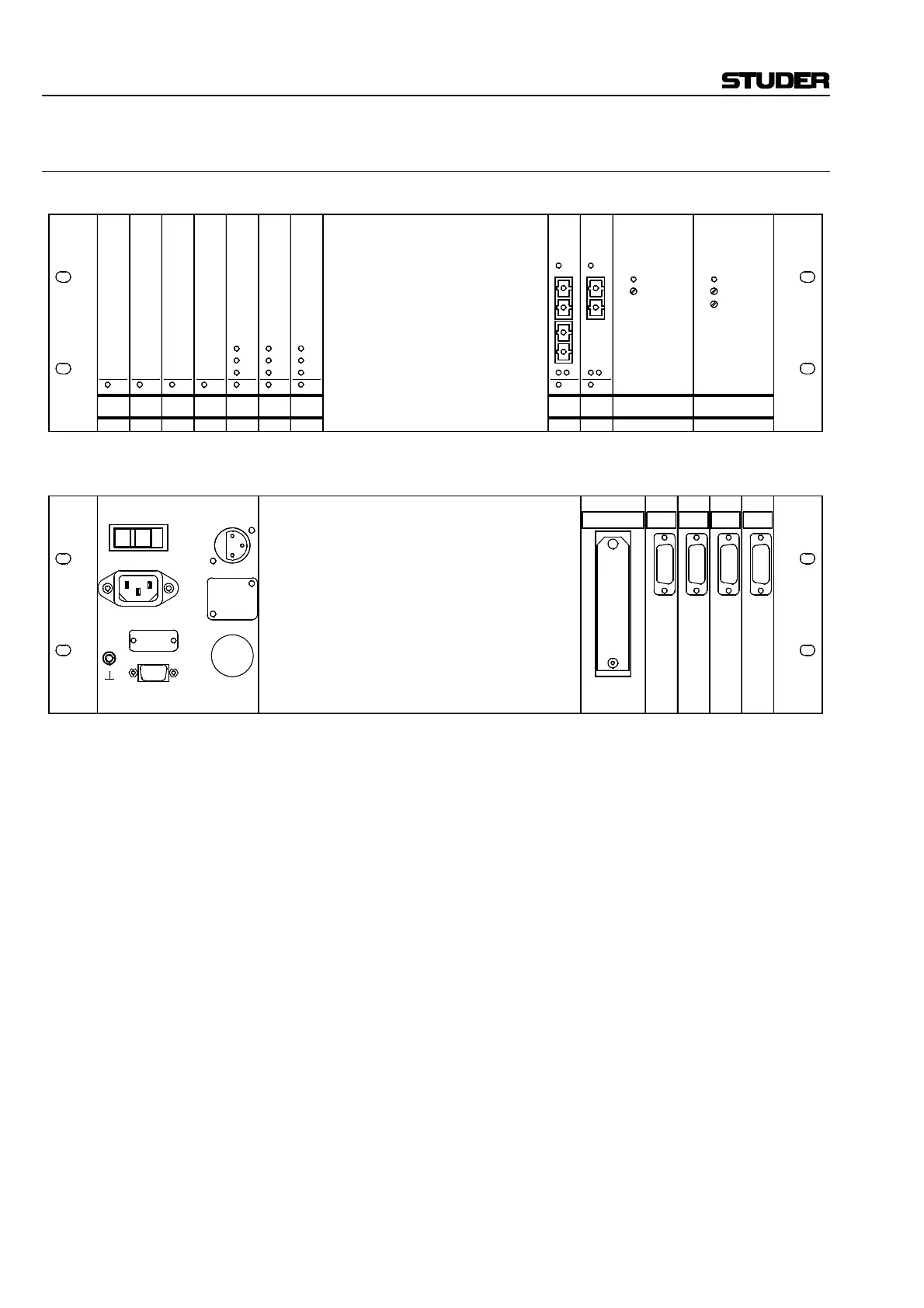

Rear view:
Front view (this example shows all available cards but not a practical configuration):
