3.3.13.7 Multi-format 5.1 Panning Parameters on the LACP

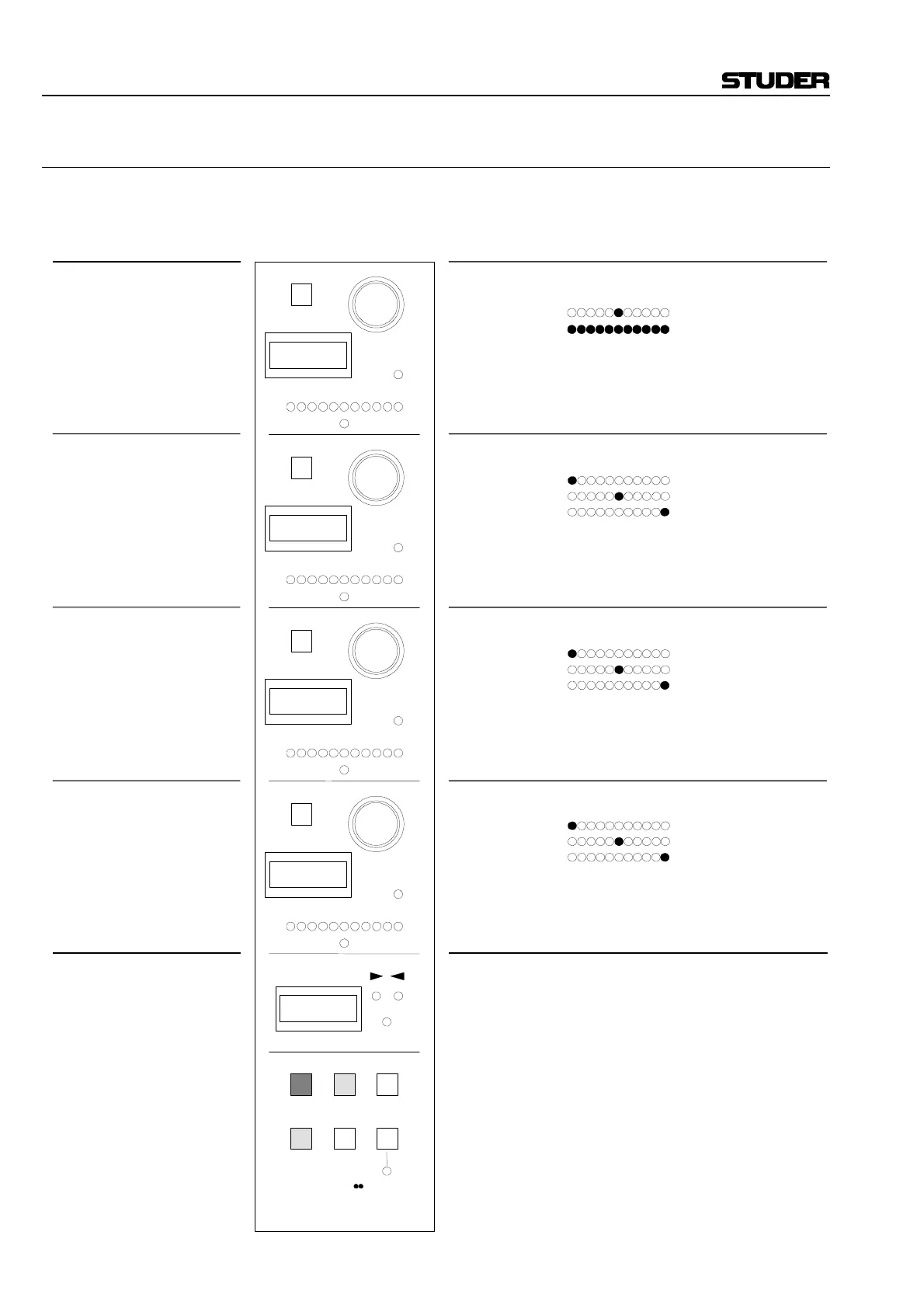

Example: Multi-Format 5.1 Panning, Page 1
F/S panning function ON/OFF
F/S panning setting
fully front
middle between front and back
fully back (surround)
ON if F/S panning in middle position
F/S_; label of control parameter
_F30; fully front
__C_ ; center (middle) between front and back
_B30; fully back
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
F/S PANNING
(FRONT/SURROUND)
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
CENT function ON/OFF
0 to 100% setting (0% = phantom center)
Phantom center
Center fully active
no function
CENT; label of control parameter
0%; Phantom center
100%; Center fully active
Available operating elements and their function
MPAN
5.1
F/S
LsRs
CENT
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
2
1
LAST MODE
4
3
PAGE
FREEZE
Mono 5.1 panning control parameters
Display
=
Indication of panning selection (Page 1)
FEED indication (Page 2)
MODE indication (Page 3)
(Page 4 not used)
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
LsRs BALANCE
CENT
5.1 PANNING
5.1 panning function ON/OFF
5.1 panning setting
fully left
center
fully right
ON if 5.1 panning in center position
5.1 ; label of control parameter
L30_; fully left
__C_ ; center
_30R; fully right
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
LsRs balance function ON/OFF
LsRs balance setting
fully left
center
fully right
ON if
LsRs in center position
LsRs; label of control parameter
L30_; fully left
L00R; center
_30R; fully right
