D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Technical Specs 8-3
8 DIMENSIONS, BASIC TECHNICAL SPECIFICATIONS
Compliant to the following technical standards:
IEC 721-3-3: 1994 + Amendment 1:1995 and EN 60721-3-3:1995
Environmental Class: Combination SET IE 32 (3K3/3Z2/3Z4/3B1/3C1/3S1/3M1)
Details of some of the parameters indicated above can be found in the Safety chapter at the
very beginning of this manual.
Conditions during initial phase of fire: 3T2/3P3/3F2/3V3/3H3
8.1 Operating Desk
The operating desk is a modular construction consisting of a combination
of 12 and/or 16 module frames, the basic module width being 40 mm. The
fader and input/output blocks come in widths of four modules (160 mm),
and they can be equipped in any multiple of four channel strips. So any
console can have from 4 up to 96 or more channel strips. The central sec-
tion is basically 16 or 12 modules wide and houses the GC cockpit.
Typical power requirements: 100...110 V or 220...240 V, 50/60 Hz, 150...600 W,
depending on the number of channel strips.

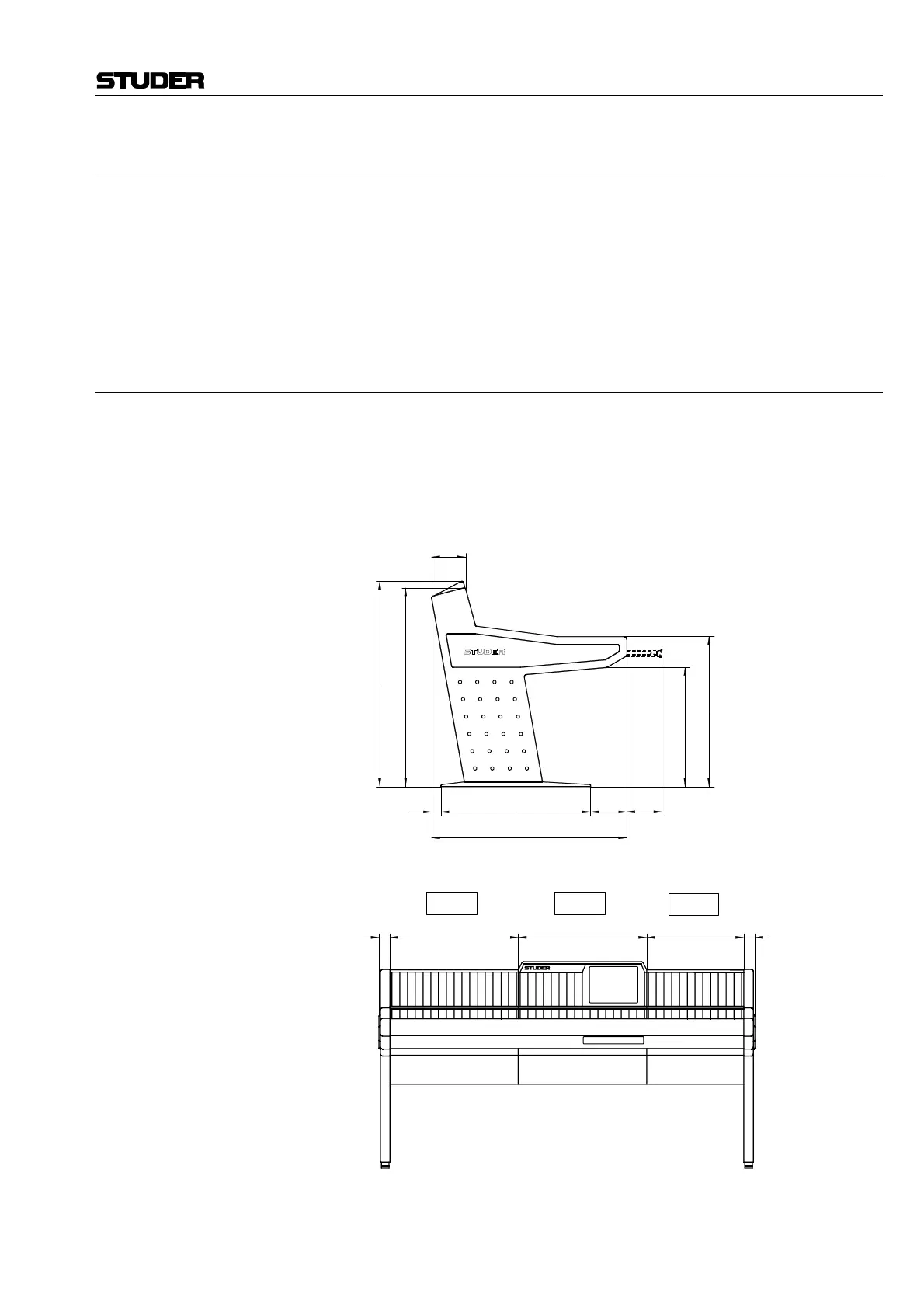

1072
780
1020
780 19050
625
1040
176
185
670670 508 6060
D950B
FRAME SIZE:
12 MODULES
FRAME SIZE:
16 MODULES
FRAME SIZE:
16 MODULES
