2.5.10 TB Mic/Display Control Unit

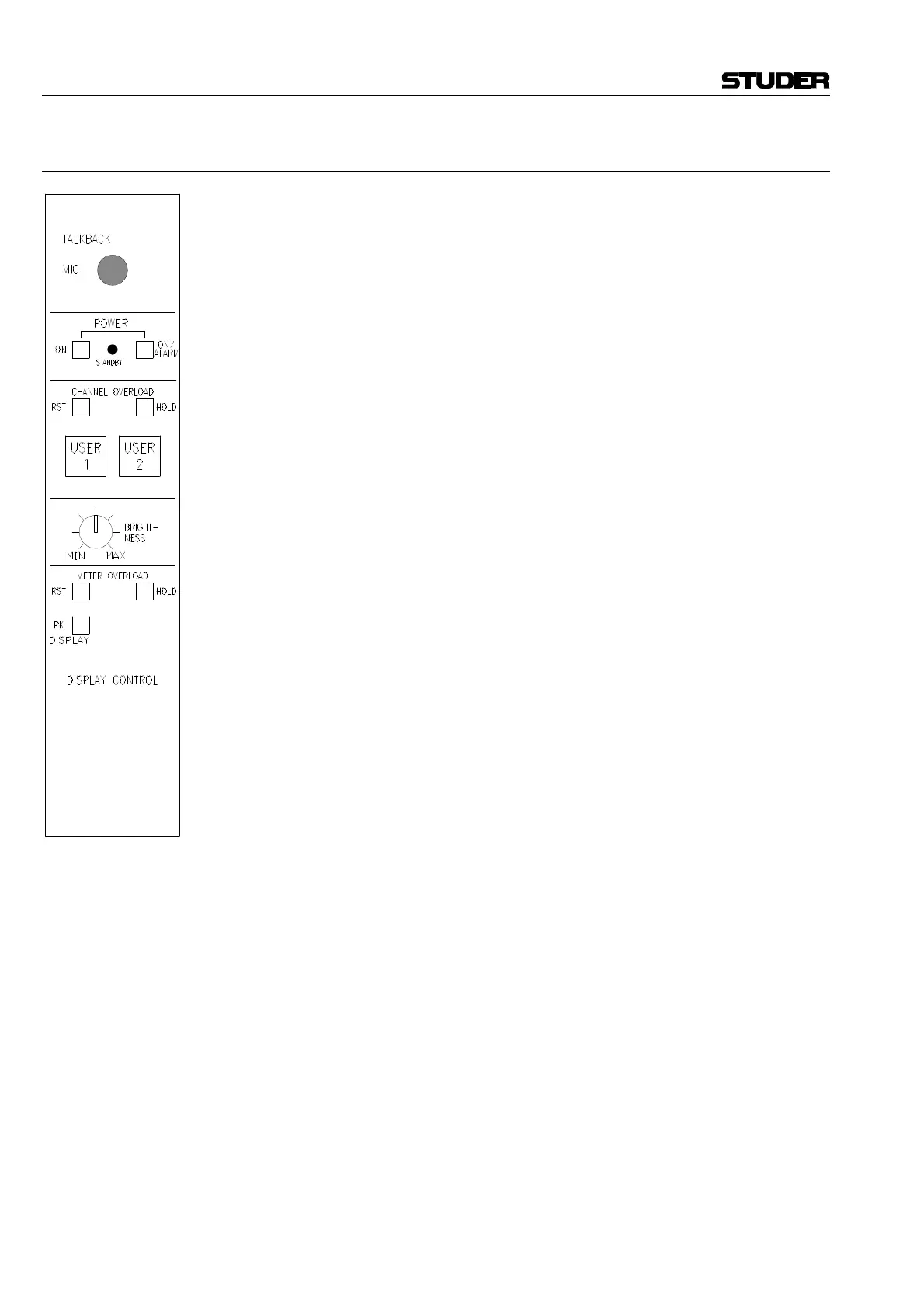

The TB Mic/Display Control Unit contains a range of different functions,
and is usually located in the center section, within the meter bridge, to the
left of the Graphic Controller screen. Dimensions: 40.6 mm × 190 mm
(2U).
TALKBACK MIC
A flush-mounted electret microphone used for console talkback..
POWER
Using these two keys, the D950 desk (user interface) can be switched on
and off.
To prevent undesired operation, both keys must be pressed simultaneously.
STANDBY
If the STANDBY LED is on, it indicates that the user interface is turned
off but that power is still connected.
ON/ALARM
The ON/ALARM LED flashes if the user interface has detected a power-
supply failure.
CHANNEL OVERLOAD RST/HOLD
RESET and HOLD of the channel LED overload indication can be acti-
vated using these controls.
USER 1/2
Keys and indicators provided for custom functions.
BRIGHTNESS
This control provides dimming of all keys, LEDs, and bar graph indicators
with the exception of the channel strip alphanumeric displays.
DISPLAY CONTROL
This set of keys provide a number of functions for the channel bar graph
meters, including RESET and HOLD of overload indication. PK
DISPLAY activates the peak indication.
