Studer D950 User Manual

D950 Digital Mixing System
3-102 Desk Operation SW V3.3 Date printed: 03.09.03

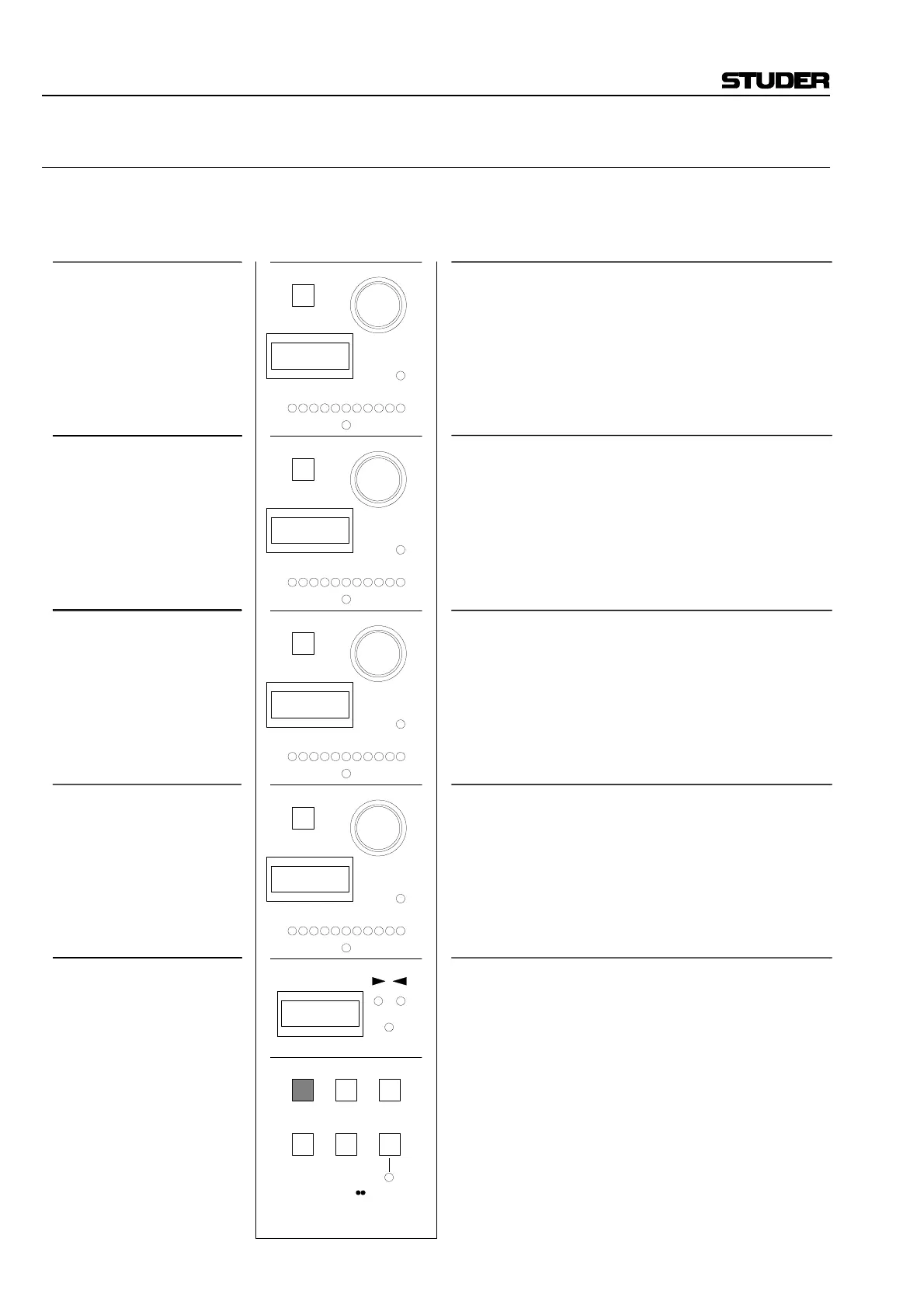

3.3.13.9 HRTF Panning Parameters on the LACP
Example: Mono channel, HRTF panning, page 1
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Left surround/right surround pan ON/OFF
Ls/Rs setting
Bar display
Center position
LsRs; label of control parameter
L30; full left surround
L00R; center
30R; full right surround
SW key
Rotary encoder
LED bar
Center LED
Display
Available operating elements and their function
HRTF pan control parameters
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK21
LAST MODE43
PAGE
FREEZE
HPAN
LCR
LsRs
F/B
FRMT
Display = Indication of HRTF panorama selection
(Pages 3 and 4 not used)
FRONT PAN
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Front pan ON/OFF
Front pan setting
Bar display
Center position
LCR; label of control parameter
L30; full left front
C; center
30R; full right front
FRONT/BACK PAN
SURROUND L/R PAN
FORMAT SELECTION
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
Pan format selection
no function
no function
FRMT; label of control parameter
2CH; 2-channel pan
LCR; 3-channel pan
LCRS; 4-channel pan (Dolby surround)
LCRX; 5.1-channel pan
7.1; 7.1-channel pan
=
=
=
=
=
Front/back pan ON/OFF
Front/back setting (B30 to 0 to F30)
Bar display
Center position
F/B; label of control parameter
B30; full back
F30; full front
