Studer D950 User Manual

D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Desk Operation 3-19
3.3.3.3 Input Parameters on the LACP
Example: Mono channel
IN 1
GAIN
PHAS
Mono input control parameters
PHASE
not used
not used
INPUT GAIN
and
DC REJECT
PHASE

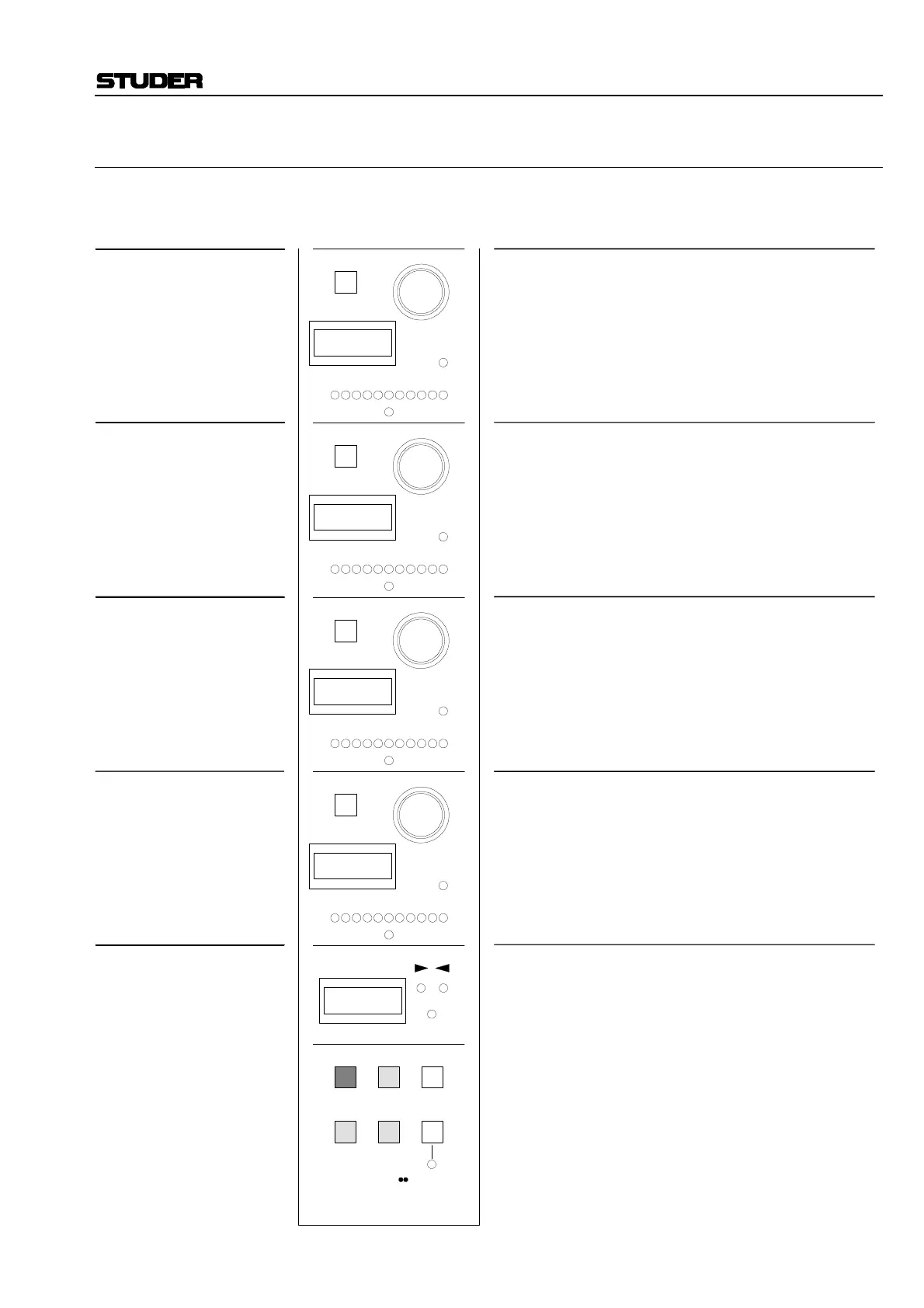

Available operating elements and their function
SW key
Rotary encoder
LED bar
Center LED
Display
not used
not used
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
=
=
=
=
=
select phase NORM, REV
select phase NORM, REV
no function
no function
PHAS; label of control parameter
NORM; in phase
REV; out of phase
DC reject ON/OFF (SW key is
illuminated when DC reject is ON)
Input gain setting
Bar display, indicates input gain
On at input gain = 0 dB
GAIN; label of control parameter
– 20; indicates set gain value
Display = Indication of selected input
IN_1; input 1 (page 1)
IN_2; input 2 (page 2)
GEN; test generator (page 3)
MICP; preamp control (page 4)
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK21
LAST MODE43
PAGE
FREEZE
