Studer D950 User Manual

D950 Digital Mixing System
3-20 Desk Operation SW V3.3 Date printed: 03.09.03

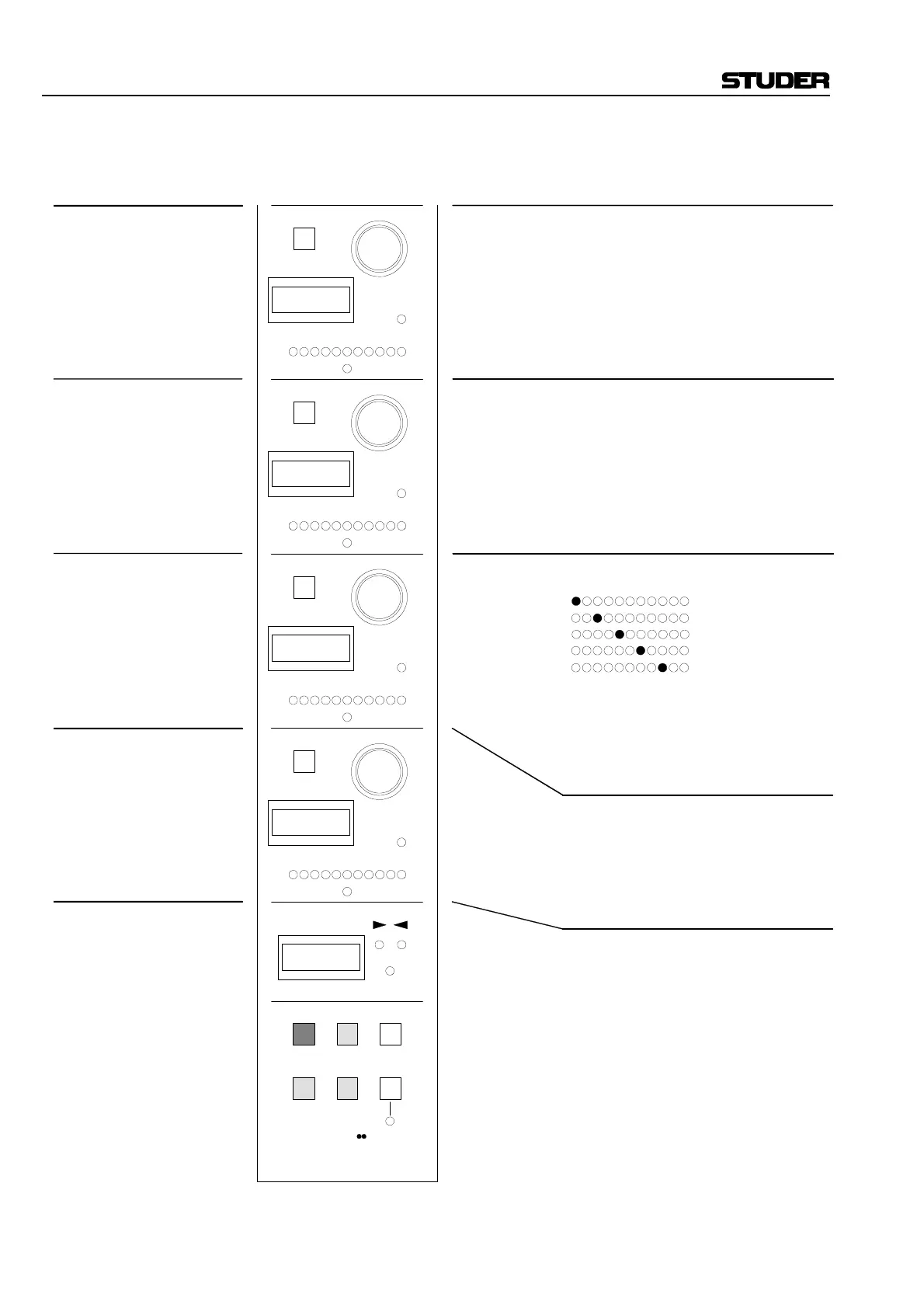

Example: Stereo channel
Stereo input control parameters
PHASE
XY/MS
INPUT MODE
INPUT GAIN
and
DC REJECT
PHASE
Available operating elements and their function
SW key
Rotary encoder
LED bar
Center LED
Display
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
=
=
=
=
=
select phase NORM, PH_1, PH_2, PH12
select phase NORM, PH_1, PH_2, PH12
no function
no function
PHAS; label of control parameter
NORM; in phase
PH_1; CH1 (left) out of phase
PH_2; CH2 (right) out of phase
PH12; both channels out of phase
DC reject ON/OFF (SW key is
illuminated when DC reject is ON)
Input gain setting
Bar display, indicates input gain
On at input gain = 0 dB
GAIN; label of control parameter
– 20; indicates set input gain value
Display = Indication of selected input
IN_1; input 1 (page 1)
IN_2; input 2 (page 2)
GEN; test generator (page 3)
MICP; preamp control (page 4)
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
select mode XY, MS
no function
no function
no function
XY; XY mode
MS; MS mode
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
select input mode ST, REV, L__L, R__R, MONO
select input mode ST, REV, L__L, R__R, MONO
ST
REV
L__L
R__R
MONO
no function
MODE; label of control parameter
ST; stereo (default setting)
REV; left and right signals swapped
MONO; mono
L__L; left signal to left and right channel
R__R; right signal to left and right channel
MS
IN 1
GAIN
MODE
PHAS
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
21
LAST MODE43
PAGE
FREEZE
