3.3.13.5 Multi-format LCR Panning Parameters on the LACP

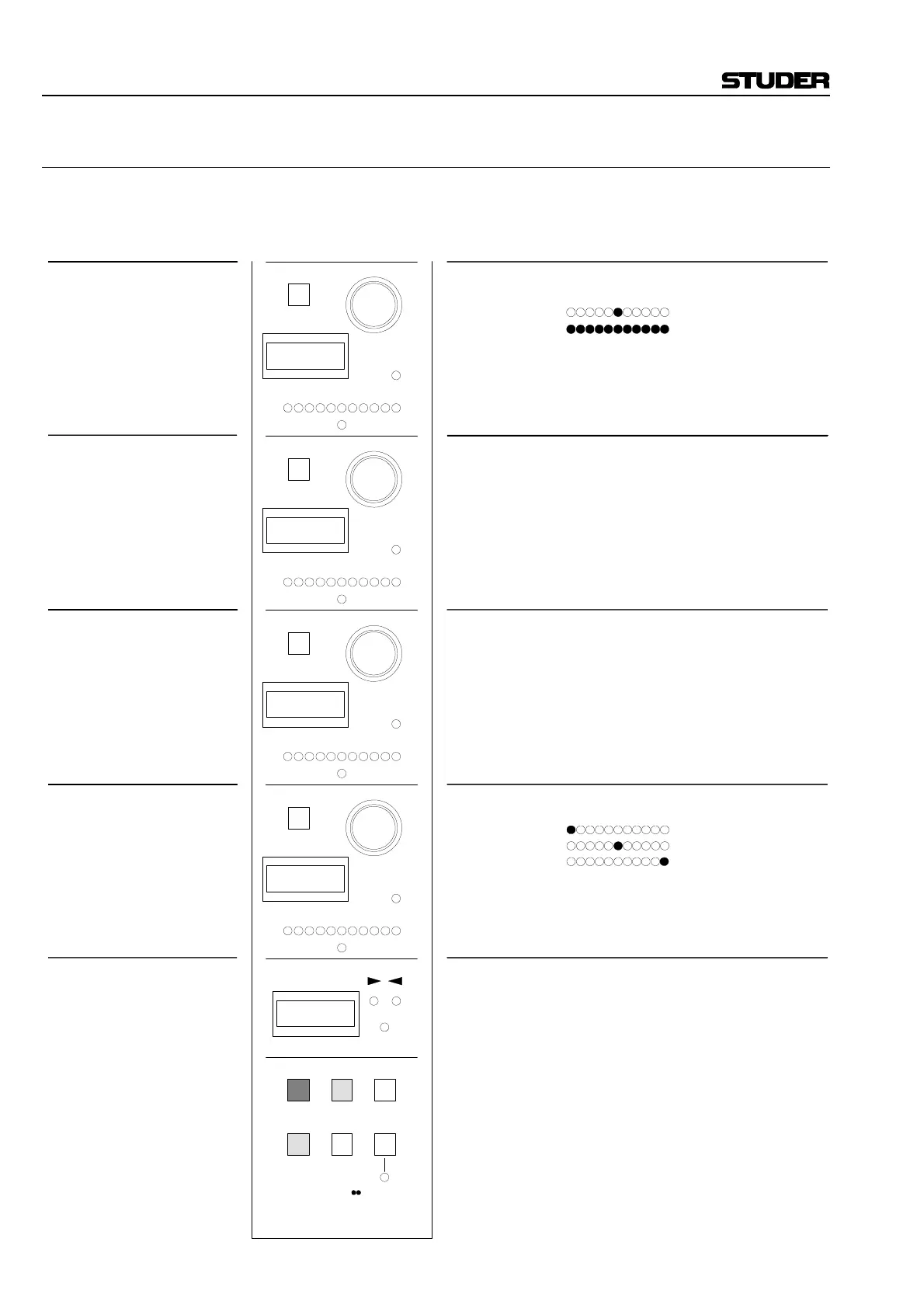

Example: Multi-Format LCR Panning, Page 1
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
LCR panning function ON/OFF
LCR panning setting
fully left
center
fully right
ON if LCRS panning in center position
LCR_; label of control parameter
L30_; fully left
__C_ ; center
_30R; fully right
Available operating elements and their function
MPAN
LCR
CENT
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
21
LAST MODE43
PAGE
FREEZE
Mono LCR panning control parameters
Display
= Indication of panning selection (Page 1)
FEED indication (Page 2)
MODE indication (Page 3)
(Page 4 not used)
LCR PANNING
not used
not used
not used
not used
CENT
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
CENT function ON/OFF
0 to 100% setting (0% = phantom center)
Phantom center
Center fully active
no function
CENT; label of control parameter
0%; Phantom center
100%; Center fully active
