D950/Vista Digital Mixing System
Date printed: 05.08.03 SW V3.3 ConfigTool 7-45
• Generate (VMC)
• Gen Proc Lib
• Batch
• Load Balance Procs (now the “CORE” area will be filled in)
• Gen Task Files
• Batch
• Generate Core File
If all steps are completed, the new core file is generated.
F Tip If you only wish to see the results of load balancing, but not to generate a
core file, use only the following three boxes:
• Generate (VMC)
• Gen Proc Lib
• Load Balance Procs
which will display the “CORE” area. Click on one of the buttons in this

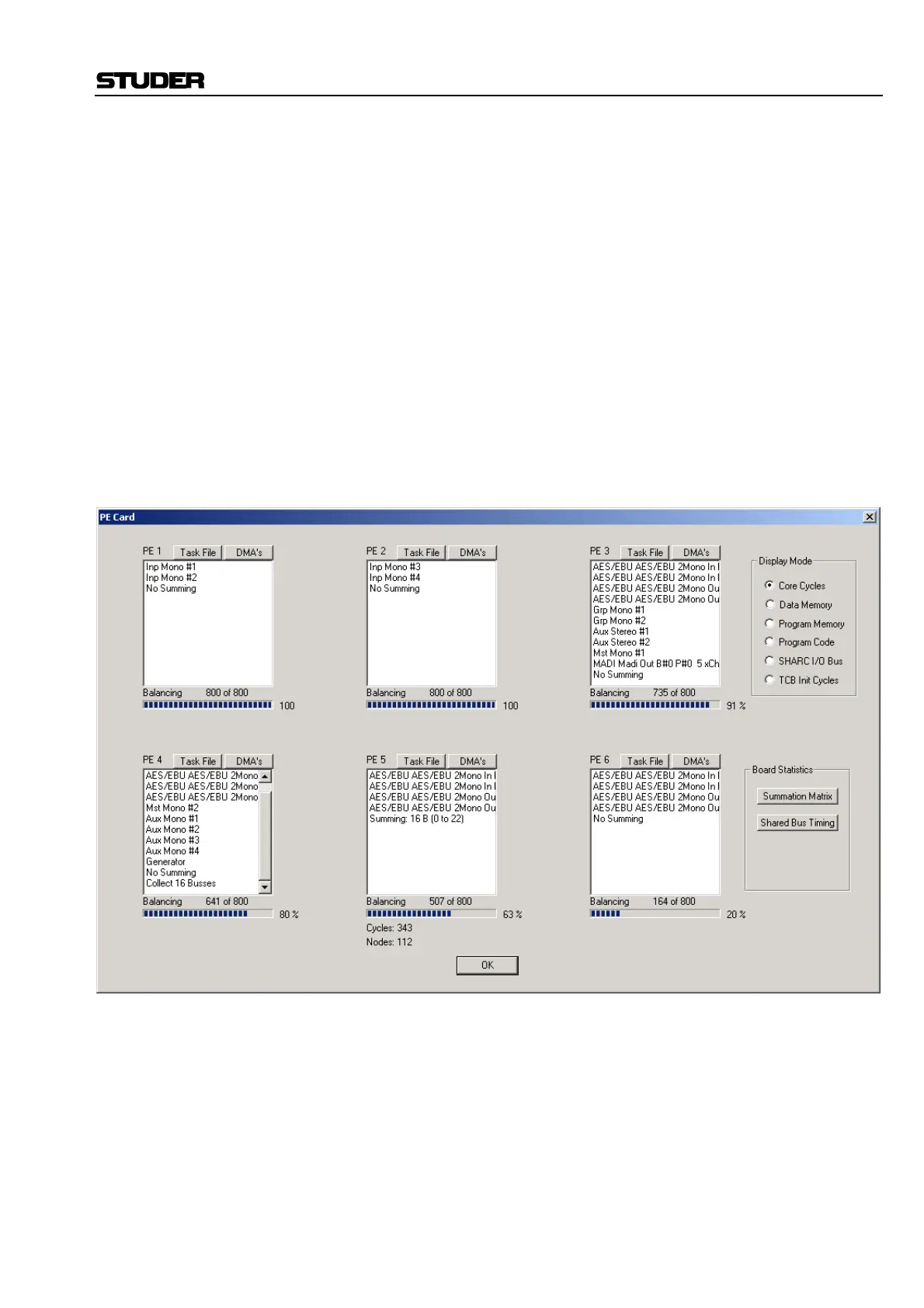

area to see the load distribution on one DSP board in detail. Here the dis-
play for the PEAES Board 00 is shown as an example:
Some of these details can also be found in the core knowledge file. An
example of this file is given in chapter 7.5.2.1. The page and the file con-
tain condensed information on the load distribution on DSP PE and
PEAES boards and individual PE processors. This information may be
helpful during troubleshooting of the system, because all the individual
channels, buses, and functions can be precisely located to a particular
board.
