Example: Multi-Format LCRS Panning, Page 2

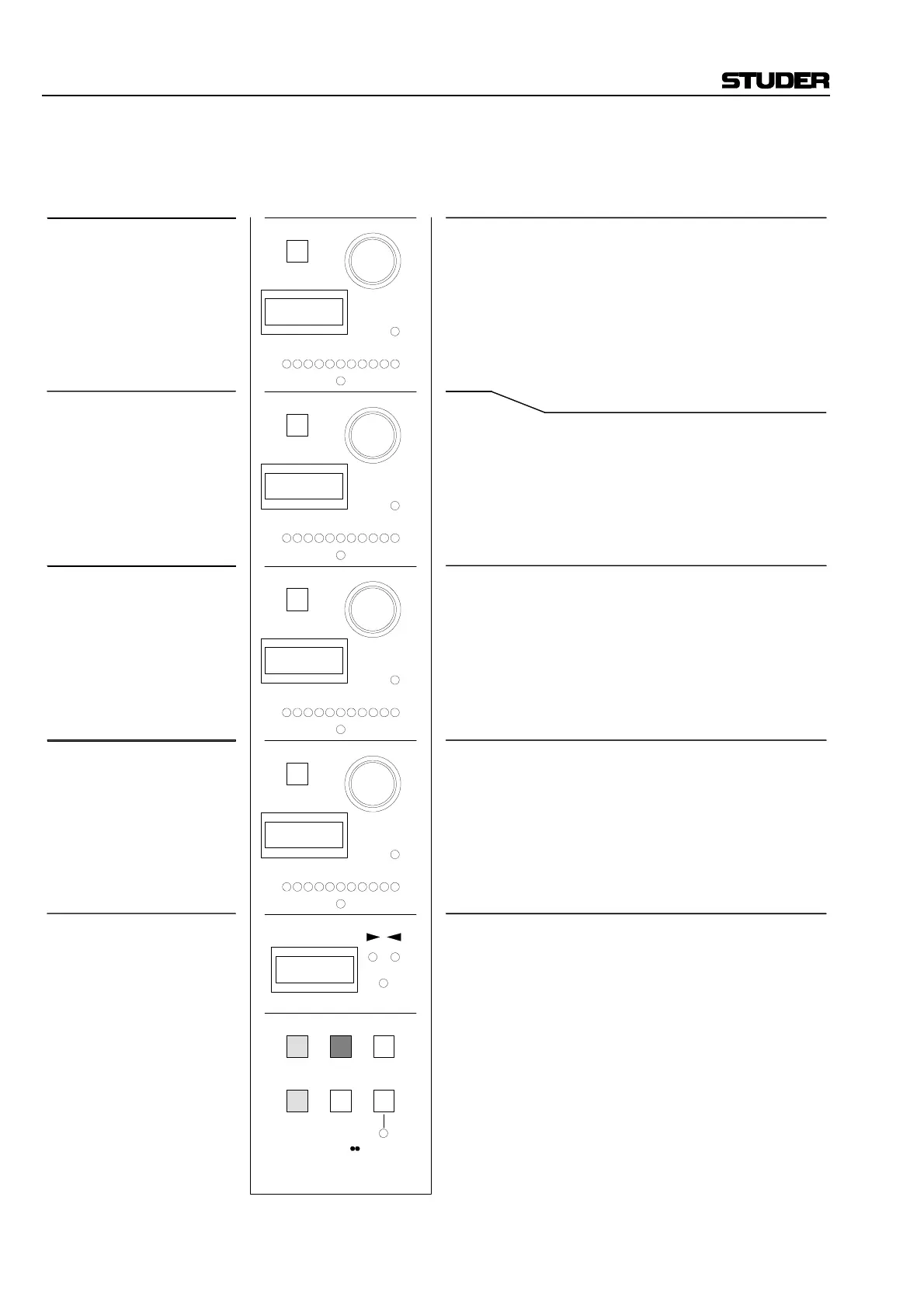

Available operating elements and their function
FEED
FRMT
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
21
LAST MODE43
PAGE
FREEZE
Mono LCR panning control parameters
Display
=
not used
not used
not used
not used
not used
not used
PANNING FORMAT
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Toggles FRMT (format) selection
FRMT selection
FRMT indication
no function
FRMT; label of control parameter
2CH ; 2-channel mode
LCR ; 3-channel mode (left/center/right)
LCRS; 4-channel mode (left/center/right/surround)
5.1 ; 6-channel mode (L/C/R/Ls/Rs/Sub)
EX ;
7.1 ; 8-channel mode (L/LC/C/RC/R/Ls/Rs/Sub)
Indication of panning selection (Page 1)
FEED indication (Page 2)
MODE indication (Page 3)
(Page 4 not used)
