D950 Digital Mixing System
3-12 Desk Operation SW V3.3 Date printed: 03.09.03

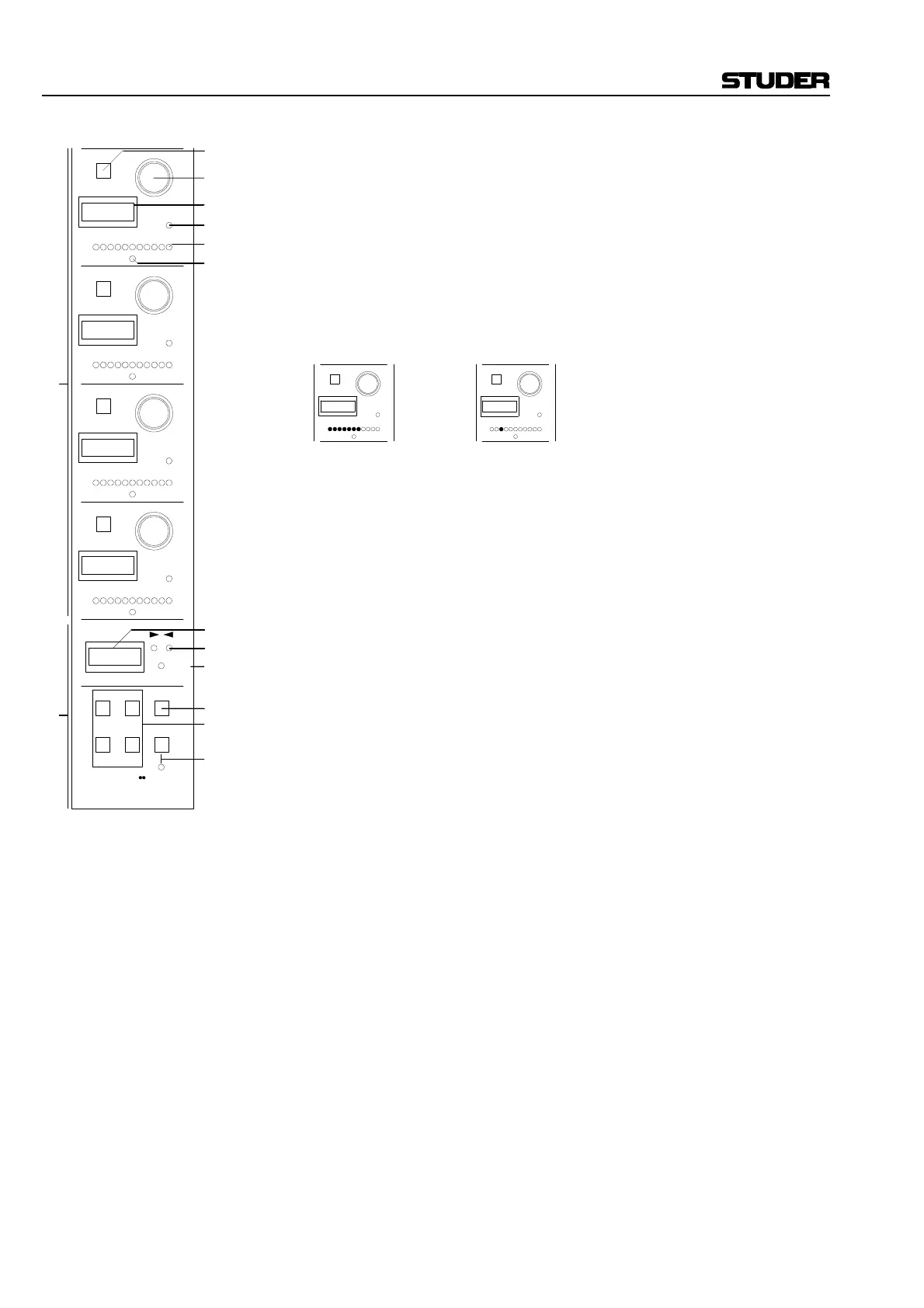

[4] AUTO LED (automation mode indicator)
This two-color LED is used during Dynamic Automation to indicate the
automation status of the switch and rotary encoder.
[5] LED bar display
The yellow LED bar display provides a quick overview of the position of
adjusted parameters, and is linked with the four-character display.
Depending on the current application, the display is implemented either as
a bar graph display, or as a single-dot display.
[6] Center LED
This red LED is illuminated when a center position (for example, PAN in
center, or EQ gain flat), a default or nominal value, or a 0 dB position (for
example, Input Gain 0 dB) has been set.
[7] Four-character alphanumeric display
The display indicates an overall label for the currently selected page of the
LACP (for example, EQHI or PAN).
[8]
w q
These two LEDs are used for the Dynamic Automation of rotary encoders.
They display the last-touched position of a rotary encoder, with respect to
the automation data already recorded. This function allows changes to be
made, and then set the rotary encoder back to the recorded mix data.
[9] n–1
The n–1 LED indicates that an n–1/Mix-minus mode has been set for this
channel.
[10] TALK
The TALK key activates talkback to the direct output for the channel, or to
the n–1/Mix-minus output, depending on the selected mode.
Note: TALK is only active for channels with assignments made for the direct or
n–1 outputs.
[11] PAGE 1...4
Audio processing functions such as “EQ” contain more than four param-
eters. By pressing the appropriate PAGE key, additional parameters are
available on the LACP, and then can be adjusted.
[12] LAST MODE / ••FREEZE
Pressing this key once causes the LACP to indicate the previously assigned
audio processing section.
For example, having adjusted input gain, the user is now adjusting EQ
During this latter operation, it may become necessary to re-adjust input
gain.
By simply pressing the LAST MODE / ••FREEZE key, the LACP returns
to the input control (in this example, it is now possible to toggle between
Input and EQ control modes).
A double click activates the FREEZE function. Having activated the
FREEZE function, the channel’s LACP is locked out from global selection
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
21
LAST MODE43
PAGE
FREEZE
[8]
[B]
[A]
[7]
[10]
[12]
[11]
[9]
[5]
[4]
[2]
[1]
[3]
[6]
AUTO
SW
1
AUTO
SW
1
– 3
L 20
Example: Example:
Input gain –3 dB Pan; position left of center
