Toptech Systems MultiLoad II User Manual

Chapter 4 – General Configuration
164
Firmware Version 3/4.31.37
4.21.1 LOADING A BUILT IN CUSTOMER LOGO
Enter Program Mode, select Configuration, and then Customer Logo Setup. The Customer Logo Setup screen is
displayed.
The currently loaded customer logo is displayed.
Pressing the Next and Prev keys will allow viewing of all built in logos.
Pressing Exit will return to the Configuration Menu without changing the currently loaded customer logo.
Pressing Enter will load the currently displayed customer logo.
4.21.2 UPLOADING A CUSTOM .BMP CUSTOMER LOGO
The .BMP file containing the customer logo must conform to certain specifications for the upload to be successful.
Those specifications are:
- BMP (Bitmap) format.
- Uncompressed image data.
- 4 bits per pixel (16 color depth)
- Width MUST be 640 pixels.
- Height MUST be 240 pixels.
- No more than 6 custom colors. That is Colors (R, G, B)
other than:
BLACK (0, 0, 0)
BLUE (0, 0, 255)
RED (255, 0, 0)
MAGENTA (255, 0, 255)
GREEN (0, 255, 0)
CYAN (0, 255, 255)
YELLOW (255, 255, 0)
WHITE (255, 255, 255)
TMS 5 and TMS 6 have a utility program to upload a .BMP file conforming to these specifications into a MultiLoad
II. For standalone MultiLoad II and RCU II applications, use the latest MultiMate configuration tool to upload a
customer logo. On Rev 2.0 CPU boards, the SD-Card slot can also be used to upload a logo BMP file.

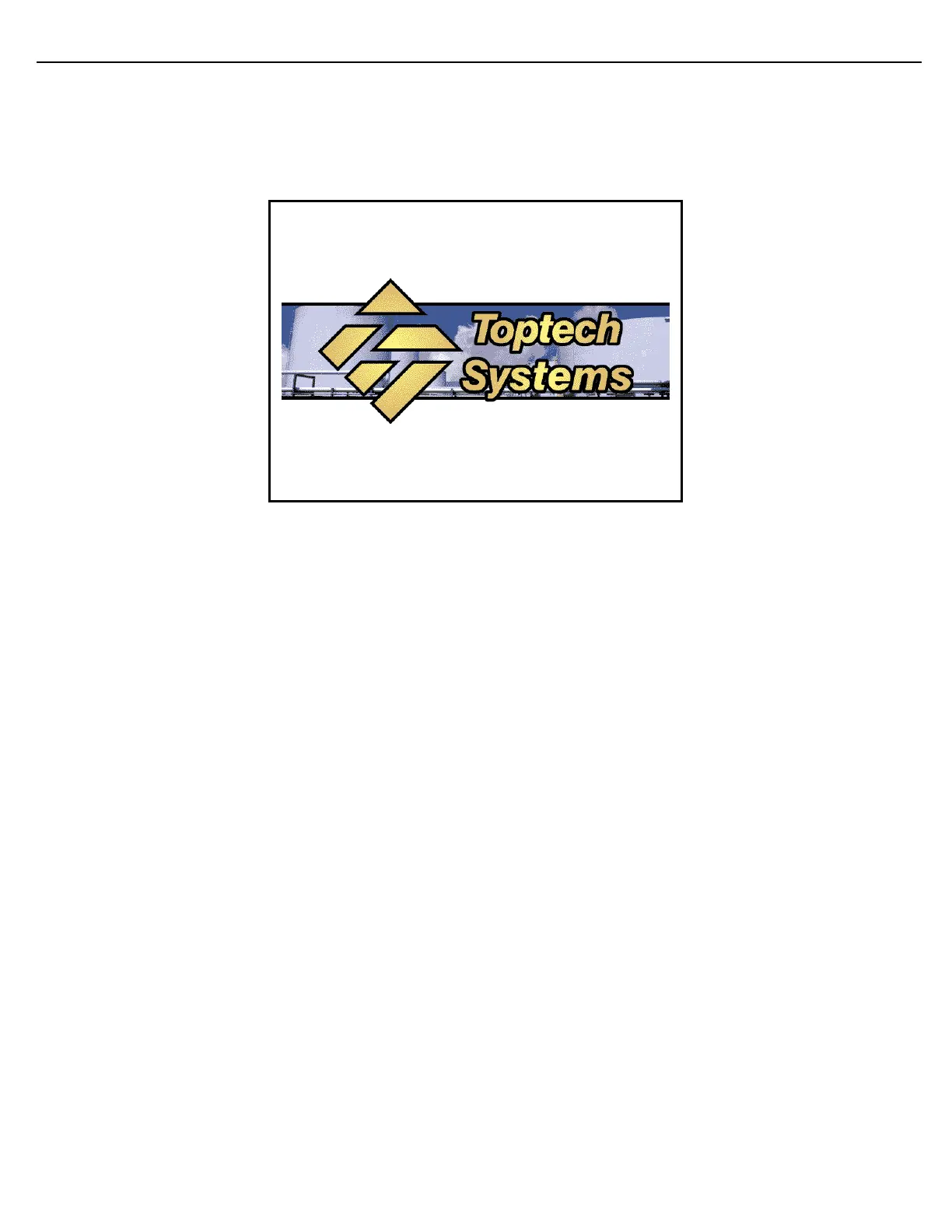

CUSTOMER LOGO SETUP
Next Prev Exit Enter
