Toptech Systems MultiLoad II User Manual

Chapter 2 –System Description
31
Firmware Version 3/4.31.37
2.11.2 TYPE 2 PROGRAM / W&M SWITCHES
- Type 2 switches consist of a single, 3-position, external rotary switch. Each position corresponds to an
operating mode. The switch has two external fold down covers that limits the switch rotation as described below.
Each cover can be locked or sealed with a wire and lead seal to prevent moving the switch into the active states.
Each cover will also be stamped as “W&M” or “Program” to indicate function.

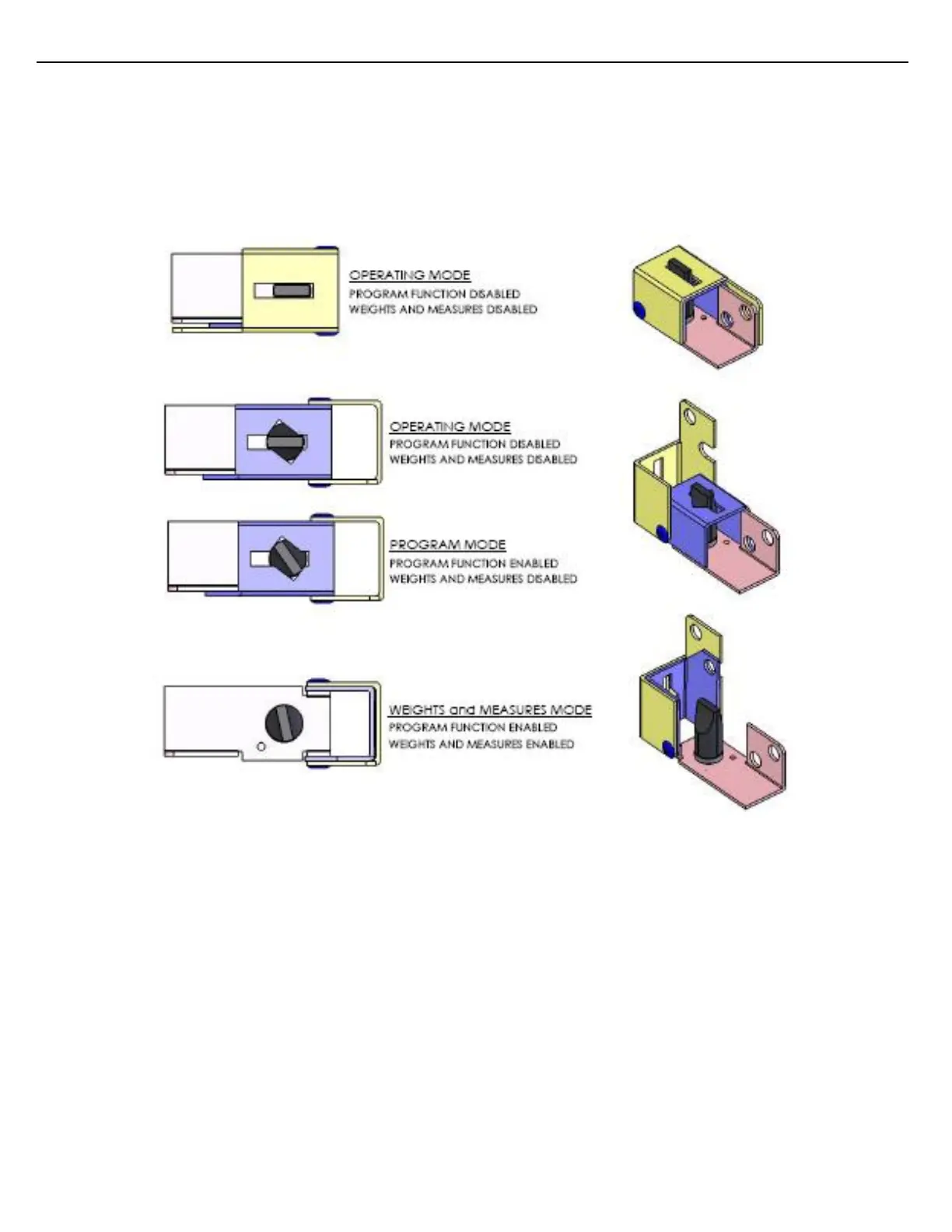

Figure 2.3 Type 2 Program / W&M Switches
