Toptech Systems MultiLoad II User Manual

Chapter 9 – Weights & Measures
310
Firmware Version 3/4.31.37
((Dr*Gr) + (Dp*Gp) + (De*Ge)) / Gb=Volume weighted density for the blend
Nb=Net volume loaded for the blend
Mb=Mass loaded for the blend
Pressure and Gravity are handled in the same way as Temperature and Density.

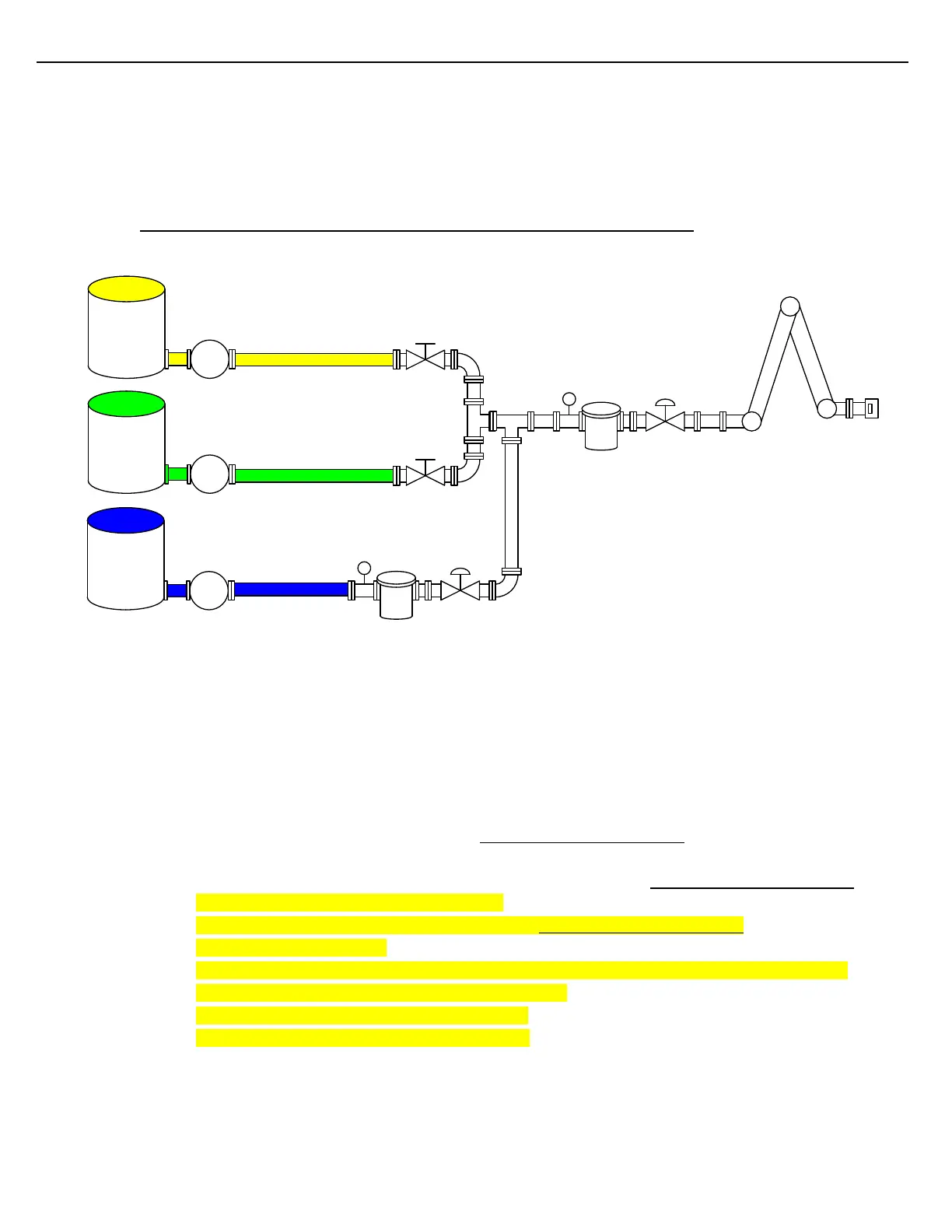

9.11 MULTILOAD SEQUENTIAL WITH SIDE-STREAM BLENDING CALCULATIONS
(Regular/Premium sequential main streams, Ethanol side-stream)
T1
CV
M1
P
Ethanol
T2
CV
M2
P
P
Premium
Regular
BV
BV
Comp #1
Comp #2
Regular/Ethanol meter (Meter Level) values are reported as:
Grem=M1
Trem=T1
Drem=D1 OR ((Dr * (Grem - Ge)) + (De * Ge)) / Grem
Nrem=Grem*VCFr(Trem,Drem)
Mrem=Nrem * Drem OR Mrem=Grem * D1
Where: Grem=Gross volume loaded for the Regular/Ethanol Meter
M1=Gross volume reported by meter M1 while flowing Regular/Ethanol
Trem=Temperature for the Regular/Ethanol Meter
T1= Volume weighted average temperature reported by probe T1 while flowing Regular/Ethanol
Drem=Density for the Regular/Ethanol Meter
D1=Volume weighted average Density measured while flowing Regular/Ethanol
OR specified for meter M1
((Dr * (Grem - Ge)) + (De * Ge)) / Grem=Volume weighted average density for Regular/Ethanol
(see Preset Level Parameter Compute Blend Density)
Dr=Density specified for the Regular component
De=Density specified for the Ethanol component
Nrem=Net volume loaded for the Regular/Ethanol Meter
VCFr=API Correction Table for Regular
Mrem=Mass loaded for the Regular/Ethanol Meter
