Firmware Version 3/4.31.37
2.11.1 TYPE 1 PROGRAM / W&M SWITCHES
Type 1 switches consist of two separate external rotary switches, one for Program Mode Access, and one for
W&M change access. Each switch has external fold down cover that can be locked or sealed with a wire and
lead seal to prevent moving the switch into the active state. Each cover will also be stamped as “W&M” or
“Program” to indicate function.

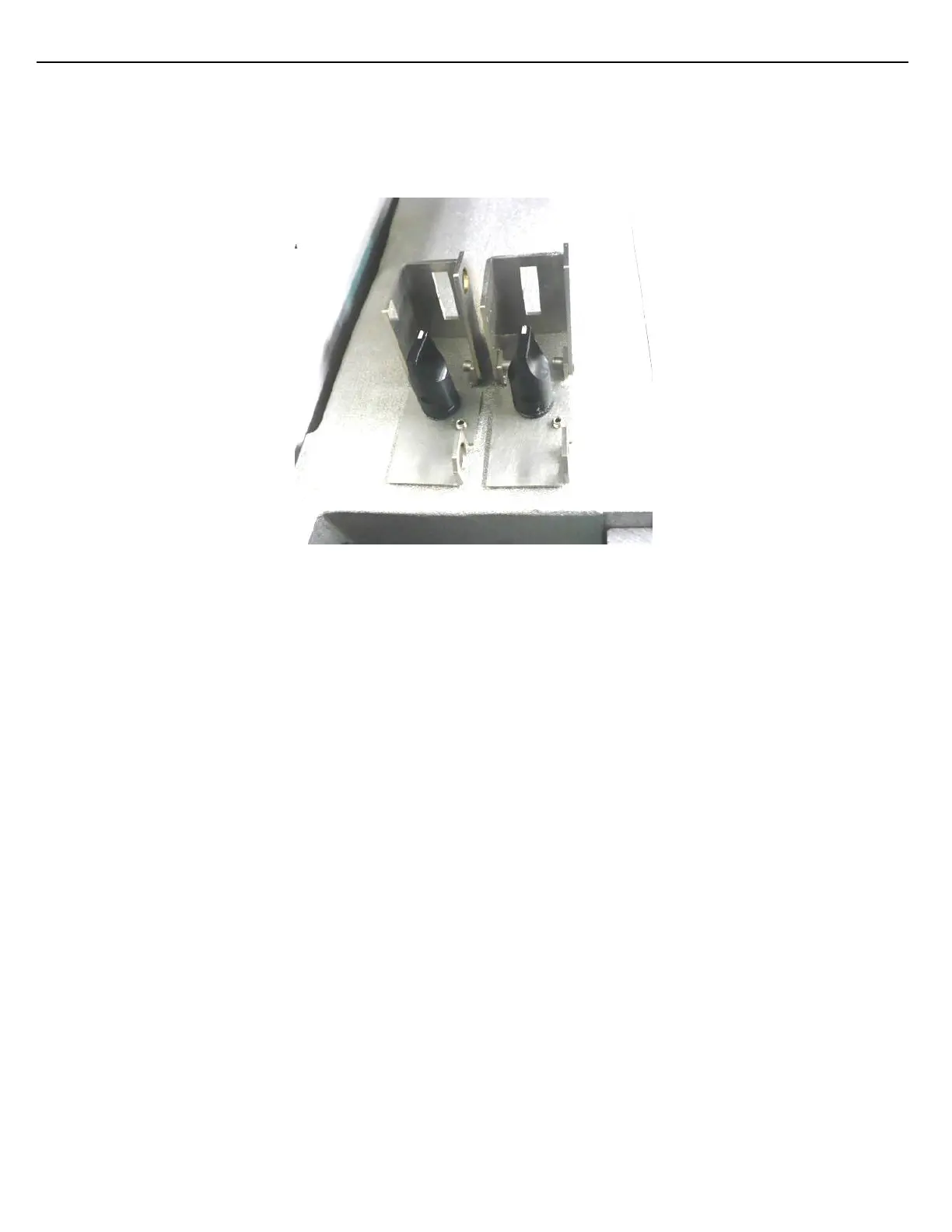

Figure 2.2 Type 1 Program / W&M Switches
