Toptech Systems MultiLoad II User Manual

Chapter 2 –System Description
23
Firmware Version 3/4.31.37
FCM II consists of 8 different module types:
4DCIN/4ACOUT: 4 DC Inputs (5-30 VDC), 4 AC Outputs (85-250 VAC)
6ACIN: 6 AC Input (90-140 VAC) or (180-250 VAC)
6ACOUT: 6 AC Outputs (85-250VAC)
6DCIN: 6 DC Inputs (5-30 VDC)
6DCOUT: 6 DC Outputs (0-30 VDC)
ANALOG/4DCIN/4ACOUT: RTD Input, 4-20mA Input, 4-20mA Out, 4 DC Inputs (5-30 VDC),
4 AC Outputs (85-250 VAC)

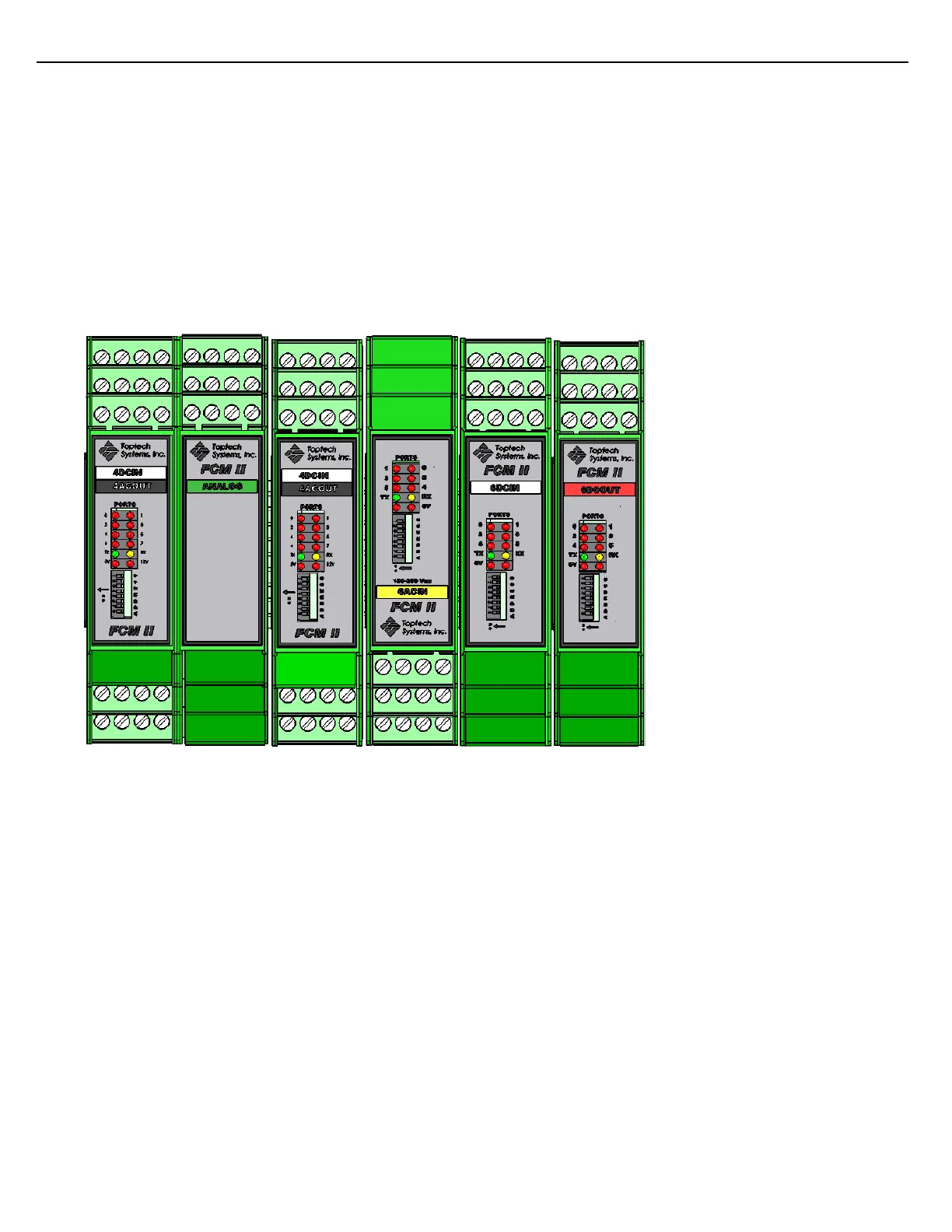

Figure 2.1 FCM II Modules
