Amadas 9980 - Active Header Control Display

9980 Self-Propelled Peanut Combine CommandTouch Cornerpost
Active Header Control
Display
The active head control display (A) provides
you with header positioning data
while the
machine is running
and allows you to make
changes as needed.
Header Height Sensing (B):
Allows you to
select the position of the header relative to the
ground and return to that position
automatically.
Header Height Resume (C):
Allows you to
select the position of the feeder house relative
to the machine and return to that position
automatically.
Header Raise Pressure (D): The 9980 SP
Peanut Combine is not equipped for Active
Header Float. However, if you activate this
button and manually raise the header, you can
briefly see what pressure it takes to raise the
header. This can be helpful in diagnosing
header raise problems.

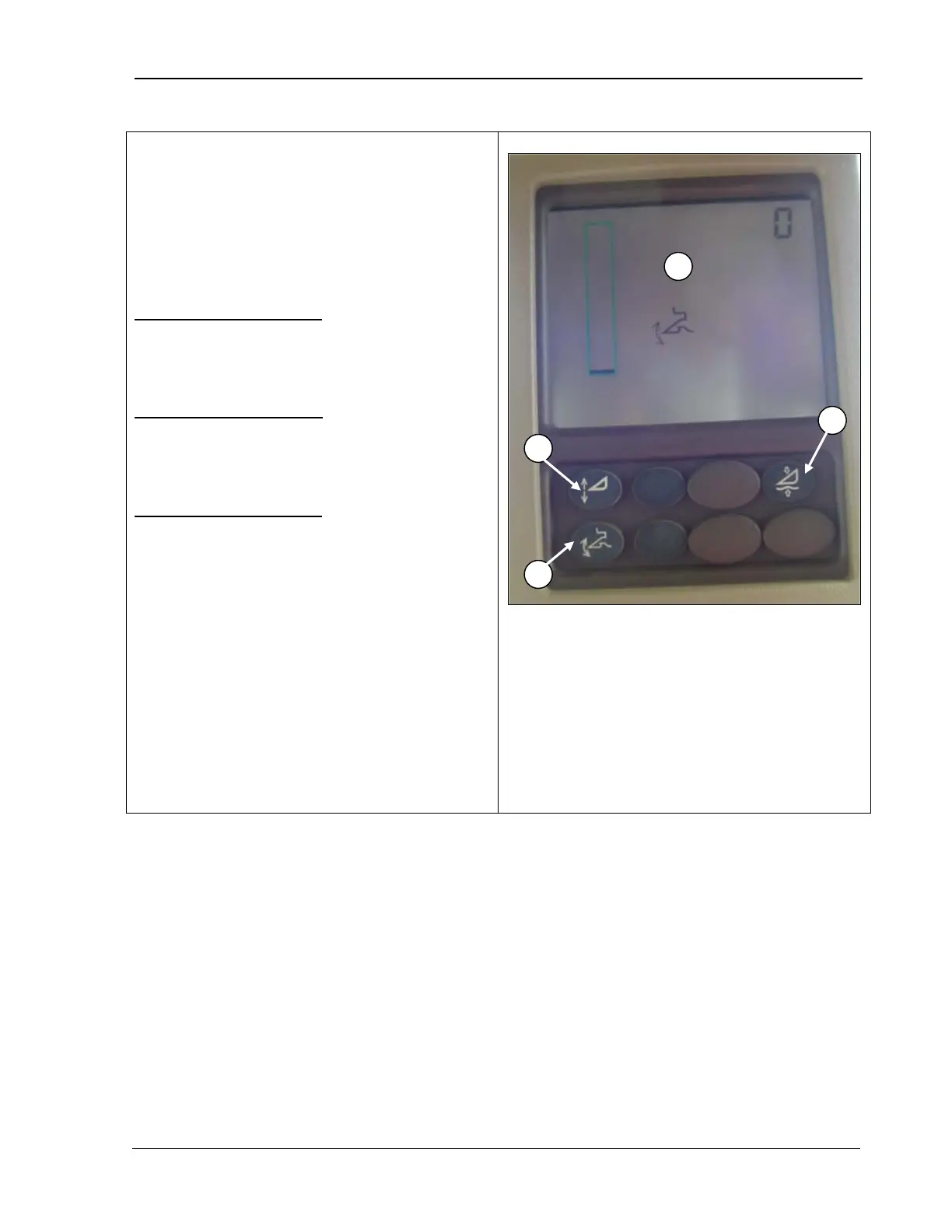

A – Active header control display
B – Header height sensing button
C – Header height resume button
D – Header raise pressure button
A
B
C
D
MAN109 09/04/15 113
