Amadas 9980 - Replace Engine Accessory;Fan Belt

9980 Self-Propelled Peanut Combine Engine Service
Replace Engine Accessory/Fan Belt

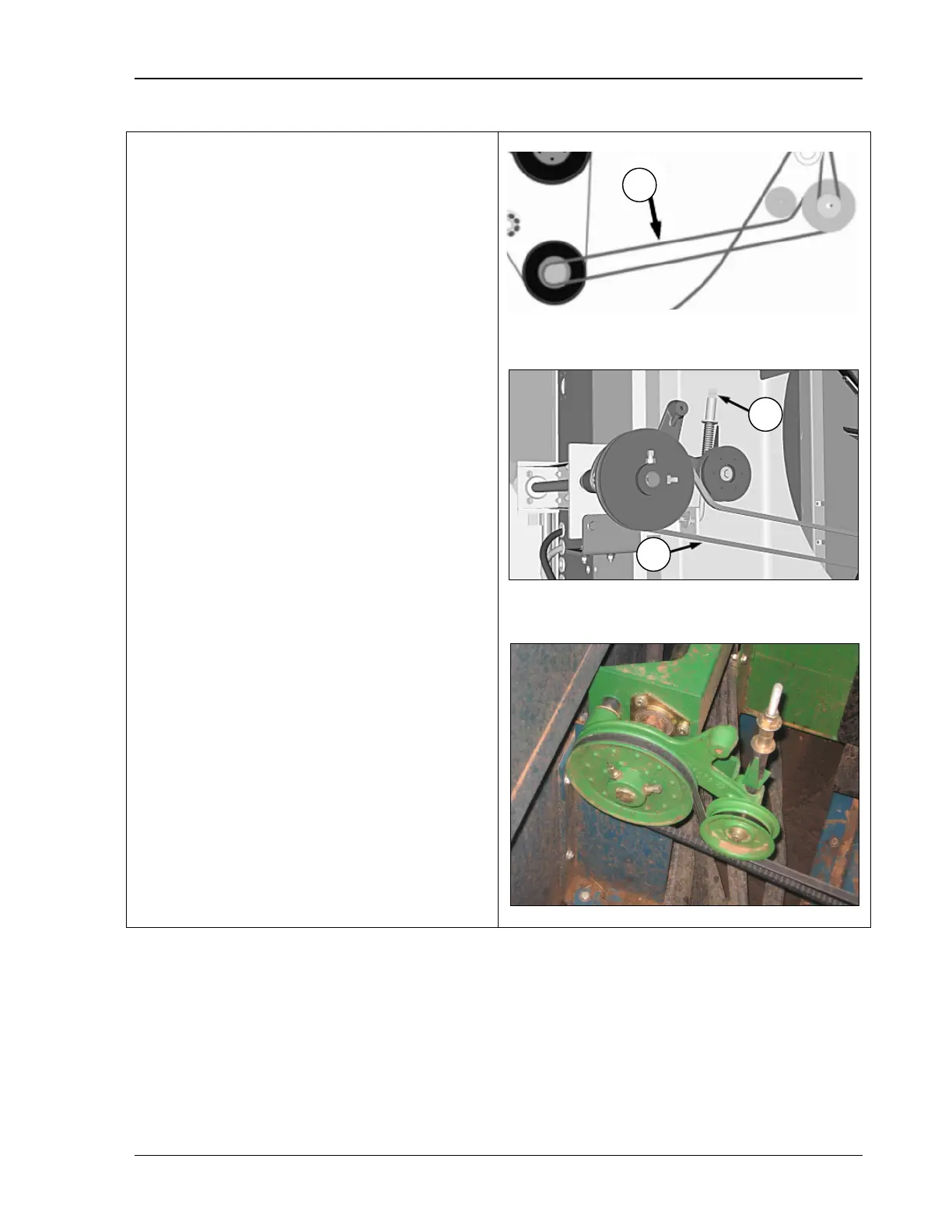

6. Replace or reinstall the engine side rotary
screen drive belt (A)
as necessary,
installing in reverse order and following the
routing shown in the top sketch. Note that
the sketch is shown in reverse of the
bottom sketch.
7.
Tighten the nut (B) shown in the bottom
sketch until the gauge aligns with the end
of the spring. The bottom photo shows the
belt properly routed.
A
B
A
