Amadas 9980 - Left-Hand Armrest and Seat Back

Operator’s Station 9980 Self-Propelled Peanut Combine
Left-Hand Armrest and Seat
Back

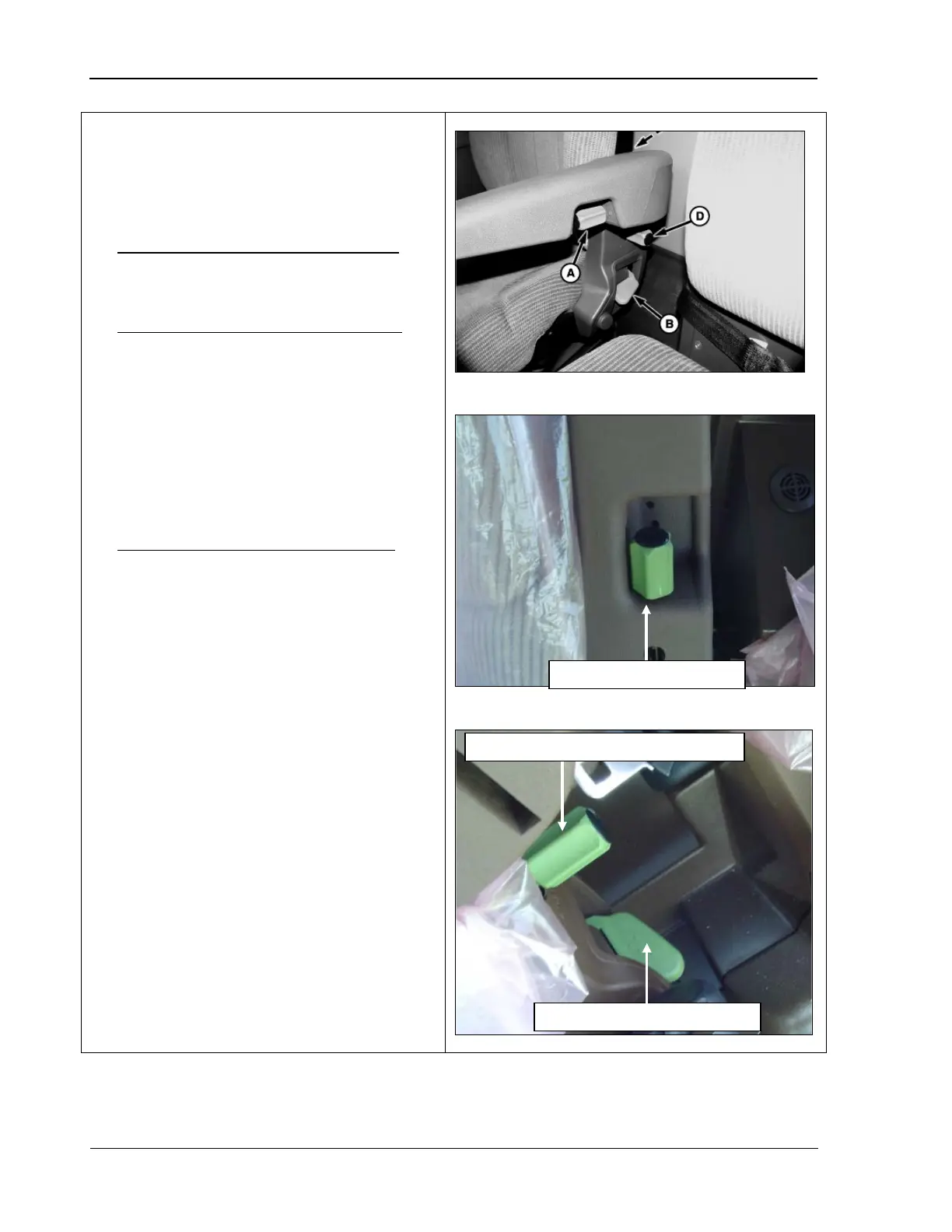

Make adjustments to the armrest and seat
back position as follows:
• (A) Left armrest angle adjust knob
: to
lower the armrest, turn knob clockwise.
To raise, turn counter clockwise.
• (B) Left armrest vertical adjust knob
: to
set armrest at desired height:
1.
Turn the knob counterclockwise to
loosen.
2.
Adjust the armrest to the desired
height.
3. Turn the knob clockwise to re-tighten.
• (C) Seat back angle adjust handle: To
change the position of the seat back, pull
the handle up and release when the seat
is in the correct position.
Armrest angle adjust knob
Left-hand armrest vertical adjust knob
Seat back angle adjust handle
30 09/04/15 MAN141
