Ground drive and Rear Axle Service 9980 Self-Propelled Peanut Combine
Install Front Wheels – Dual Wheels

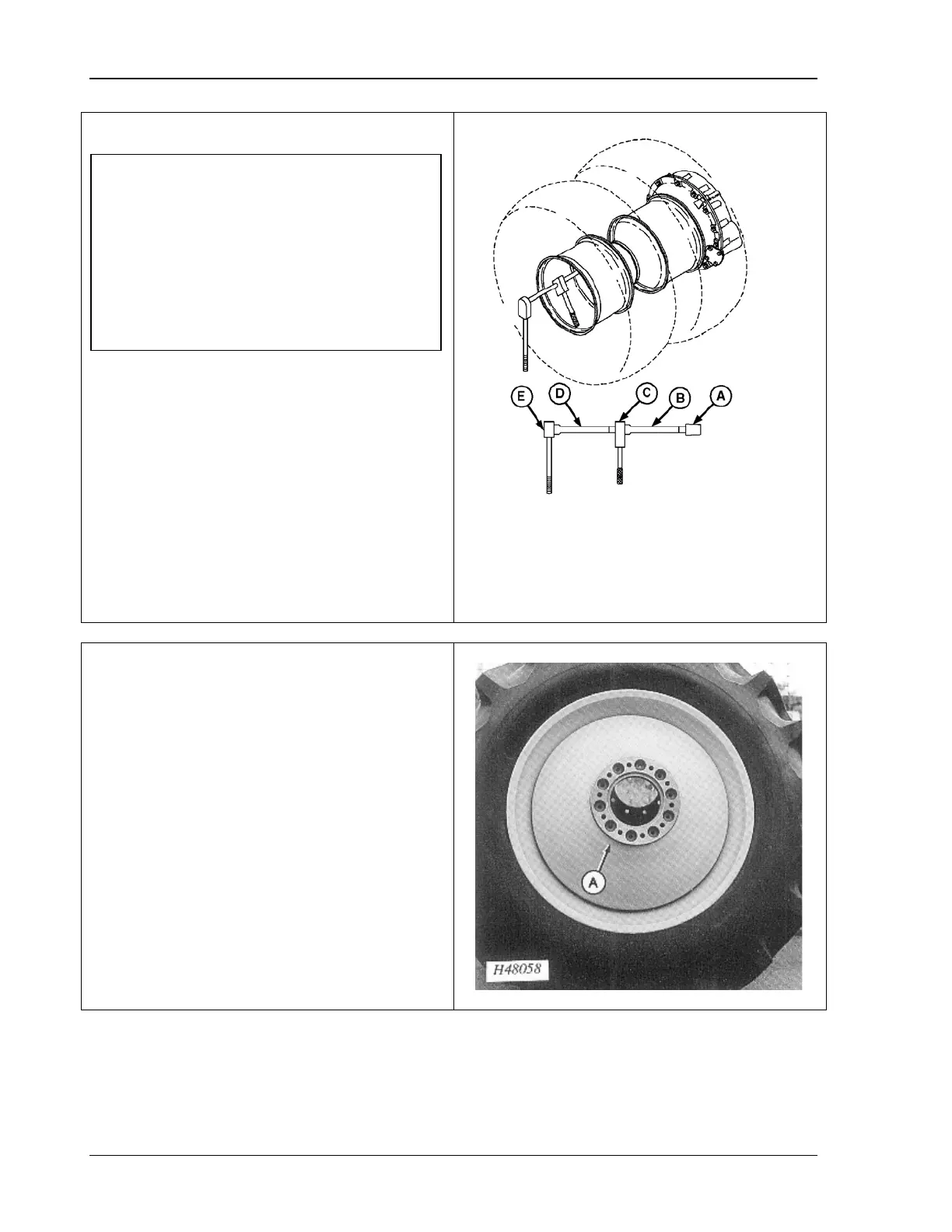

13.
Once the initial torque is complete, make
sure a final torque is done. Position tools
(A-E) on the wheel and turn bolt heads ¼
turn past the initial torque (ratchet/torque
wrench will make a full turn).
14.
Check the tire pressure and inflate as
needed (see page 277 for
pressure).
A -30 mm socket
B – Extension
C – 4-to-1 torque multiplier
D – Extension
E – Torque or ratchet wrench
Single Attach Wide Spaced
Dual Wheels (Optional)
Center attaching ring (A) allows each wheel to
be individually attached to machine.
Attaching ring lets you install or remove your
outer wheels without removing the inner drive
wheels. This makes it
machine for loading or unloading from a trailer,
or when a narrow transport width is needed.
IMPORTANT! Final wheel bolt torque is
extremely high and cannot be used using
common hand tools and a torque wrench.
A Four-to-One Torque Multiplier is required
to meet final wheel bolt torque
specifications. To achieve high torque
results, final torquing must be done with
tires on ground and with multiplier handle
against inside of rim.
288 09/04/15 MAN141
