9980 Self-Propelled Peanut Combine Operator’s Station
Auxiliary Power Outlet Strip
and Service ADVISOR
Diagnostic Connector

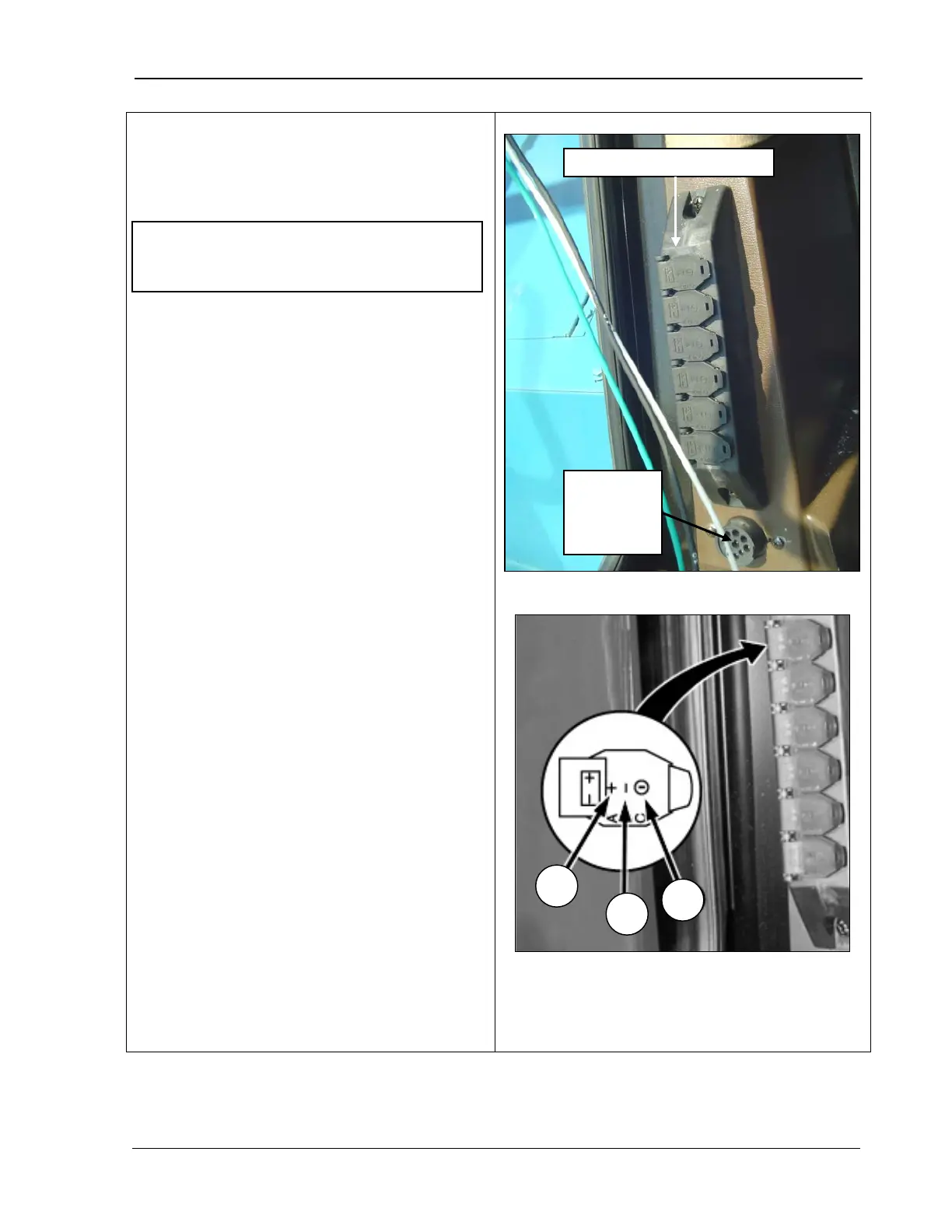

The auxiliary power outlet strip (top photo) is
equipped with six additional electrical outlets,
which are located at lower rear of right-hand
window. These outlets provide key-
switched
or unswitched power.
The service ADVISOR diagnostic connector
provides the ability to c
onnect a laptop
computer to diagnose the machine if needed.
The spade terminals of the outlet strip are as
follows:
A – Direct positive power, on at all times.
B – Ground
C – Auxiliary power
, when the key switch is
ON.
A – Direct positive power
B – Ground
C – Auxiliary power
NOTE! The maximum combined current
draw for all outlets is 30 AMPS.
C
B
A
Auxiliary power outlet strip
Service
ADVISOR
diagnostic
connector
