9980 Self-Propelled Peanut Combine Ground Drive and Rear Axle Service
Install Front Wheels – Dual
Wheels
1.

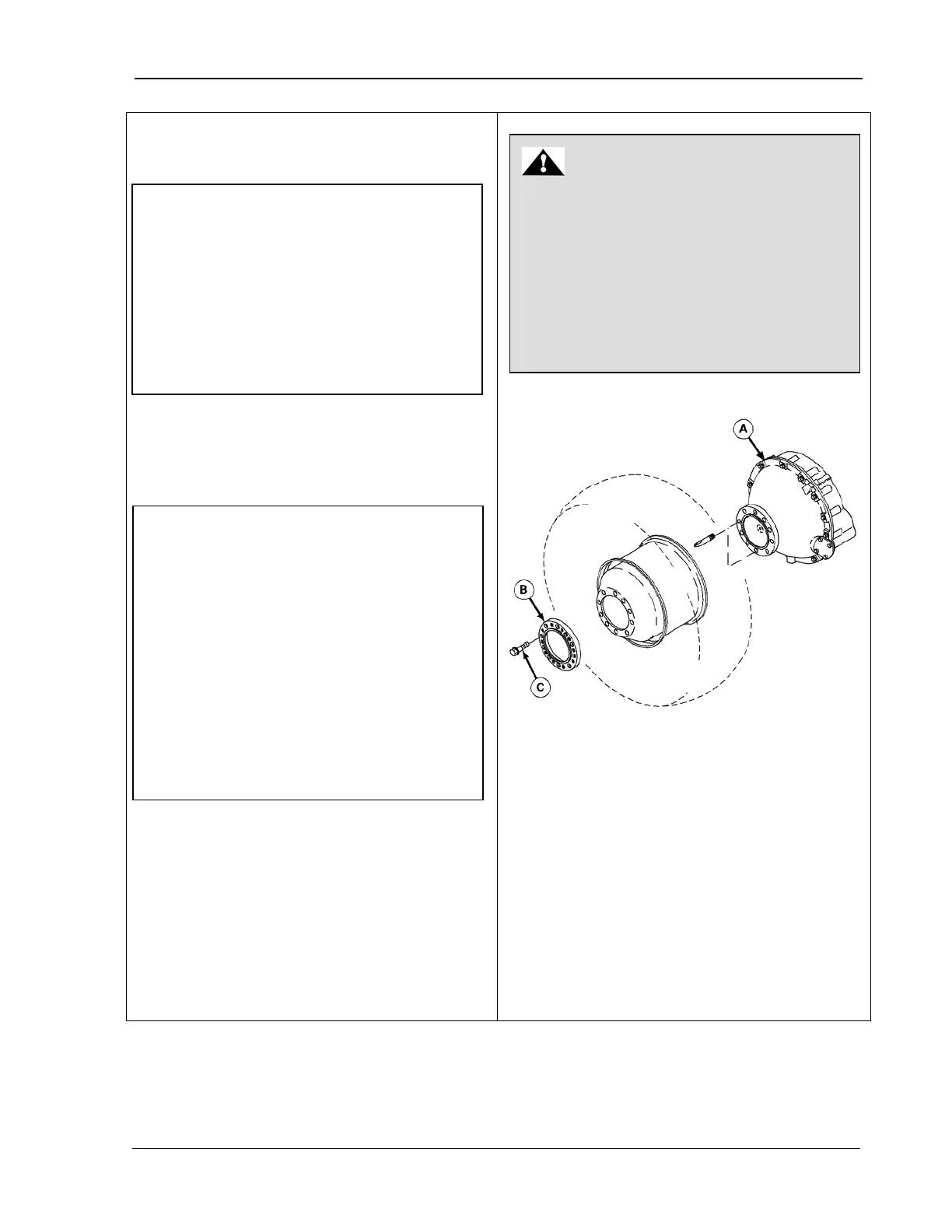

Install pilot studs (A) (sketch) in top and
bottom holes of drive hub. Stud threads
must bottom out in hole so the inner end is
flush with the inside of the hub.
2. Position inner wheel on studs with bottom
end of tire cleats to front and down.
3.
Attach wheel with spacer ring (B) and
wheel bolts (C). Wheel bolt heads fit
inside larger unthreaded holes.
4. Remove pilot studs and replace with wheel
bolts.
A – Pilot stud
B – Spacer ring
C – Wheel bolts (8 used)
CAUTION
Dual wheels are heavy (approximately 340
kg (750
lb) without liquid ballast) and
difficult to handle due to extreme offset of
tire and rim. When handling wheels, off
centered weight can suddenly shift,
making wheel handling awkward and the
wheel difficult to control. To avoid
personal injury, two service technicians are
needed to control wheel handling.
NOTE! If installing dual wheels, both inner
and outer wheels are positioned so bottom
end of the tire cleats are facing towards
the front and down. The tired MUST be
installed as directed or the machine will not
be drivable.
Pilot stud H138607 is strongly
recommended to help guide wheels into
position.
IMPORTANT! Wheel bolts MUST be
clean and oil-free when installed and
torqued. Torque values specified in the
following procedures are for clean, dry
wheel bolts. Lubricating oil reduces friction
and thread bite to overload bolts.
Due to countersunk design of spacer ring,
i
nner wheel bolts can be checked and
torqued when outer wheel is removed.
Inner wheel is installed over drive hub (rim
dished in) positioning tire close to
machine.
MAN141 09/04/15 285
