Electrical System Service 9980 Self-Propelled Peanut Combine

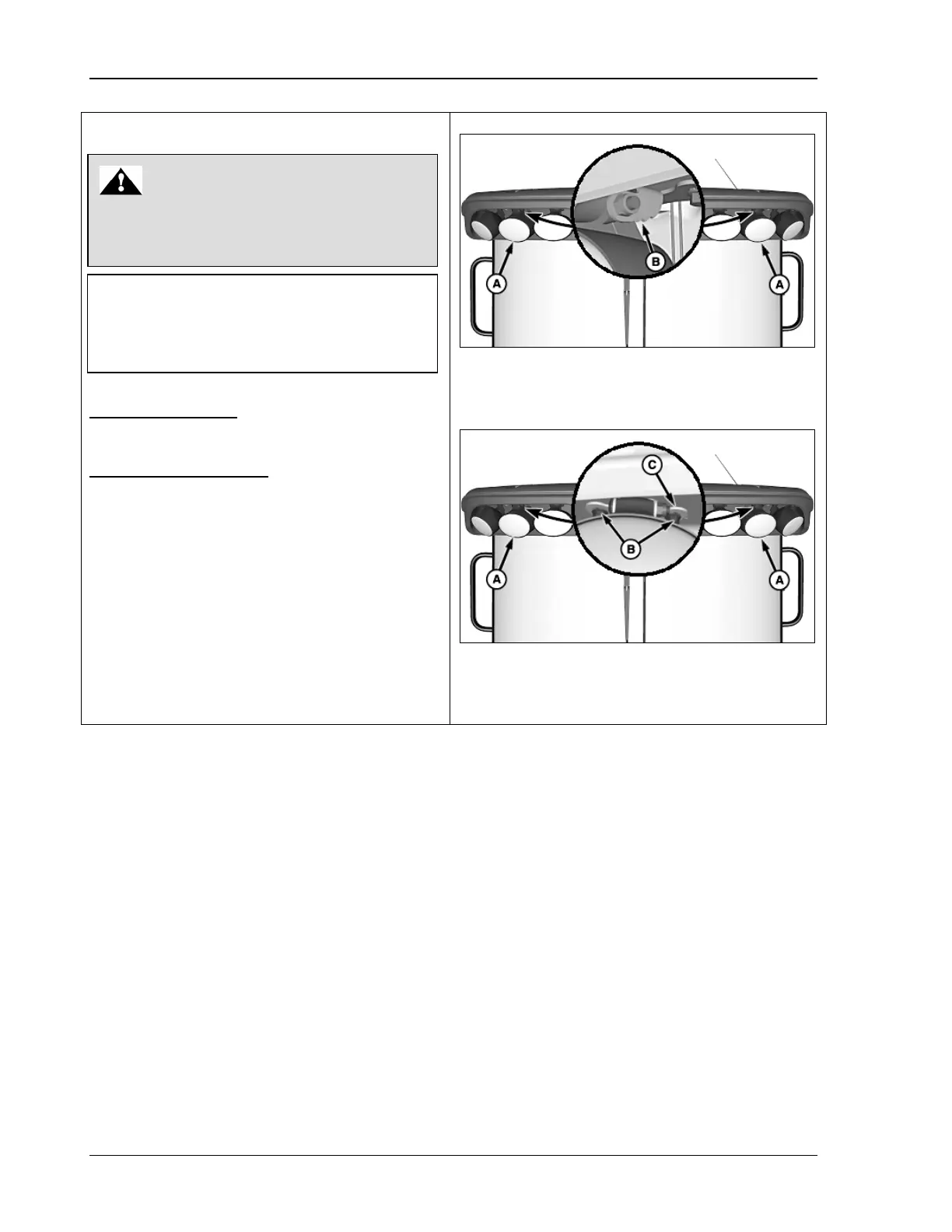

Vertical adjustment: Rotate light assembly to
the first notch (top photo).
Horizontal adjustment
: To adjust light
assemblies, loosen cap screws and rotate
light bracket toward the center of the cap and
tighten cap screws (bottom photo).
A – Light assemblies
B – first notch
A – Light assemblies
B – Cap screws
C – Light bracket
Raise feeder house and lower safety stop
before replacing or adjusting headlights.
NOTE! Vertical adjustment of High
Intensity Discharge (HID) Xenon light
assemblies must be rotated to first notch to
achieve correct light angle.
266 09/04/15 MAN141
