9980 Self-Propelled Peanut Combine Ground Drive and Rear Axle Service
Preparing Dual Wheels for
Service
Refer to the following directions whenever
front wheels (outer and inner) need to be
removed
and installed on a dual wheel
machine. Inner wheel cannot be removed
without first removing outer wheel.
Pay close attention to CAUTION statements
as they address your safety, the safety of
others and safe operations of the machine.
Remove Front Wheels – Dual
Wheels

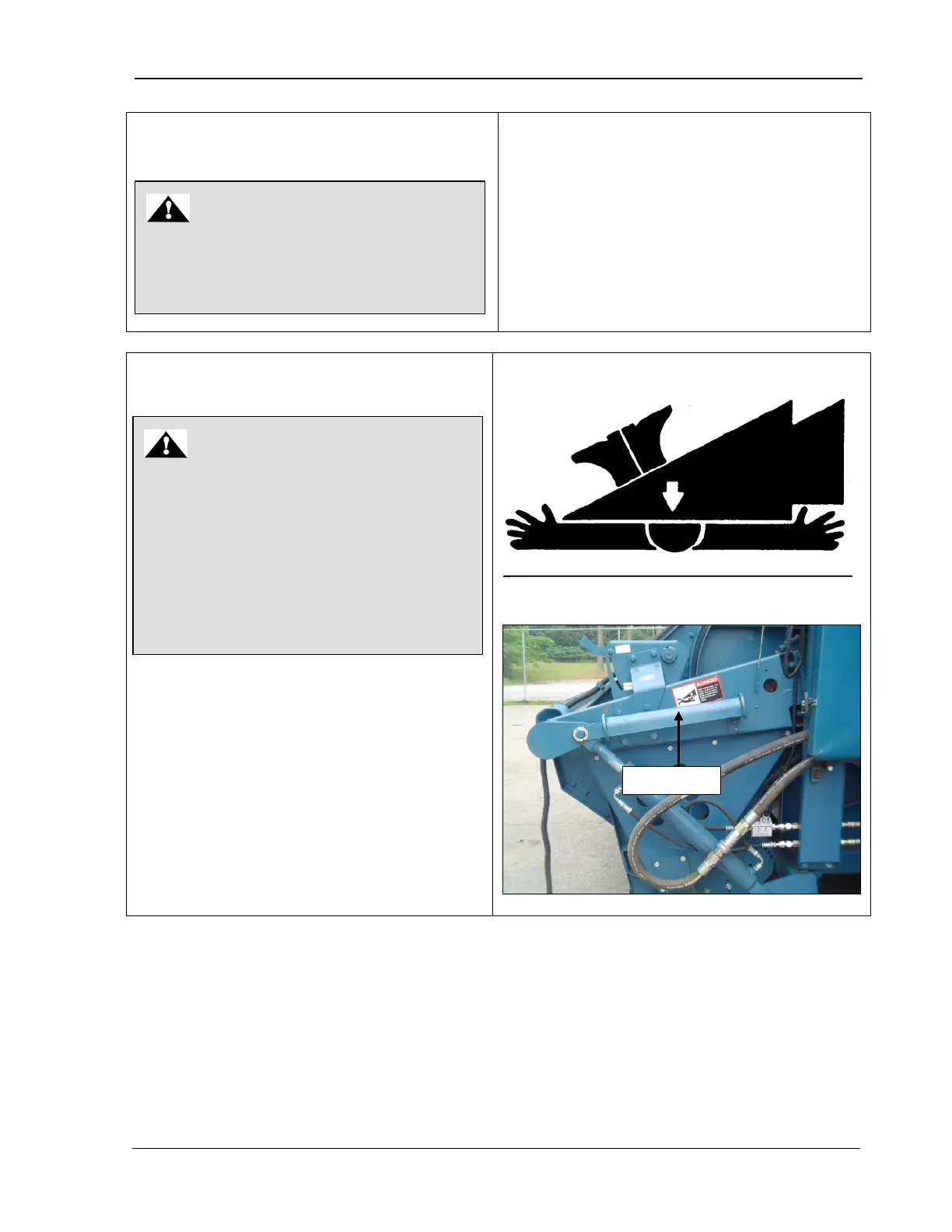

1. Raise feeder house and lower safety stop
(bottom photo).
2.
With front tires on the ground, loosen
wheel bolts one full turn for both the inner
and outer wheels. Do NOT remove at this
time.
Do NOT attempt to operate machine in the
field with outer dual wheels removed.
Machine damage can occur.
To avoid injury or death, raise feeder
house and lower safety stop before
starting installation. Some assembly steps
will require to work under the feeder
house.
Without safety stop engaged, feeder
house can suddenly lower, causing serious
crushing injury or death.
MAN141 09/04/15 283
