9980 Self-Propelled Peanut Combine Electrical System Service

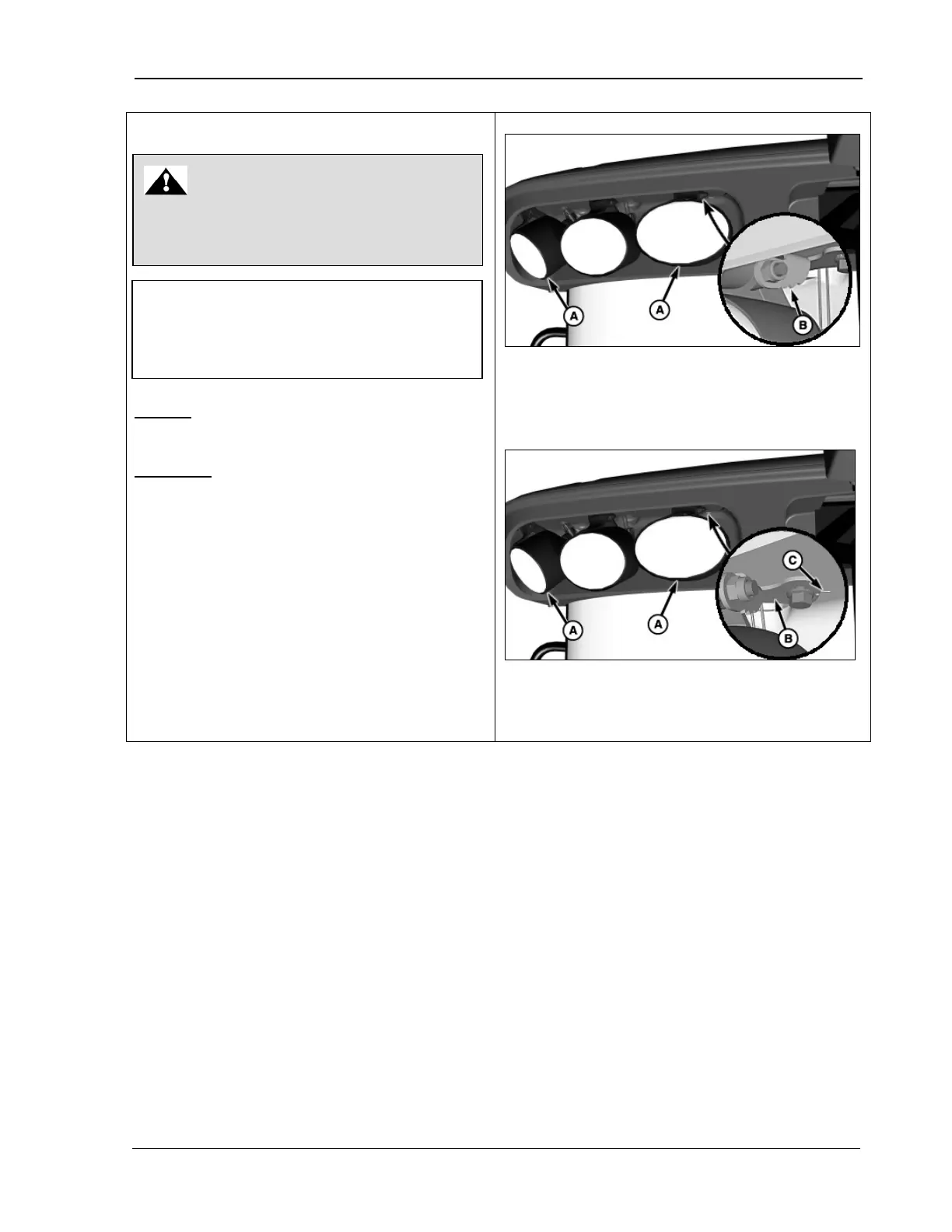

Vertical: Move the light assembly to the next
notch to adjust.
Horizontal: To adjust the light assemblies (A),
loosen the cap screws and rotate the bracket
(B) until the notch aligns with the indicator line
(C).
A – Light Assemblies
B – Notches
A – Light assemblies
B – Bracket
C – indicator line
Raise feeder house and lower safety stop
before replacing or adjusting headlights.
NOTE! The vertical adjustment of the light
assemblies can be rotated up or down
three notch positions to achieve the correct
lighting angles.
MAN141 09/04/15 259
