Ground drive and Rear Axle Service 9980 Self-Propelled Peanut Combine
Adjustment
If the gearshift lever is hard to shift, it does not
necessarily mean that the cable needs
adjustment. The following can also cause
hard shifting:
• A damaged, dirty,
cable. For these problems, inspect, clean,
adjust, or replace the cable as needed.
•
Internal transmission problems. If you
suspect a transmission problem, see your
AMADAS/John Deere dealer.
To adjust the linkage:
1. Shift the tran
smission into second gear.
The gear shift lever should be leaning
slightly forward when in second gear.
2.

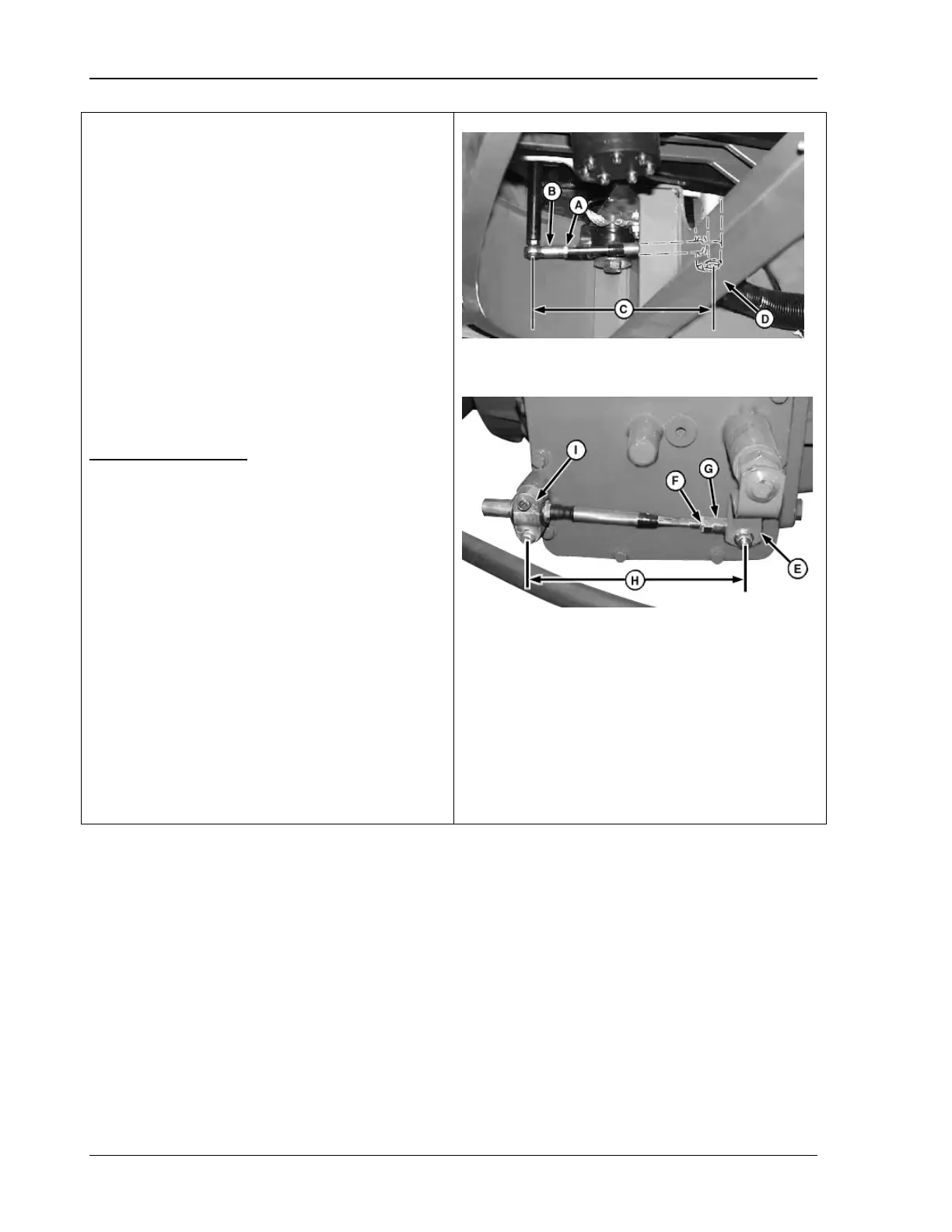

From under the cab, loosen nut (A) and
adjust balljoint (B) to get 248 mm (9 3/4 in.)
in distance C. Do NOT adjust clamp.
3. At the transmission, shift arm (E) should be
straight down as shown. Loosen nut (F)
and adjust balljoint (G) until the stud on the
balljoint aligns with the hole in the shift arm
(E).
4. Measure point H. It should be 237 mm (9
5/16 in). Do NOT adjust clamp (I).
A – Lock nut
B – Ball joint
C – Measurement of 248 mm (9 3/4 in)
D – Clamp
E – Shift Arm
F – Nut
G – Ball joint
H – Measurement of 237 mm (9 5/16 in)
I – Clamp
290 09/04/15 MAN141
