Amadas 9980 - Electric Fuel Pump; Filters; Primary Fuel;Water Separator Filter; Secondary Fuel;Water Separator Filter

Engine Service 9980 Self-Propelled Peanut Combine

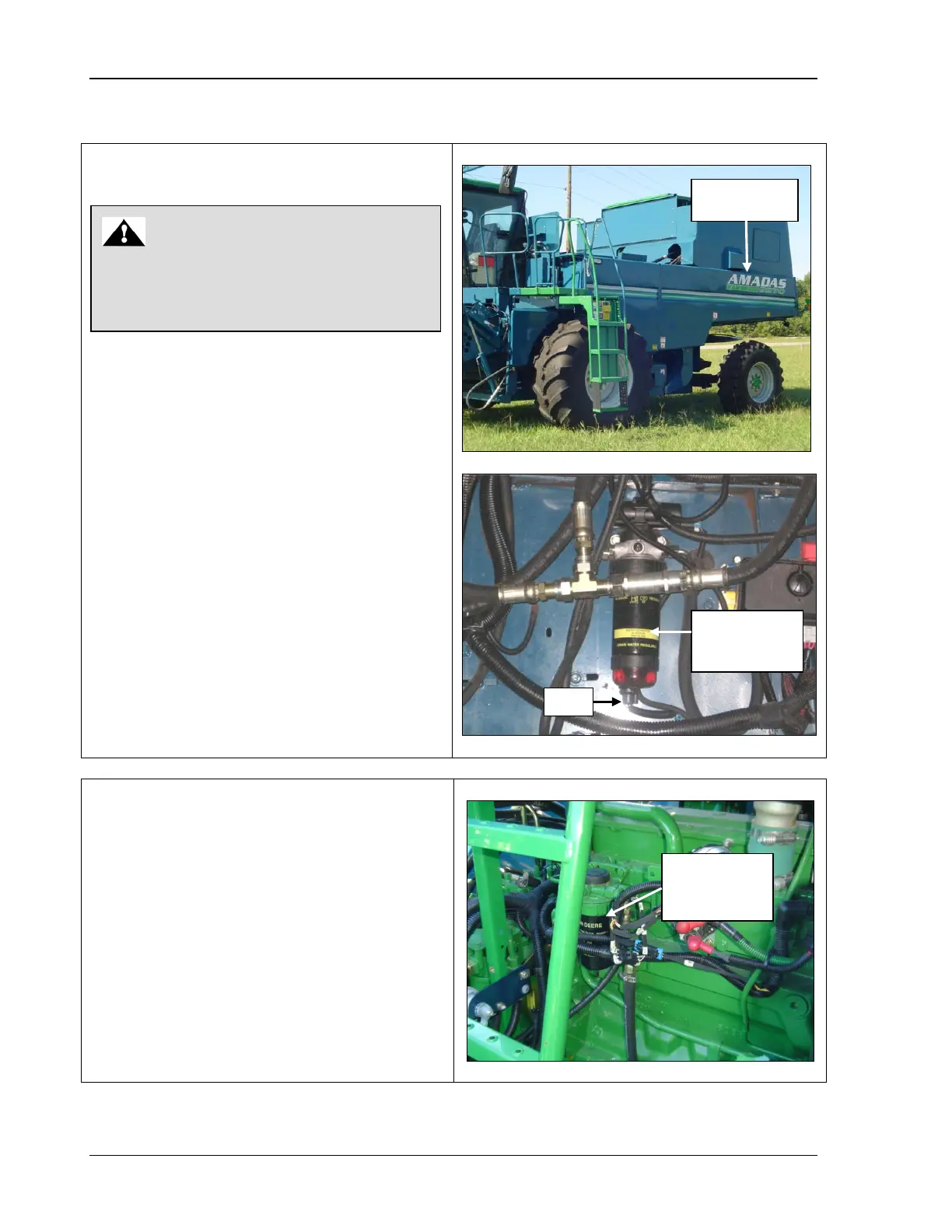

Filters
Primary Fuel/Water Separator
Filter
The primary fuel/water separator filter is
attached the electric fuel pump. It is located
under the shield on the left side of the
machine.
When the
primary fuel/water separator filter
senses water in the fuel system, a diagnostic
code is generated.
If diagnostic code ECU 97.16 displays, drain
the primary fuel/water filter using the drain. Be
sure to reset the code when complete.
Secondary Fuel/Water
Separator Filter
The secondary fuel filter is located in the
engine compartment (photo)
, behind the
ladder that accesses the top of the engine
.
Replace the secondary filter when you replace
the primary fuel/water separator filter.
Primary
fuel/water
separator filter
CAUTION
ALWAYS make sure
engine is shut off,
parking brake set, and key out of ignition
before performing any maintenance.
Filter located
under shield
Drain
Secondary
fuel/water
separator filter
