9980 Self-Propelled Peanut Combine Operator’s Station
Cab Ladder Positions

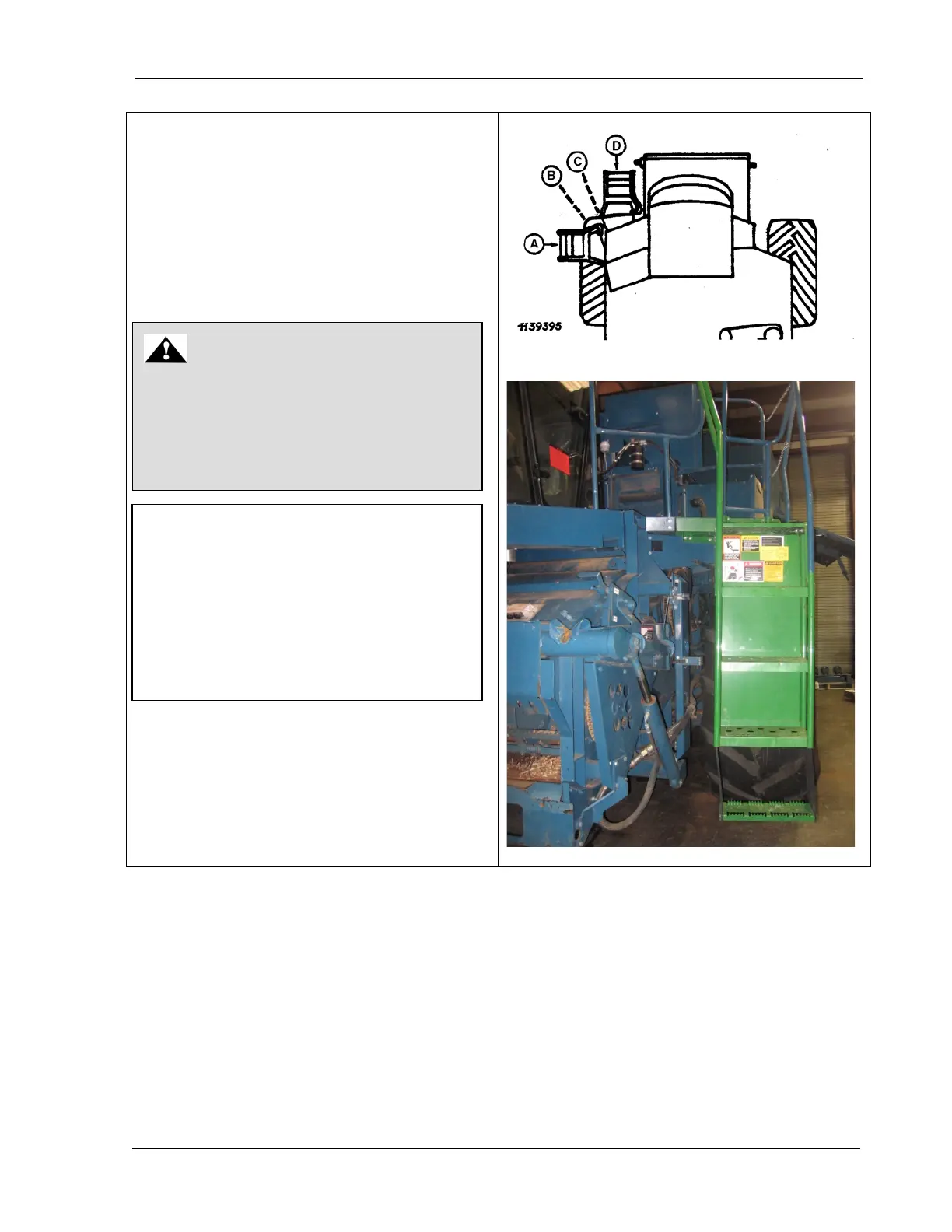

The sketch shows the different positions for
the cab ladder as follows:
A - normal operating field position
B - position for a machine with a small header,
a ladder extension, or duals
C – driving position for long ladder extension
D – roadway driving position
Always swing ladder to position D before
transporting on public roadways in order to
reduce the machine width and position
amber warning lamp toward oncoming
motorists.
IMPORTANT! Long ladder extension
1390 mm (55 in) is required on machines
equipped with dual tires, axle spacers, etc.
will interfere with the platform drive shaft
when the ladder is swung to position (D).
Raising or lowering the feeder house could
damage a ladder, drive shaft, or drive shaft
shield. Place ladder in position (C) in this
situation.
MAN141 09/04/15 23
