Ground drive and Rear Axle Service 9980 Self-Propelled Peanut Combine
Remove Front Wheels – Dual Wheels
3. Raise front end of machine with a jack.
4.
Position solid blocking under front axle.
Lower the machine onto blocking, making
sure no load shift is seen or felt.
5.
While supporting outer wheel assembly,
remove wheel bolts, spacers and front
wheels. Move wheel assemblies away
from machine.
Follow the same steps INCLUDING SAFETY
WARNINGS to remove the inner wheels.
1. Break the wheel bolts loose one turn.
2. Support the wheel assembly.
3. Remove the wheel bolts, spacer ring, and
inner wheel.

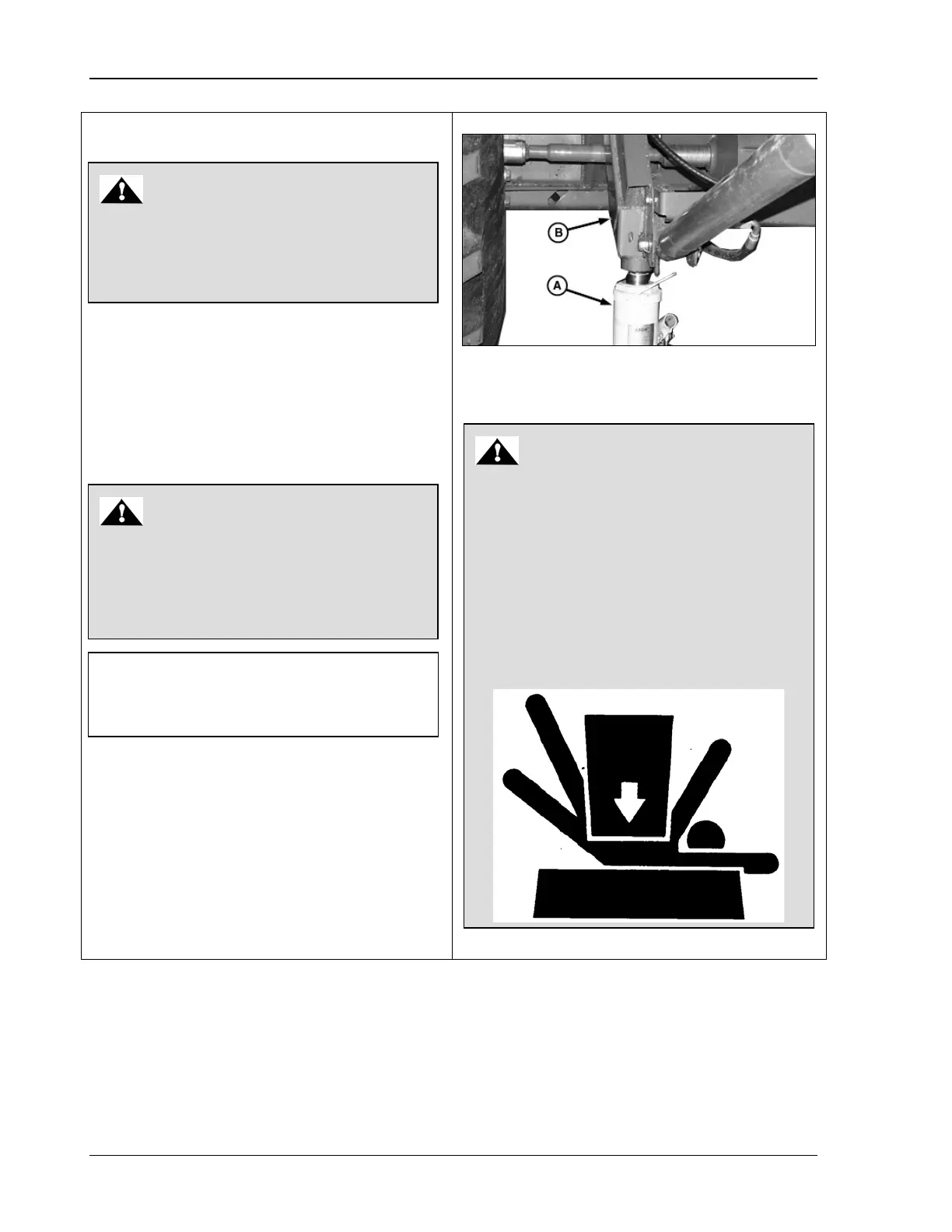

A – Jack
B – Front Axle
The jack must have a minimum lifting
capacity of 10 tons. To reduce machine
weight, the header MUST be removed.
To help prevent personal injury caused by
unexpected movement of the machine, be
sure machine is stable after blocking. Do
NOT support machine on cinder blocks,
hollow tiles or props that may crumble
under continuous load. Do NOT work on a
machine that is supported solely by a jack.
Be sure front axle rests on blocking before
attempting to remove wheels.
Wheel assemblies are heavy, awkward to
handle and difficult to control due to
extreme offset of tire and rim. Two service
technicians are required for wheel
removal.
NOTE! Outer wheels can be serviced off
of the machine while leaving inner wheels
undisturbed.
284 09/04/15 MAN141
