Amadas 9980 - Page 265

9980 Self-Propelled Peanut Combine Electrical System Service

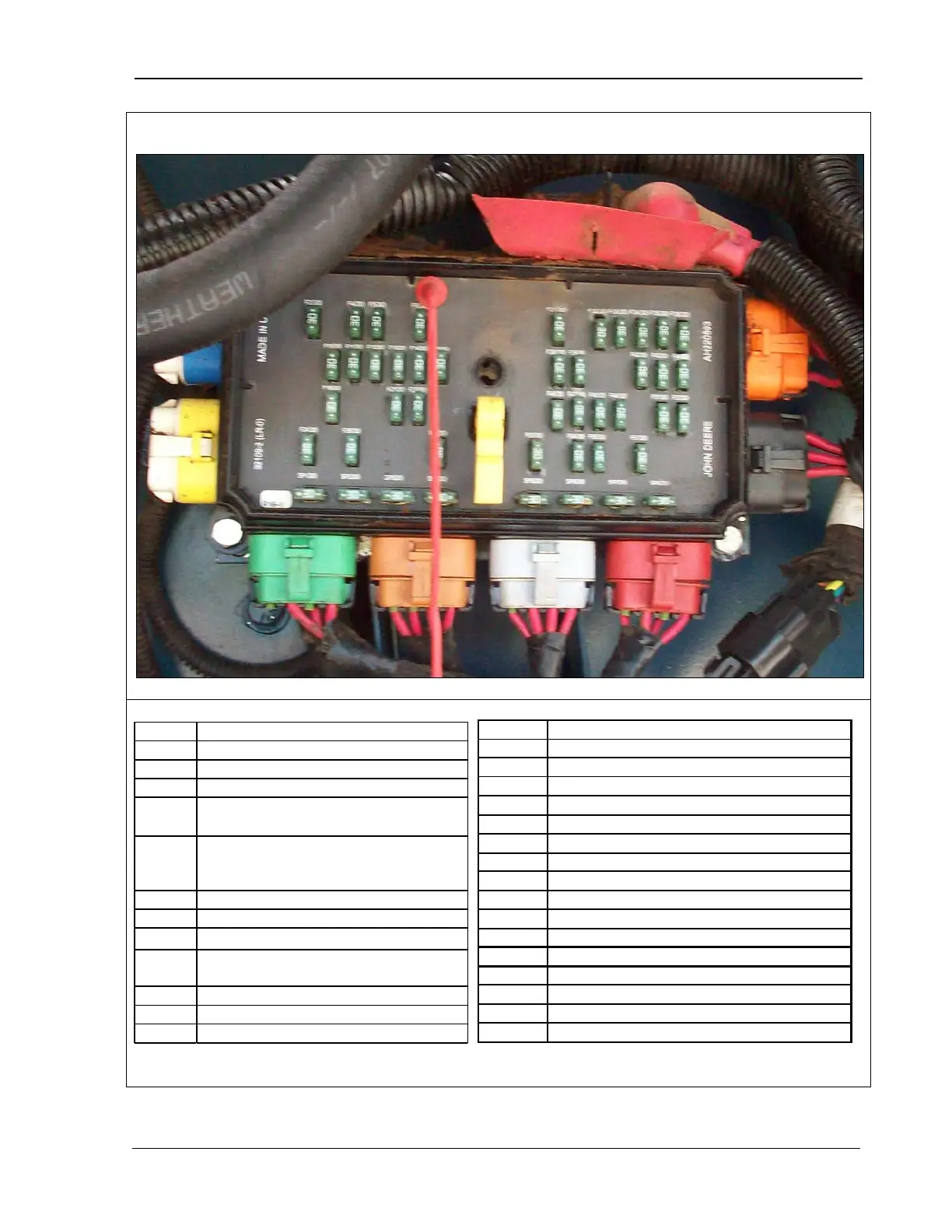

Fuse Center
NOTE! Some of the items shown may not be in use on your 9980 combine.
A Spare Fuses (30 AMP)
F1- F11 Not used
F12 Right Power Module Power 4
F13-F14 Not used
F15
Control Unit (SSU) Unswitched Power
(if equipped)
F18
Cornerpost Display Unit (CDU), Control
Unit (CAB), Air Seal Compressor,
Radio, Mirror Adjust
F21
Cab Power Module 4, Control Unit (ADU)
F22 Right Power Module Power 5
F24
Control Unit (CAB) Power 2, Ignition Switch
F26
Auxiliary Power Outlet Strip, Windshield
Wiper, Cigarette Lighter
F29 Control Unit (ECU) Power
F31 Left Power Module 1 Power 2
F33 Left Power Module 1 Power 3
F35
Contro l Unit (LC2) Power 1
F36 Left Power Module 1 Power 5
F38
Cab Power Module Power 1
F39 Control Unit (L C1) Power 1
F42
Left Power Module 2 Power 4 (if equipped)
F43 Left Power Module 1 Power 1
F44 Control Unit (L C2) Power 2
F46 Right Power Module Power 3
F47 Moisture Meter Power (if equipped)
F48 Left Power Module 1 Power 4
F49 Cab Power Module Power 2
F51 Cab Power Module Power 4, Dome Light
F52 Control Unit (L C1) Power 2
F53 Control Unit (RCU) Power 1
F54 Right Power Module Power 2
F55 Right Power Module Power 1
F57 Cab Power Module Power 3
MAN141 09/04/15 253
