9980 Self-Propelled Peanut Combine Operator’s Controls
MAN141.rev1 08/05/16 41

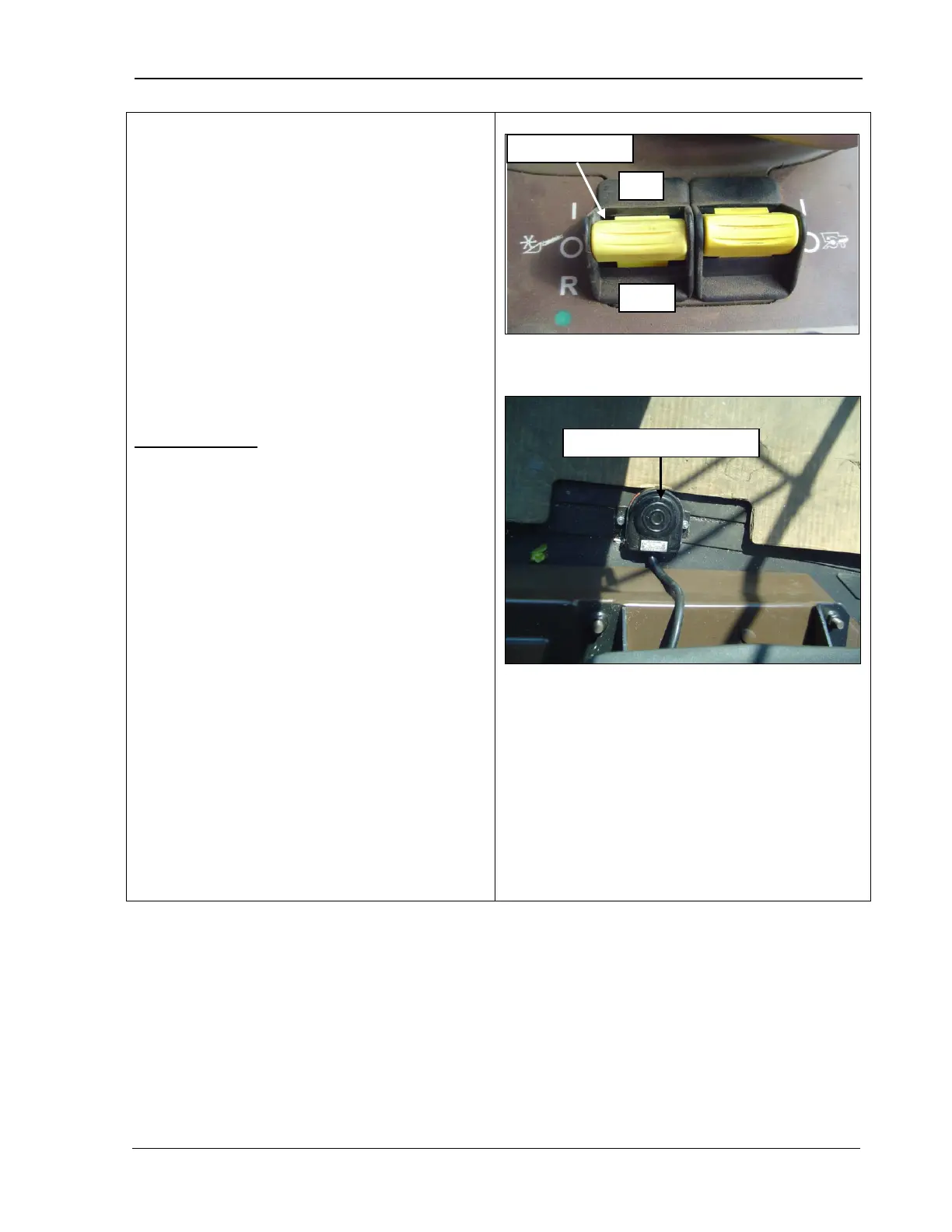

Header Engage/Header Reverse
•
The operator must be seated to operate
the header.
o If the operator leaves the seat after the
header is engaged, it will continue to
operate for five seconds before it
disengages.
o To re-
engage, sit in the seat, and turn
the switch off and then back on.
o
If the header fails to engage or stops
suddenly, sit squarely on the seat, turn
the switch off, and then turn back on to
re-engage.
Header reverse
is controlled by the header
reverse foot switch. To unplug the header:
1. Stop the forward motion of the combine.
2. Press the header reverse switch to run the
header auger in reverse and free any
“plug.”
3.
Release the switch as soon as the “plug”
is backed out. The header will return to
feeding rotation.
4.
Allow the feeder house to clear the “plug”
material before continuing forward.
5.
Resume harvesting. Do NOT attempt to
force “plugs” through by repeated cycling
of reversing drive. Repeated cycling
shortens the life of components. If a
“plug” will not clear with one or two
reverses, it will be necessa
remove it as described on the next page.
Header reverse foot switch
To Next Page
