Reference Manual ADuCM356
FLASH CONTROLLER
analog.com Rev. A | 179 of 312
FLASH CONTROLLER FEATURES
The ADuCM356 processor includes 256 kB of embedded flash
memory available for access through the flash controller. The em-
bedded flash has a 72-bit wide data bus, providing two 32-bit words
of data and one corresponding 8-bit ECC byte per access.
The flash controller is coupled with a cache controller module that
provides two arm high-speed bus (AHB) ports: one port for reading
data (DCode), and the other for reading instructions (ICode). A pre-
fetch mechanism is implemented in the flash controller to optimize
ICode read performance.
Flash writes are supported by a keyhole mechanism through arm
peripheral bus (APB) writes to memory mapped registers. The flash
controller includes support for DMA-based keyhole writes.
FLASH CONTROLLER OVERVIEW
Key flash controller features include the following:
â–º The prefetch buffer provides optimal performance when reading
consecutive addresses on the ICode interface.
â–º Simultaneous ICode and DCode read accesses. DCode has
priority on contention. Simultaneous reads are possible if ICode
returns buffered data from prefetch.
â–º DMA based keyhole writes, including address autoincrement for
sequential accesses.
â–º ECC for error detection and correction. Errors and corrections
may be reported as bus errors on the ICode or DCode bus as
interrupts or ignored.
SUPPORTED COMMANDS
The following is a summary of the commands supported by the
flash controller:
â–º Read. Supported through the ICode and DCode interfaces.
â–º Write. Provided by a keyhole mechanism through memory map-
ped registers.
â–º Mass erase. Clears all user data and program code.
â–º Page erase. Clears user data or program code from a 2 kB page
in flash.
â–º Signature. Generates and verifies signatures for any set of
contiguous whole pages of user data or program code.
â–º Abort. Terminates a command in progress.
PROTECTION AND INTEGRITY FEATURES
Protection and integrity features include the following:
â–º A fixed user key is required for running protected commands
including mass erase and page erase.
â–º Optional and user definable write protection for user accessible
memory.
â–º Optional 8-bit ECC. Enabled by user code, off by default.
FLASH CONTROLLER OPERATION
A flash block of 256 kB is available for user code and data, from
0 to 0x3FFFF. It is not possible to execute flash while erasing a
flash page at the same time. The flash provides a 64-bit data bus,
plus eight bits for corresponding ECC metadata. The memory is
organized as a number of pages, each 2 kB in size, as well as 256
bytes reserved for ECC. See Figure 49 for details on flash, and
Figure 50 for a full over overview of the flash page structure.

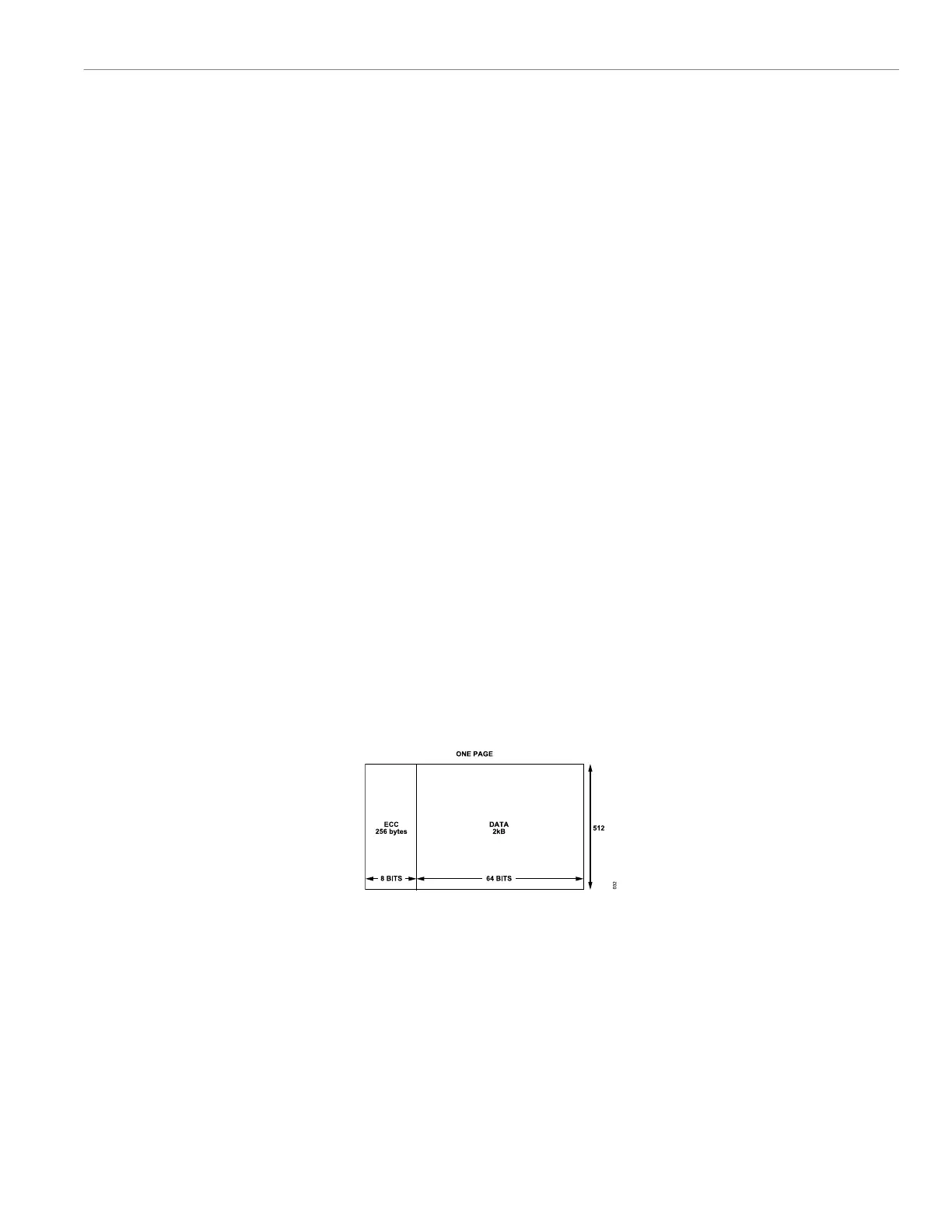

Figure 49. ADuCM356 Flash Page Structure
