71 - Maintenance Procedures

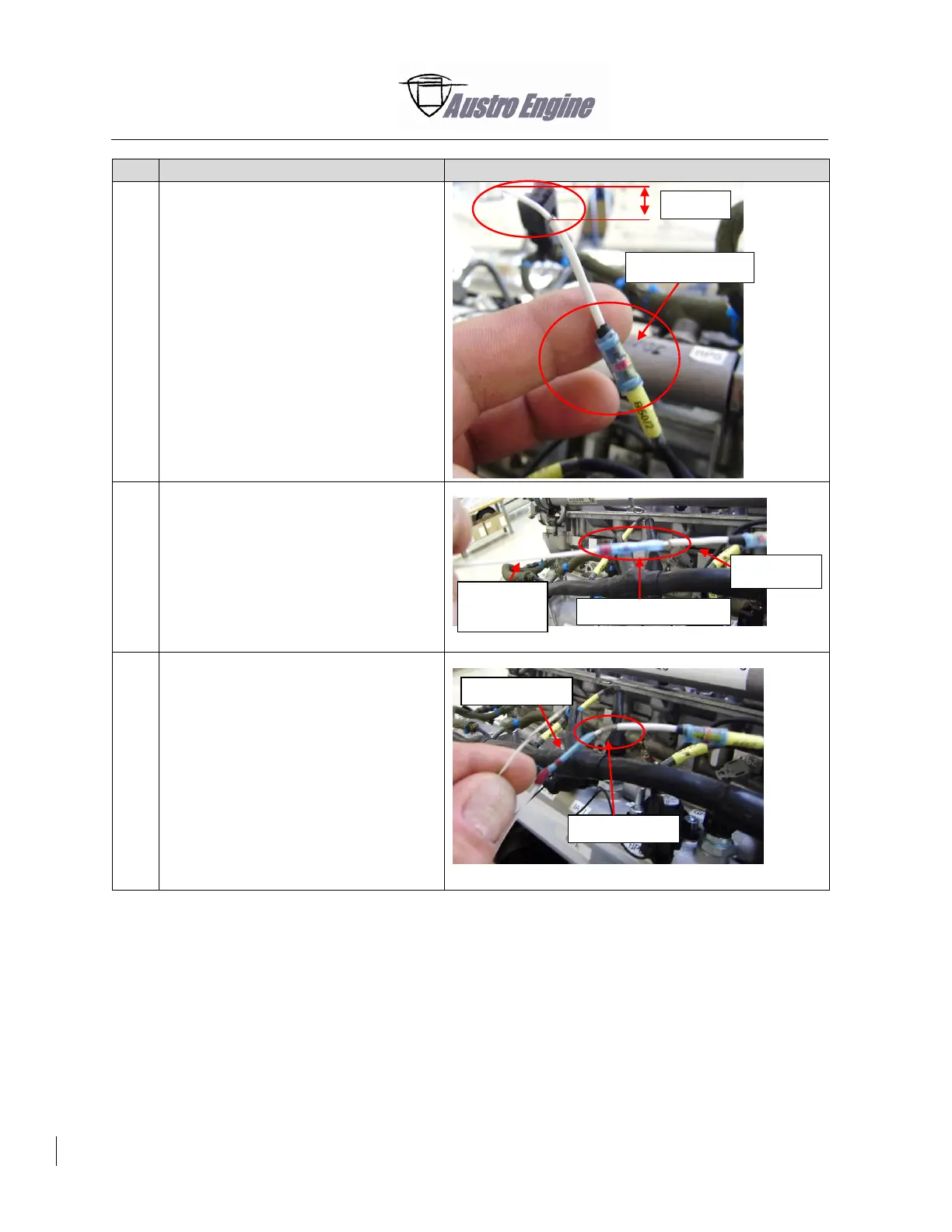

Remove approx. 10 mm (± 2 mm) of
the insulation with shielding of the
remaining wire.
Put the solder sleeve over the cable of
the remaining engine harness.
You will need the solder sleeve for
electrical connection at Step (6).
Connect the single wire of the
remaining engine harness and the
white single wire of the repairing kit
cable E4A-90-R16-000 with the inline
crimp.
Remove 5 mm (±2 mm) of the
insulation behind the inline crimp
installed at Step (4).
Make sure that you do not cut off the
shielding below the insulation.
