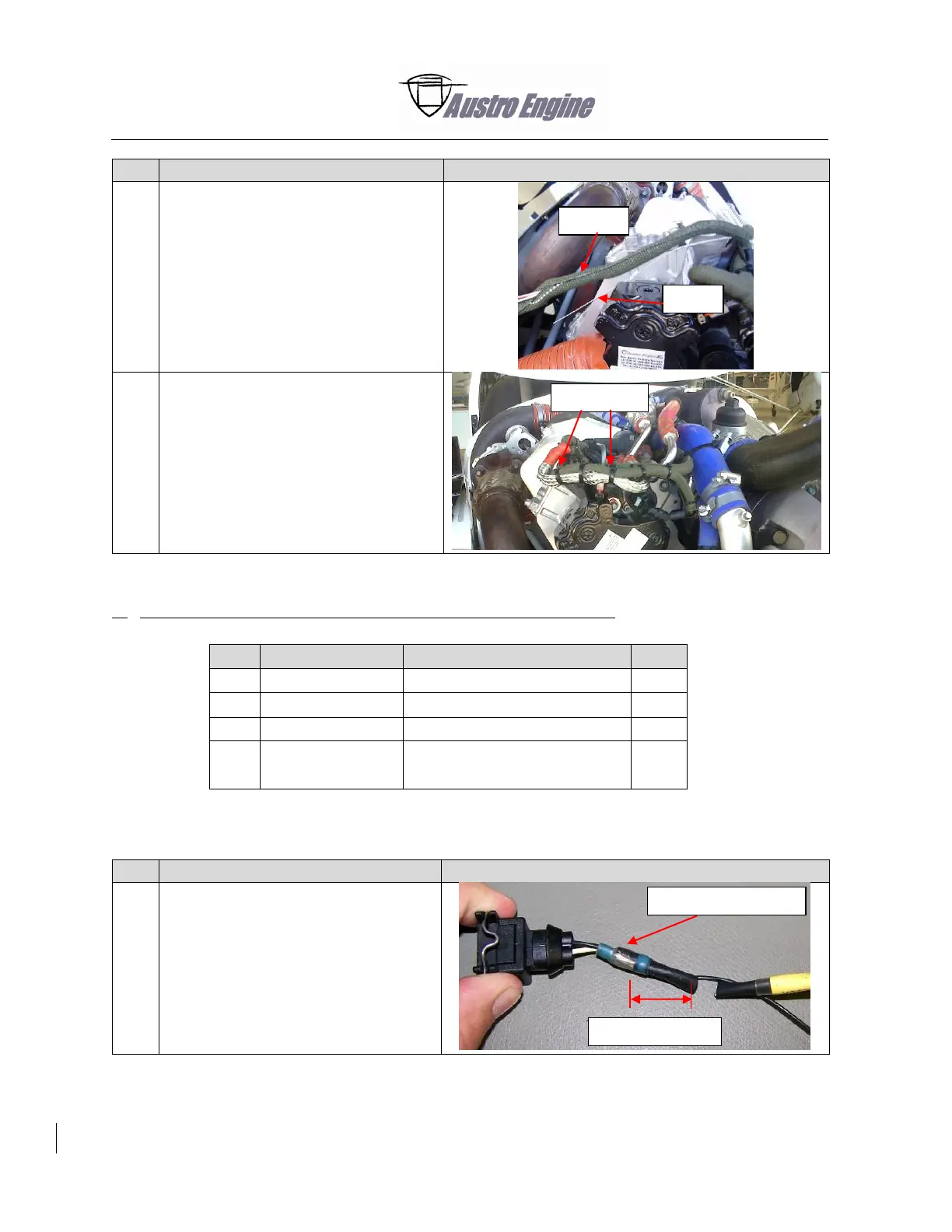

E4 Series
Maintenance Manual
Power Plant
E4.08.04
Rev. 29
Page 297
71 -Maintenance Procedures
01-Jul-2020
Detail Steps/Work Items
Key Items/References
(9)
Put the Roundit over the repair kit
cable and the engine wiring harness.
Decrease the length of the Roundit, if
necessary.
Make sure that the pigtail comes out
of the Roundit.
Make sure that a ring termination is
installed.
(10)
Install the shielding E4A-95-100-000
as an auxiliary protection.
Refer to the Installation Manual
E4.02.01.
Use the cable ties from the repair kit
for attachment.
c) Replace the connector for the Boost Pressure Actuator (BPA)
Pos.
Partnumber
Description
Qty.
1
E4A-90-R17-000
Assy Repair Kit Cable
1
2
-
Cutter
1
3
-
Hot Air Gun
1
4
-
Crimp Tool for
TE (Tyco) D-436-37 crimp
1
Detail Steps/Work Items
Key Items/References
(1)
Cut off the worn connector of the BPA
branch.
Roundit
Pigtail
Cable Ties
Old Solder Sleeve
10 mm (+5 mm)
