Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Power Plant
Page 298
E4.08.04
Rev. 29
71 - Maintenance Procedures
01-Jul-2020
Detail Steps/Work Items
Key Items/References

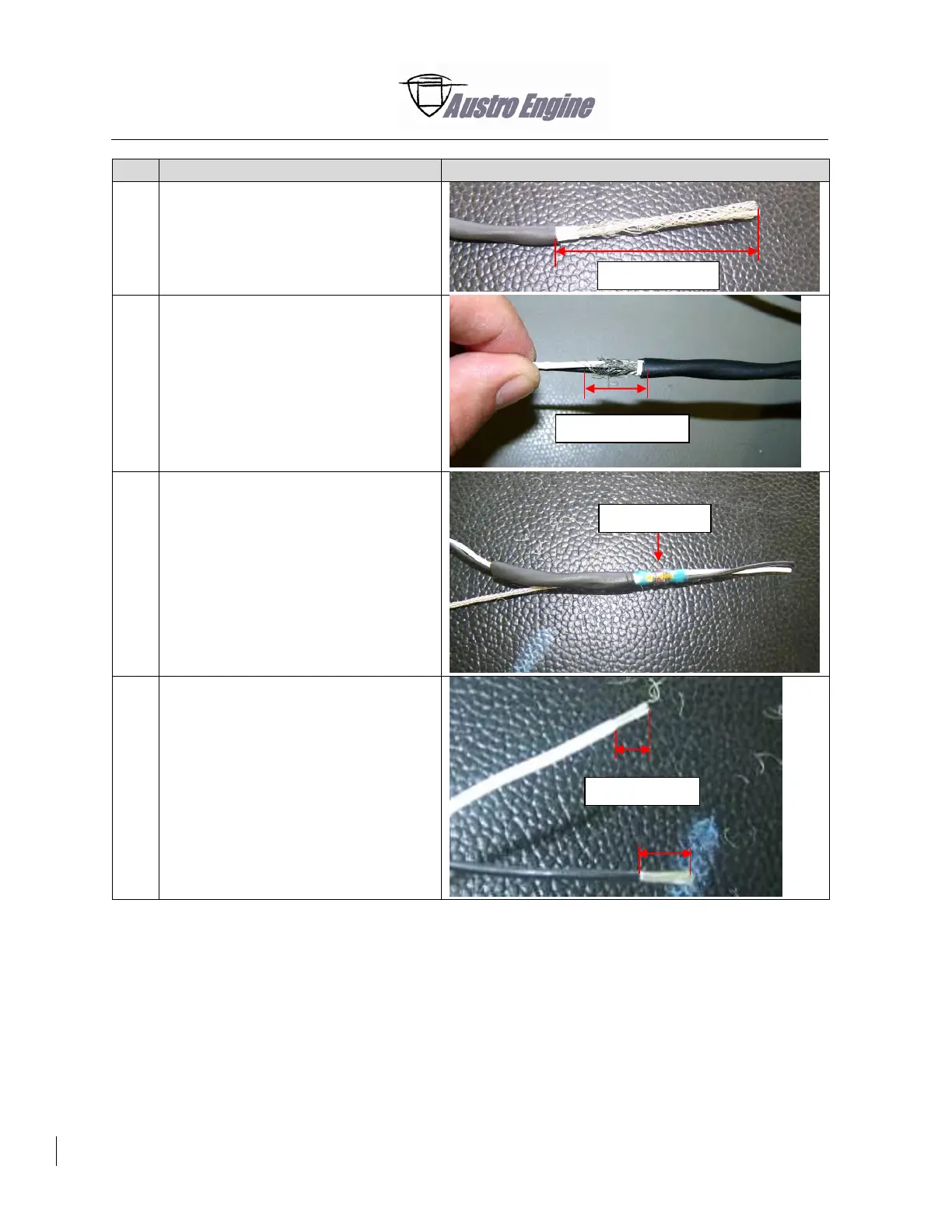

(2)
Remove the black and white cable
insulation.
(3)
Remove the shielding.
(4)
Put the solder sleeve over the wiring
harness cable, above the shielding.
Apply heat to the solder sleeve until it
connects with the cable and the
shielding.
Use a hot air gun (300°C – 350°C).
(5)
Remove the isolation of the single
wire on the end of the engine harness
and the cable of the repair kit.
50 mm (+5 mm)
10 mm (+5 mm)
Solder Sleeve
5 mm (±1)
