E4 Series
Maintenance Manual
Power Plant
E4.08.04
Rev. 29
Page 299
71 -Maintenance Procedures
01-Jul-2020
Detail Steps/Work Items
Key Items/References
(6)

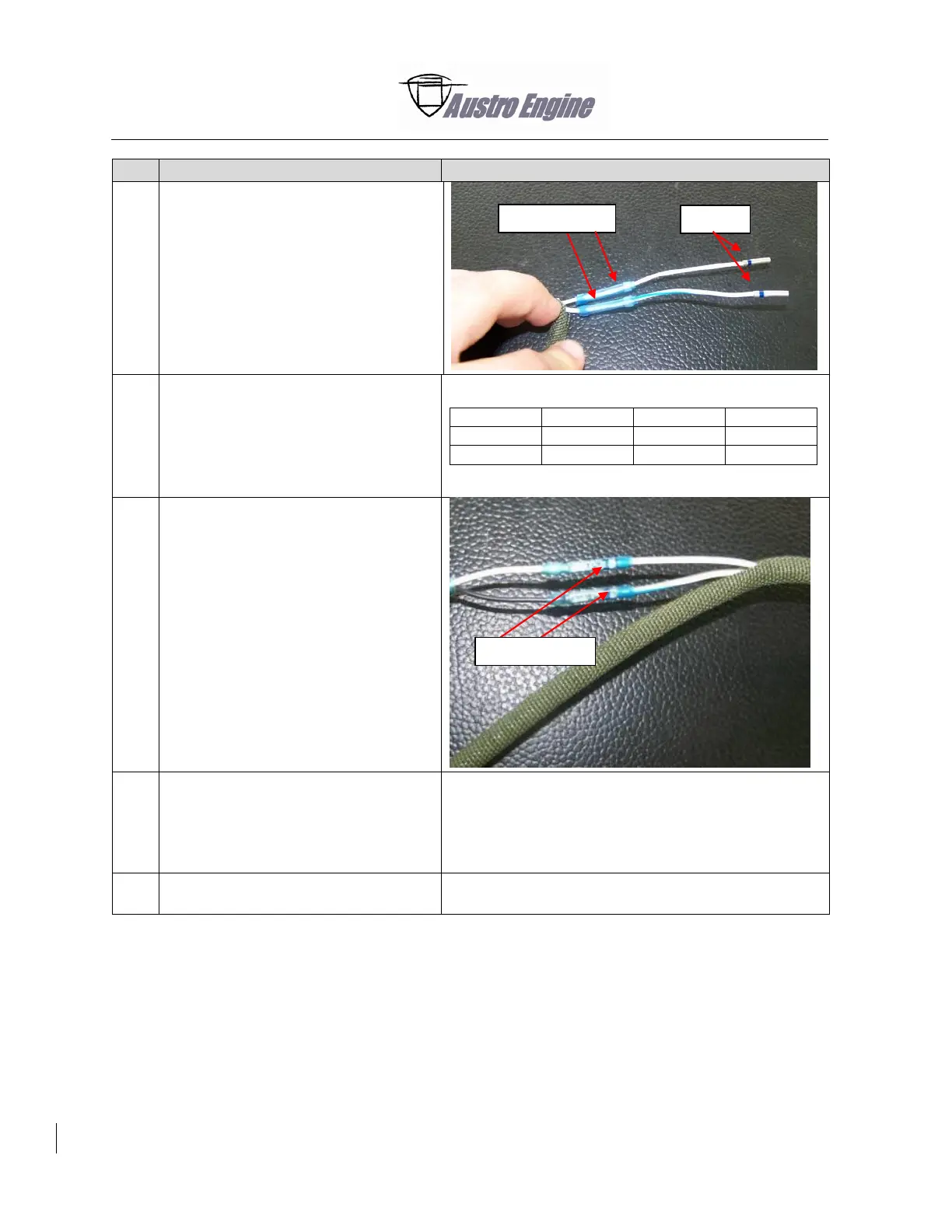

Put the isolation sleeve of the inline
crimp over the single wire of the
engine harness.
Put the splice crimp at the end of each
single wire of the repair kit cable E4A-
90-R17-000.
(7)
Connect the single wires of the engine
wiring harness with the repair kit
cable. Use the inline crimp sleeve.
Make sure that the connection
between pins is correct.
Connector
Pin
Connector
Pin
ECU PWR
M
Y31/5 (BPA)
1
ECU PWR
a
Y31/5 (BPA)
2
(8)
Put the isolation sleeve of the inline
crimp over the inline crimp sleeve.
Apply heat to the isolation sleeve until
the isolation sleeve seals the splice
crimp and the single wires.
Use a hot air gun (300°C – 350°C).
(9)
Put the chafing protection Roundit
over the repair kit cable and the
engine wiring harness.
Decrease the length of the Roundit, if
necessary.
(10)
Attach the engine harness with the
cable ties from the repair kit.
Isolation sleeves
Crimps
Isolation Sleeve
