Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Installing the new 10x 3.5-inch HDD backplane

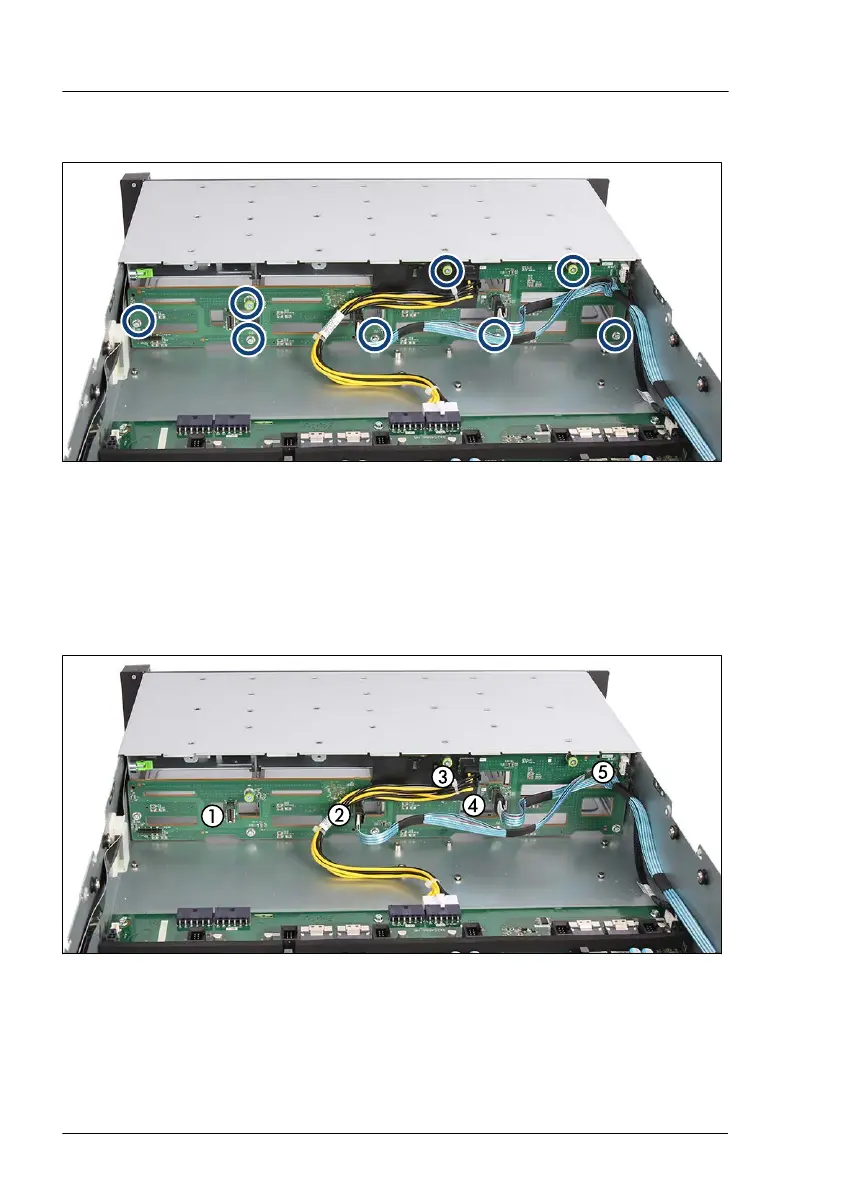

Figure 64: Installing the 10x 3.5-inch HDD backplane
▶
Insert the HDD backplane into the chassis.
▶
Fasten the eight screws (see circles).
▶
If applicable, install the internal RAID riser module, see "Installing the
internal RAID riser module" on page
271.
Figure 65: Connecting cables to the 10x 3.5-inch HDD backplane
▶
Connect the following cables to the HDD backplane:
Hard disk drive (HDD) / solid state disk (SSD)
154 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
