Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Installing the new 24x 2.5-inch HDD backplane and the switch board

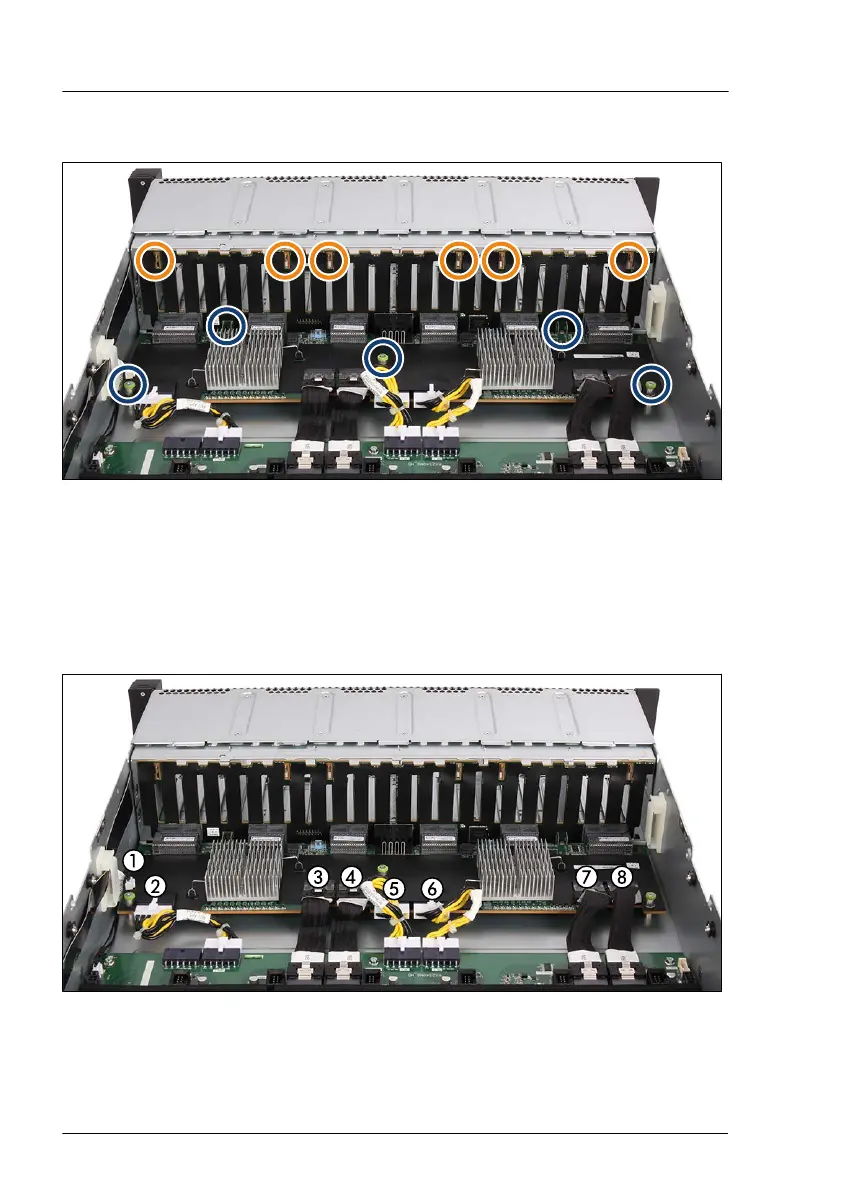

Figure 90: Installing the 24x 2.5-inch SAS HDD backplane and the switch board
▶
Position the HDD backplane on the six hooks (see orange circles).
▶
Push the HDD backplane downward. Make sure that the HDD backplane
and the switch board fits into the guide pins.
▶
Fasten the screws (see blue circles).
Figure 91: Connecting cables to the switch board
▶
Connect the following cables to the switch board:
Hard disk drive (HDD) / solid state disk (SSD)
186 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
