"Getting access to the component" on page 56
.
▶
"Removing the rear air grid 2" on page 83.
Installing the rear HDD cage 2

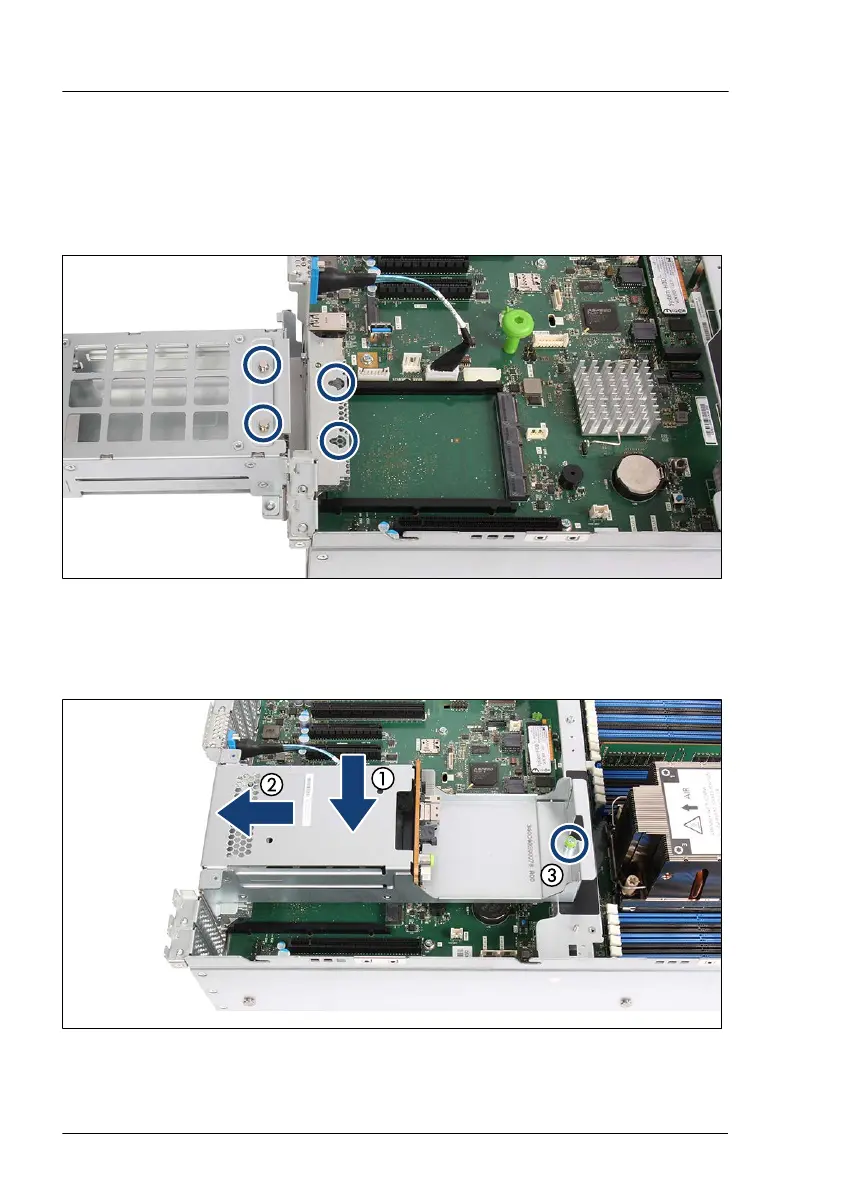

Figure 117: Position of the recess holes and guiding pins of the HDD cage
▶
Notice the two recess holes on the chassis and the two guiding pins on the
HDD cage (see circles).
Figure 118: Installing the rear HDD cage
Hard disk drive (HDD) / solid state disk (SSD)
218 Upgrade and Maintenance Manual RX2540 M6
