Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

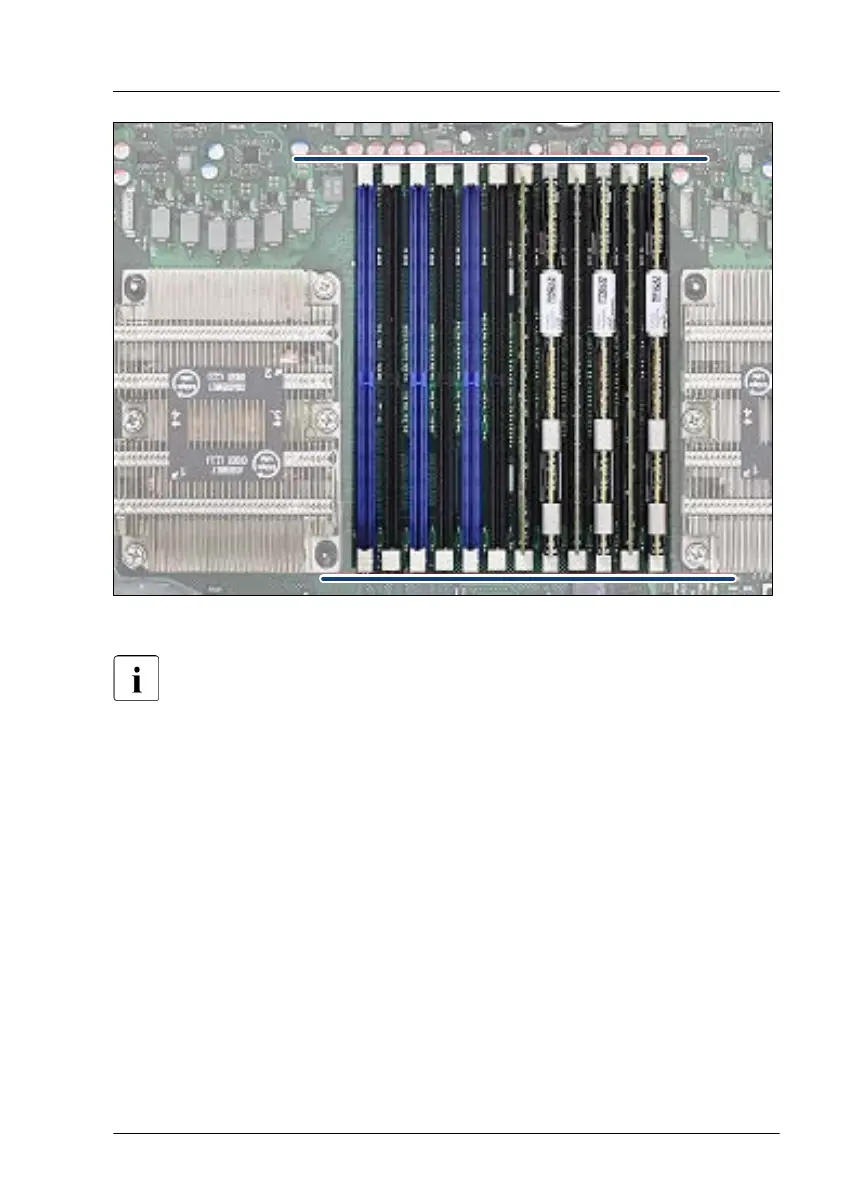

Figure 216: Correct position of securing clips
To improve the contact of the memory module perform the following
steps:
▶
Eject the memory module again by pressing out the securing clips at each
end of the memory slot.
▶
Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
▶
Check if all securing clips are in the correct position, see Figure 216.
Concluding steps
▶
"Installing the air duct" on page 79.
▶
"Reassembling" on page
60.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
Main memory
RX2540 M6 Upgrade and Maintenance Manual 339

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
