Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

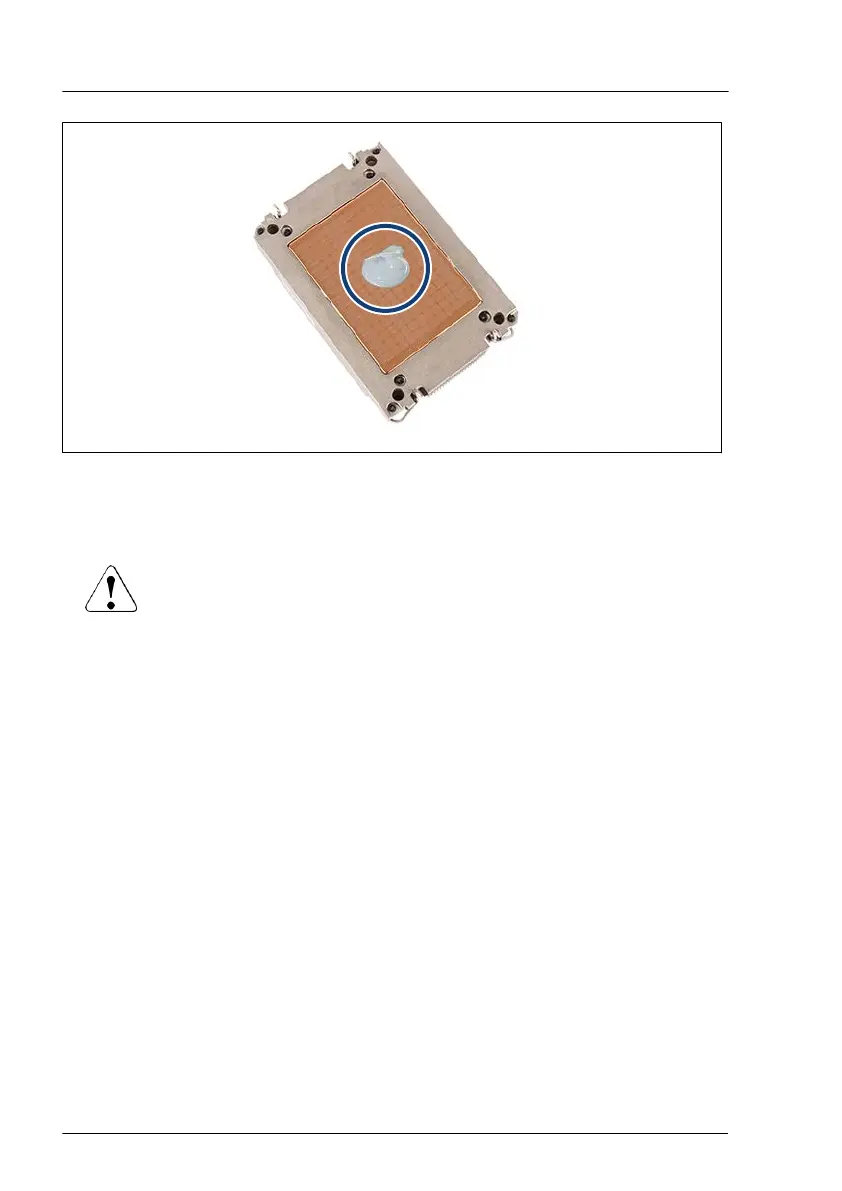

Figure 236: Applying the thermal paste
▶
Apply a small point-shaped amount of thermal paste (1.0 gram, see
description above) to the center of the heat sink lower surface as shown.
CAUTION
▶
Do not mix different types of thermal paste.
Installing the CPU and heat sink
▶
Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
▶
Install the CPU, see "Installing the CPU" on page
350
.
▶
Install the heat sink, see "Installing the heat sink" on page 352.
Concluding steps
▶
"Installing the air duct" on page 79.
▶
"Reassembling" on page 60.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
▶
If applicable, "Installing the front cover with lock" on page 69.
Processor (CPU)
364 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
