Fujitsu PRIMERGY RX2540 M6 - Page 383

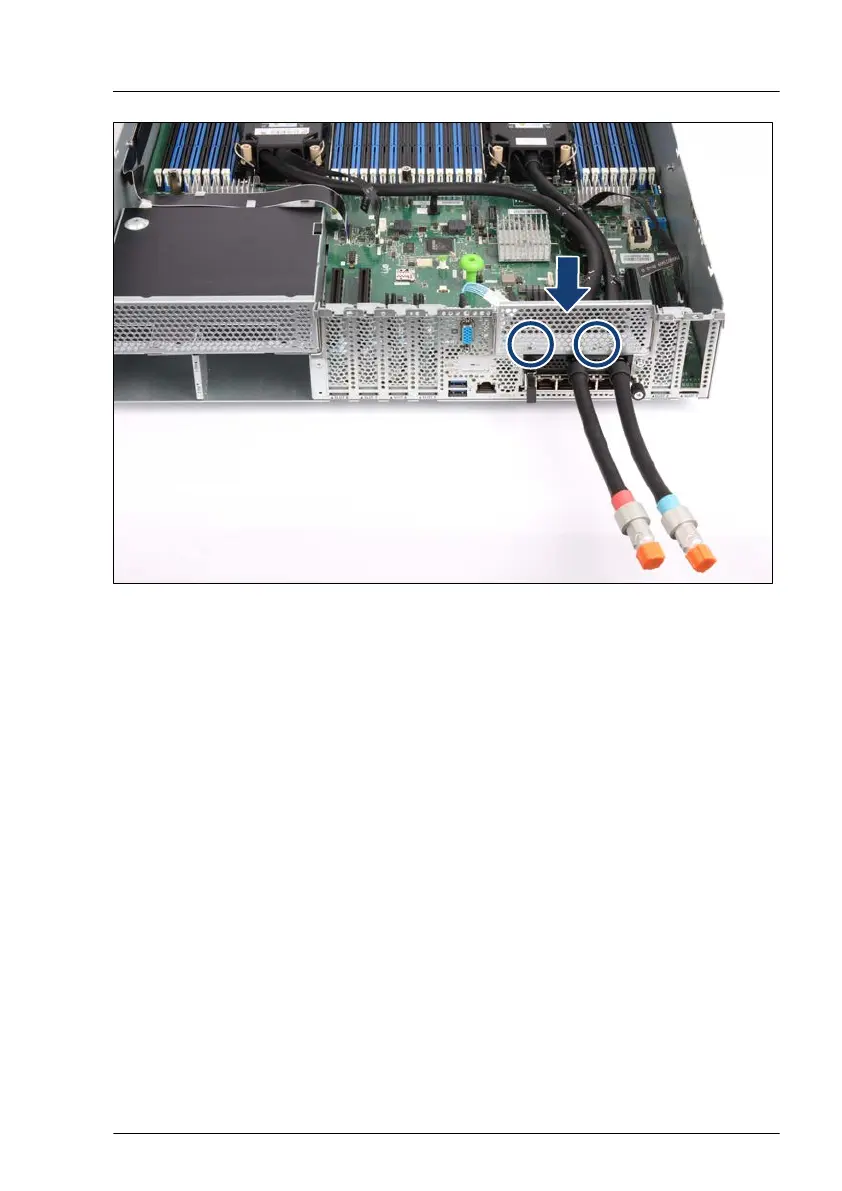

Figure 252: Installing the LC kit (C)
▶
Install the air grid (see arrow).
▶
Fasten the two screws of the air grid (see circles).
▶
Install the OCP dummy cover or the OCP module, see "Installing the OCP
dummy cover" on page
253
or "Installing the OCP module" on page 251.
▶
Install the cross bar, see "Installing the cross bar" on page 81.
Concluding steps
▶
If applicable, install the riser module, see "Installing the riser module 2" on
page 73.
▶
"Installing the air duct" on page 79.
▶
"Reassembling" on page 60.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
Liquid cooling (LC)
RX2540 M6 Upgrade and Maintenance Manual 383
