Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

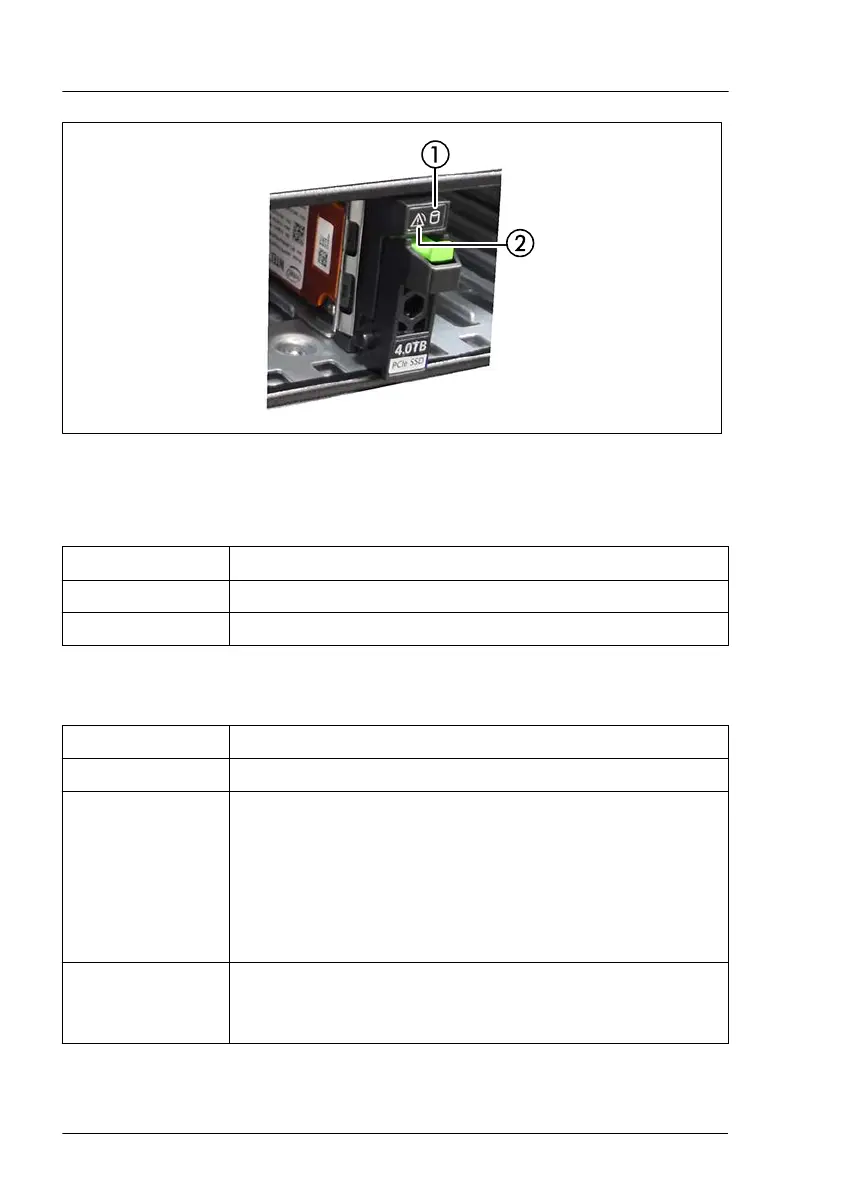

Figure 384: Indicators on an EDSFF SSD module
Access indicator (1)
Status Description
off The HDD/SSD is inactive.
green on The HDD/SSD being accessed.
Error indicator (2)
Status Description
off No HDD/SSD error detected.
orange on An HDD/SSD error has been detected.
Possible causes:
– The drive is defective and needs replacing.
–
A RAID rebuild process has failed.
– The HDD/SSD module has not been inserted correctly.
flashing orange
slowly
HDD/SSD RAID rebuild is in progress. Data is being
restored after replacing a drive that has been combined
into a RAID array
.
Appendix A
558 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
