V CAUTION!
Keep the dummy cover for future use. If a power supply unit is
removed and not immediately replaced by a new one, a dummy cover
must be replaced in the slot to comply with applicable EMC
regulations and satisfy cooling requirements.
6.2.3 Installing a hot-plug power supply unit

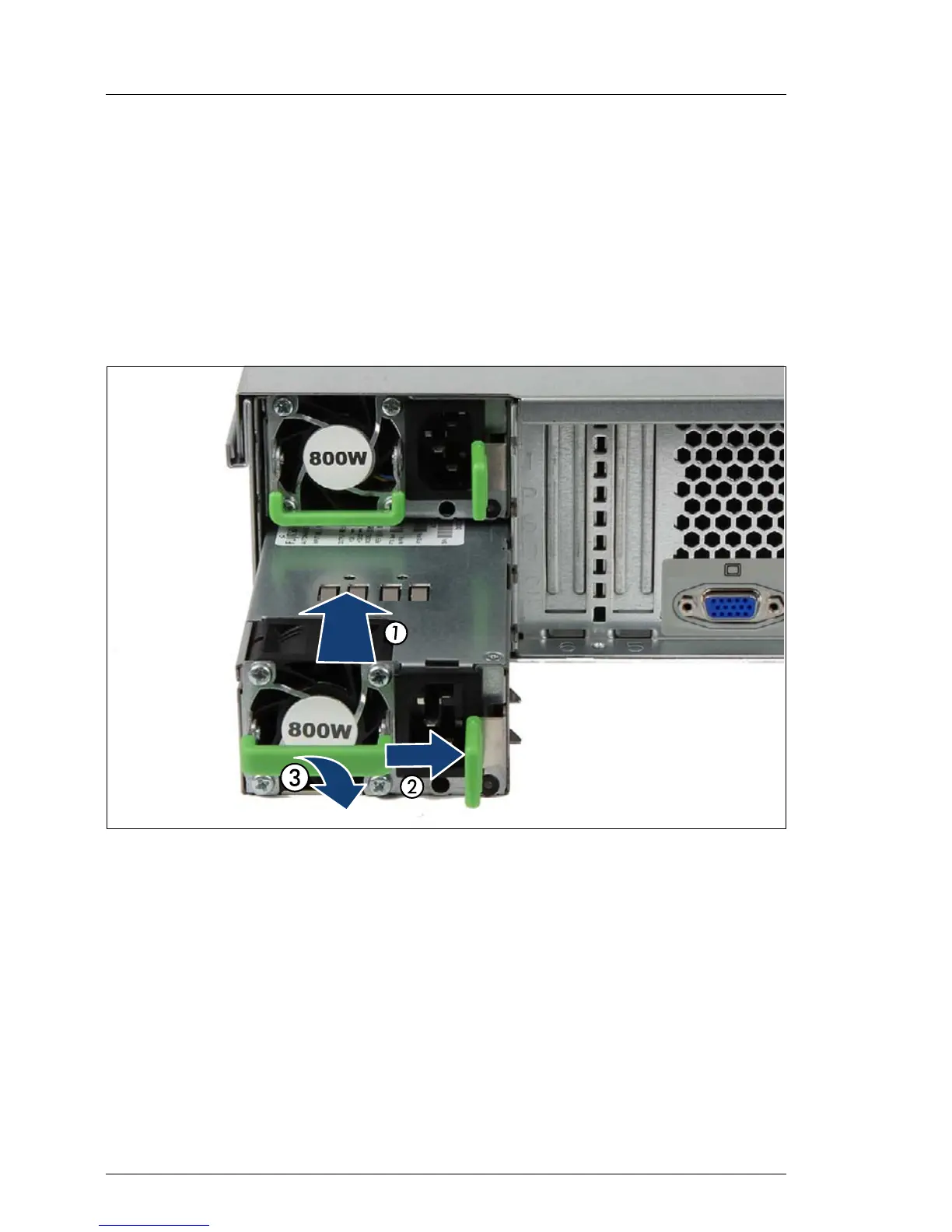

Figure 18: Installing the hot-plug power supply unit
Ê Push the power supply unit into its bay (1) as far as it will go until the release
latch snaps in place (2).
Ê Fold down the handle on the power supply unit(3).
V CAUTION!
Ensure that the power supply unit properly engages in its bay and is
locked in position in order to prevent it from sliding out of the chassis
during transportation.
