274 Upgrade and Maintenance Manual
RX300 S8
Processors
11.3.2.1 Opening the load plate

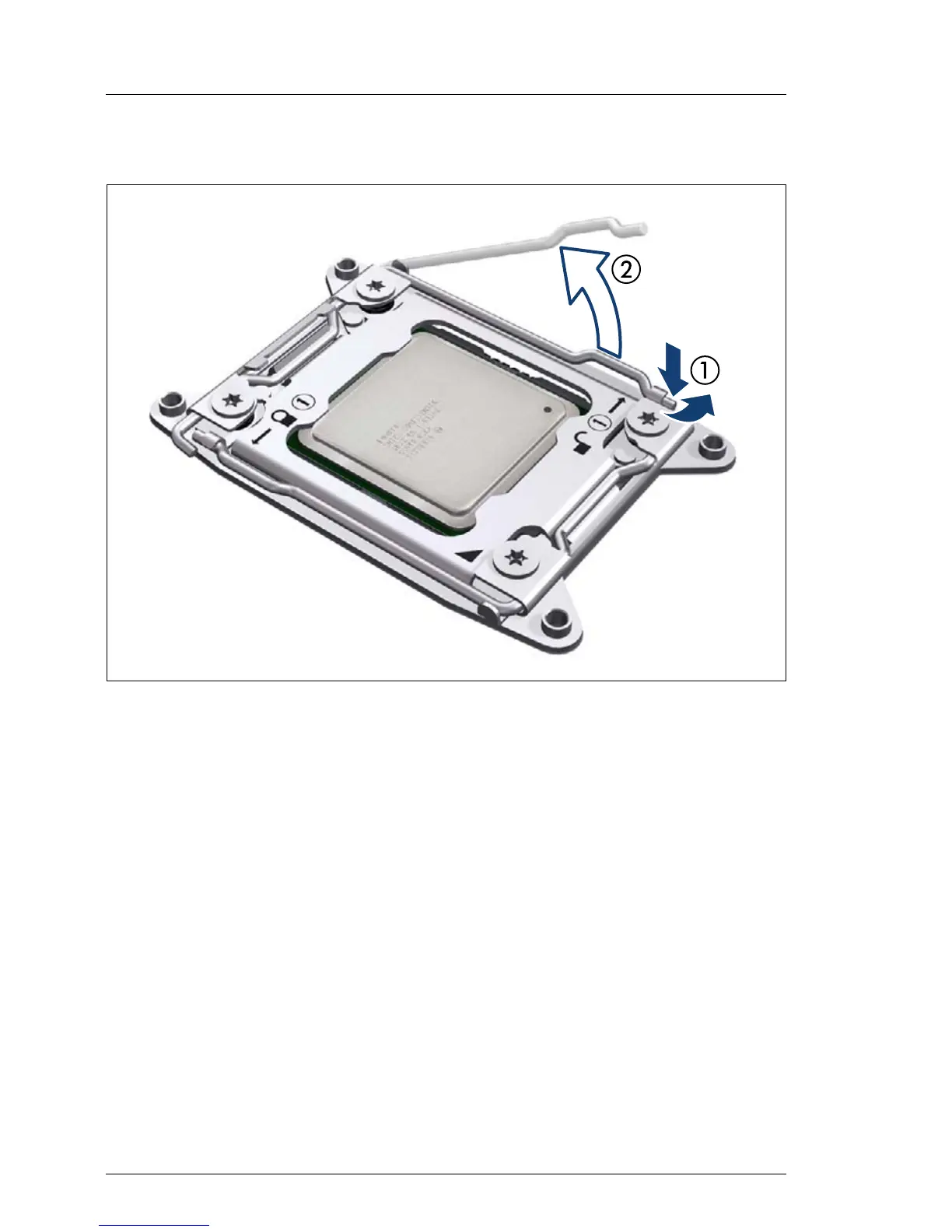

Figure 147: Opening socket release lever 1
Ê Unlatch the socket release lever marked Open 1st by pushing it down and
away from the socket (1).
Ê The socket release lever will slightly lift up (2).
