RX300 S8
Upgrade and Maintenance Manual 461
Conversion configurations
15.3.5 Configuration 4 to configuration 7

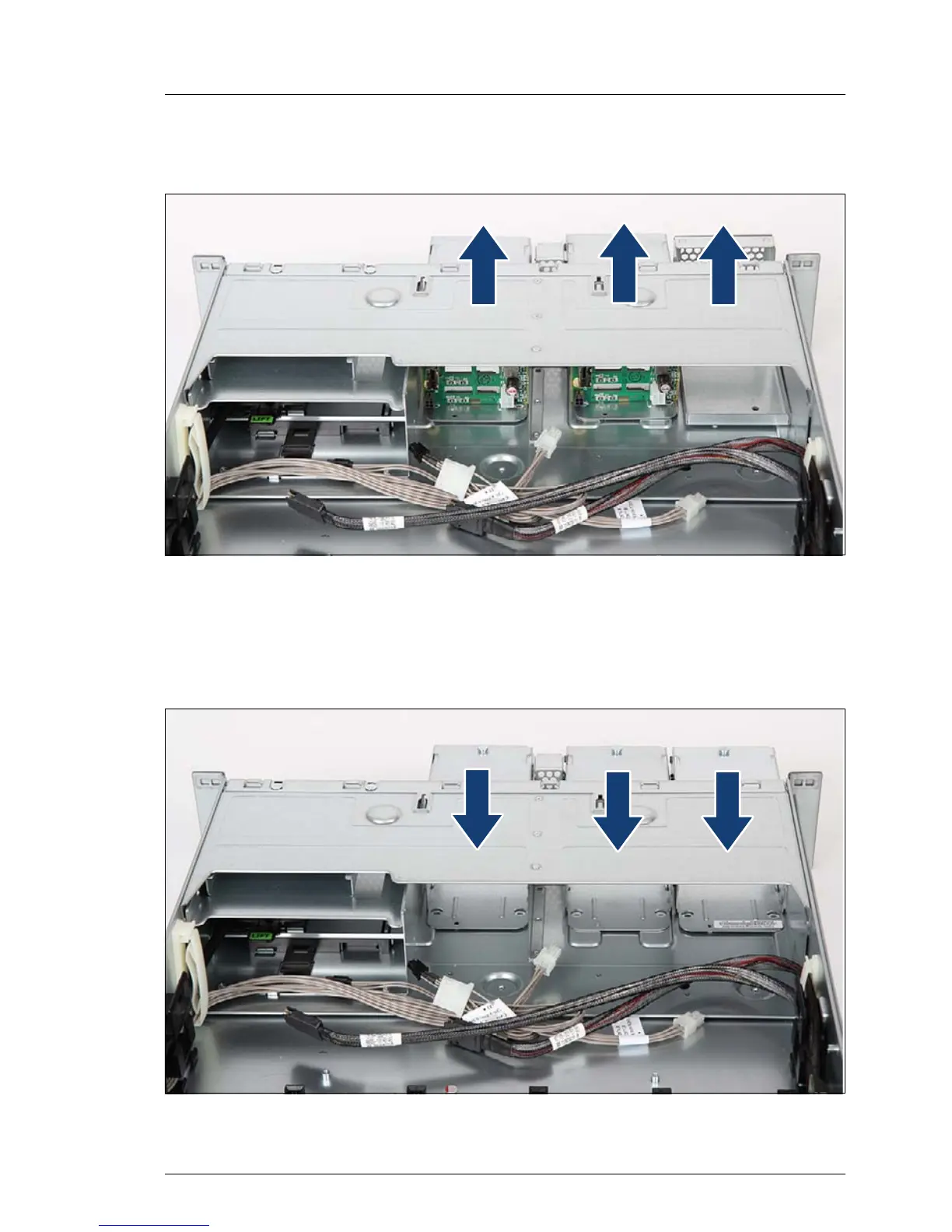

Figure 318: Removing the HDD cages and 2.5-inch dummy cover
Ê Remove the HDD cage and the dummy cage.
Ê Remove the 4x 2.5-inch HDD backplanes from the HDD cages see section
"Removing the 4x 2.5-inch SAS HDD backplane" on page 150.
Figure 319: Installing the HDD cages
