RX300 S8
Upgrade and Maintenance Manual 133
Hard disk drives / solid state drives

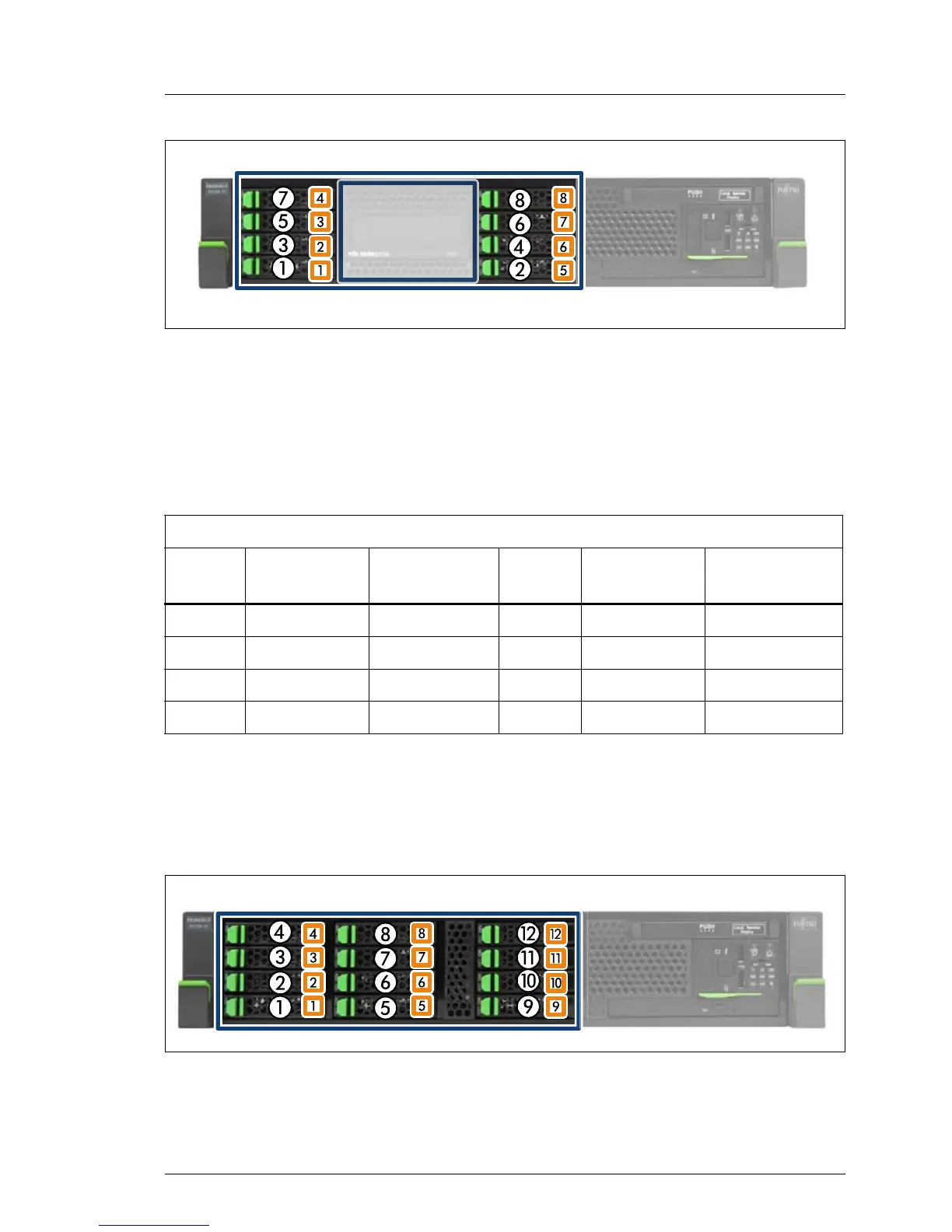

Figure 41: 2.5-inch HDD / SSD mounting order configuration 5
7.3.1.4 HDD / SSD naming scheme for 8x 2.5-inch HDD / SSD
configurations
I The HDD / SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
7.3.1.5 HDD / SSD mounting order for 12x 2.5-inch HDD / SSD
configuration
Figure 42: 2.5-inch HDD / SSD mounting order configuration 7
2.5-inch HDDs / SSDs
HDD
RAID
Manager #
Channel HDD
RAID
Manager #
Channel
1 [0] 12[4] 2
3 [1] 14[5] 2
5 [2] 16[6] 2
7 [3] 18[7] 2
Table 7: HDD naming scheme
